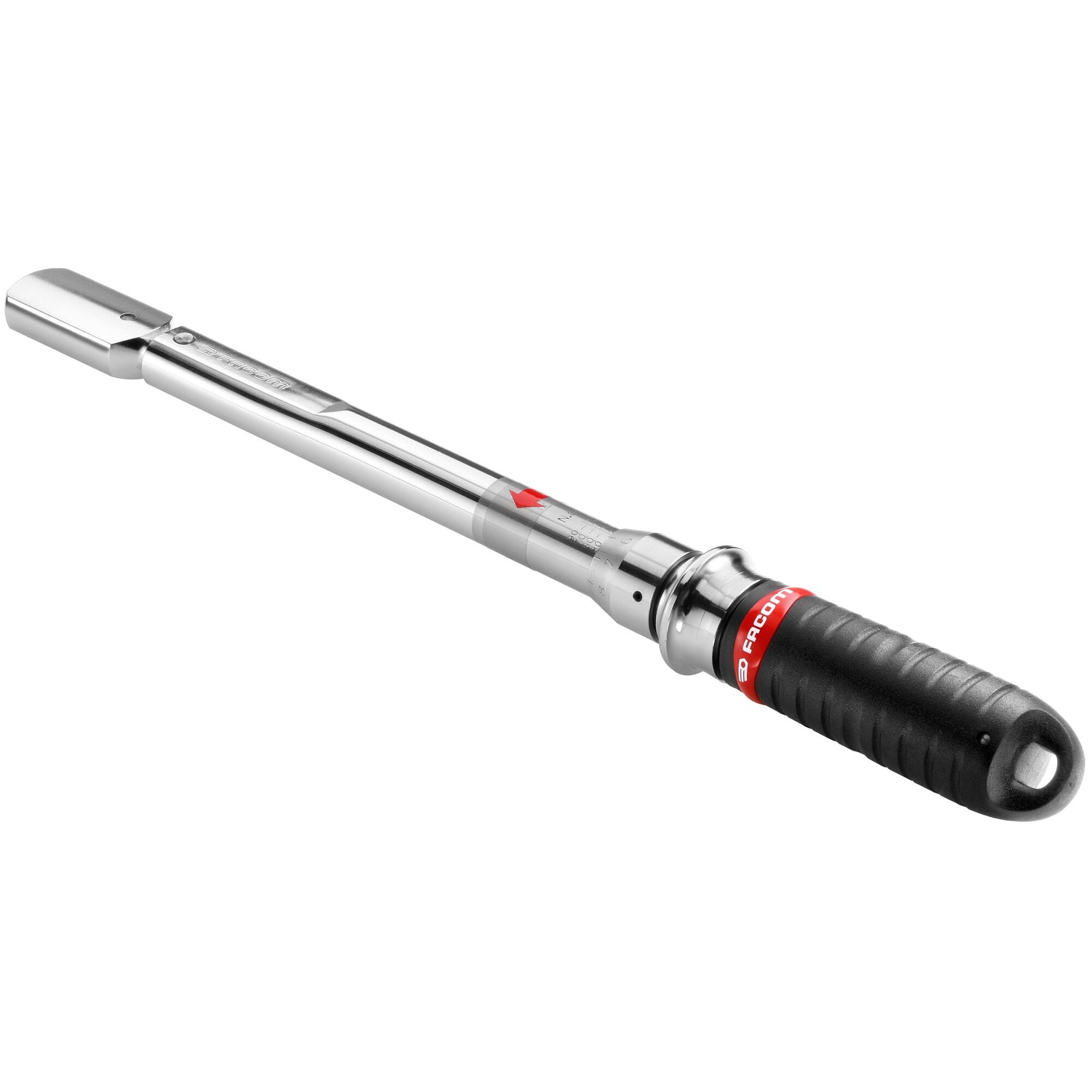

S.306R - Click wrenches with attachment 20 x 7 mm

SKU: S.306-100R - Barcode: 3148517326071

FACTORY ACCURACY: ± 2%.
RELIABILITY: Mechanism proven to make 50,000 cycles (wrenches --> 200 N.m).
ACCESSORIES: Use possible with accessories attachment 20 x 7 mm.
VERSATILITY: One-way wrenches usable for unscrewing by reversing the bits.
CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.
STORAGE: Wrenches supplied in plastic protection tube.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

FACTORY ACCURACY: ± 2%.
RELIABILITY: Mechanism proven to make 50,000 cycles (wrenches --> 200 N.m).
ACCESSORIES: Use possible with accessories attachment 20 x 7 mm.
VERSATILITY: One-way wrenches usable for unscrewing by reversing the bits.
CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.
STORAGE: Wrenches supplied in plastic protection tube.

Specifications

Attachement20 x 7
AttachéNon
Certificat d’étalonnage fourniOui
EmballageBoîtier en plastique
GripBi-matière
Longueur du produit420 mm
Numéro d’identification individuel fourniOui
Précision sens horaire sortie d'usine+/-2%
Poids net1 Kg
Type de clé mécaniqueCliquer

Spare parts

HANDLE TUBE - 778-001
LOCKING RING - 778-003
RING - 778-004
HANDLE - 778-005
CLIP - 778-006
SPACER - 778-306-100S
PIN - S.206-100-03
ROCKER - S.206-100-550
ROCKER - S.206-100-560
ROCKER - S.206-100-570
ROCKER - S.206-100-580
CONTROL SCREW - S.305D16SE
SPRING - S.313-16
VERNIER - S.313-18
THRUST PLATE - S.325D4

Documents

User Guide
