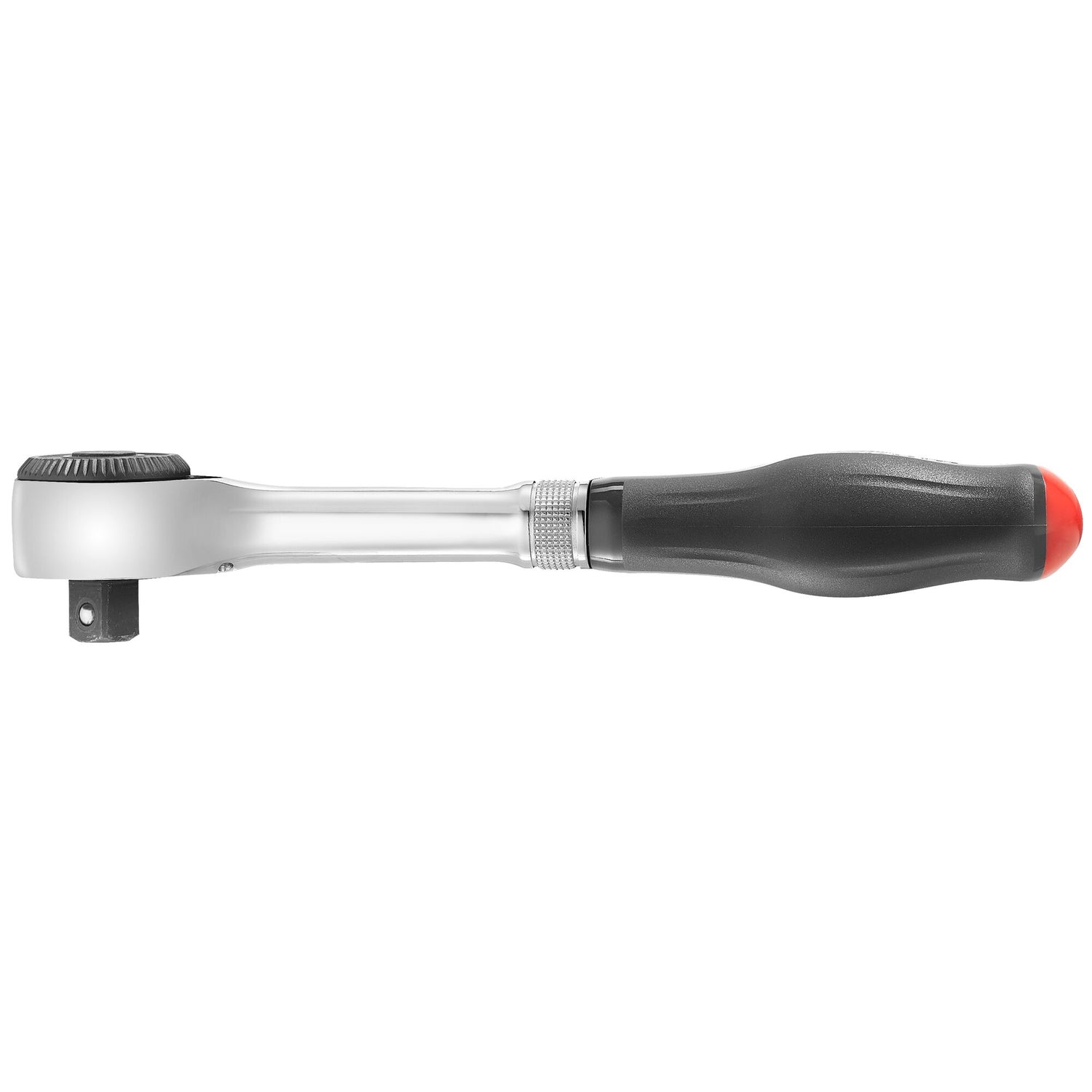

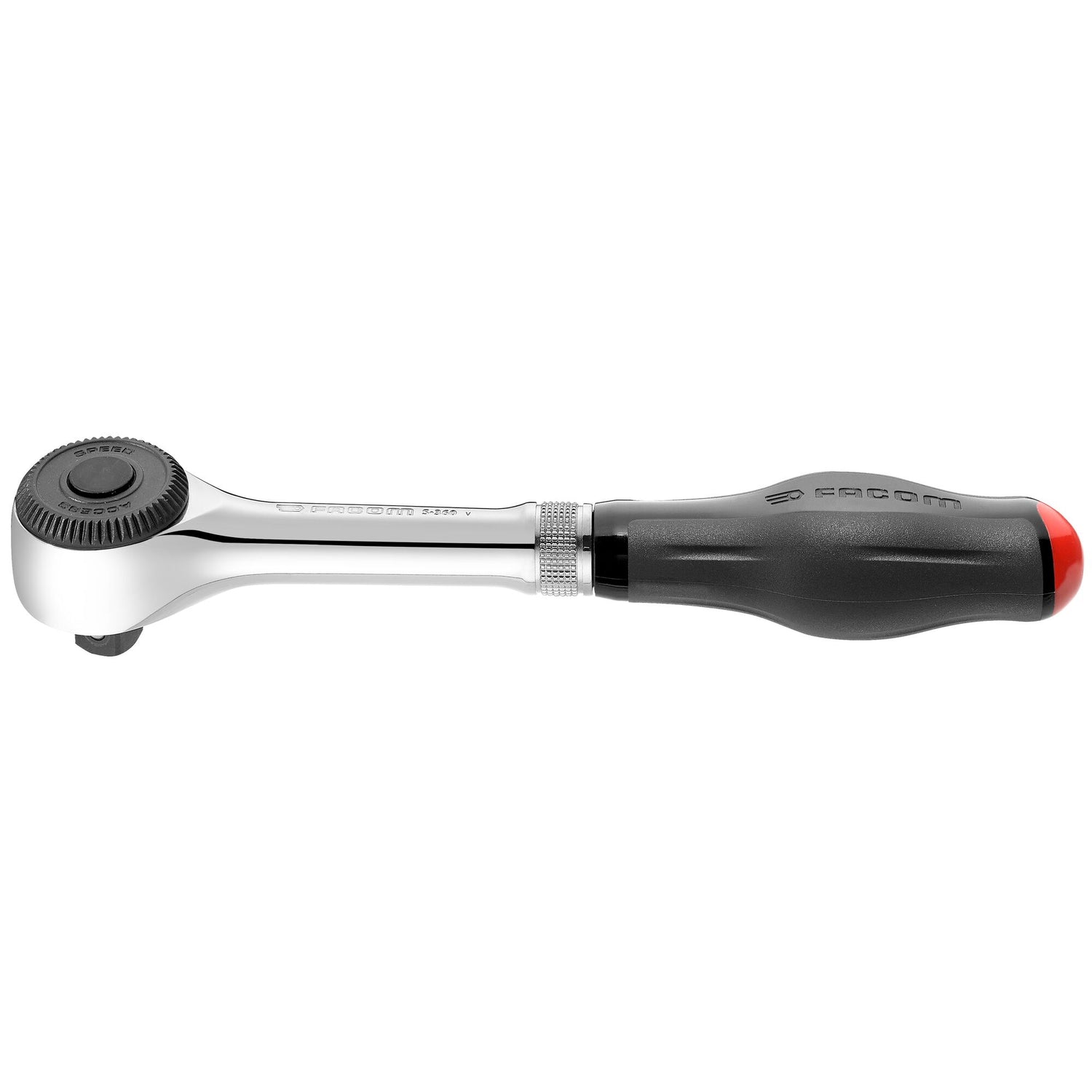

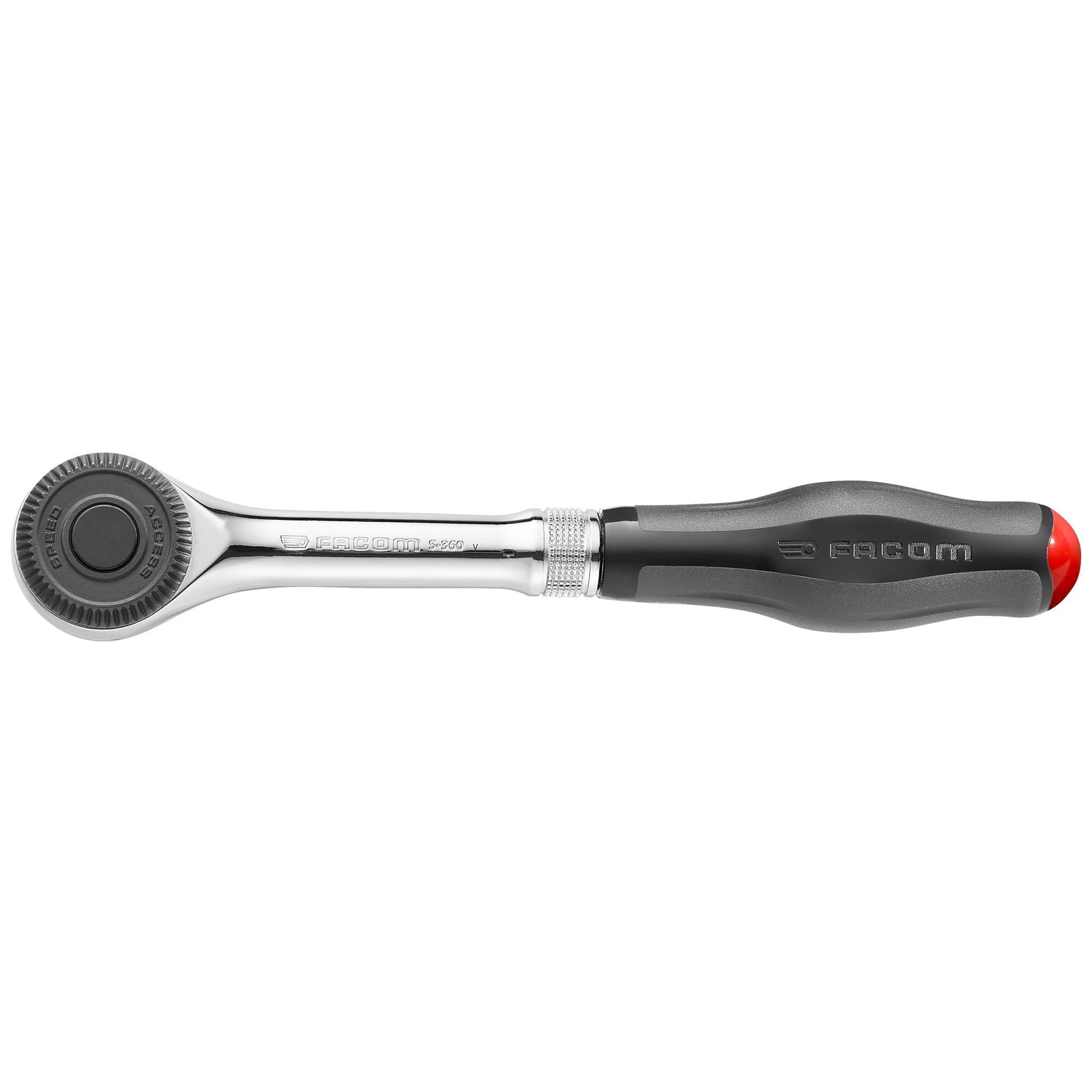

S.360 - 1/2" twist handle ratchets

SKU: S.360  -  Barcode: 3148519063554
  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries.

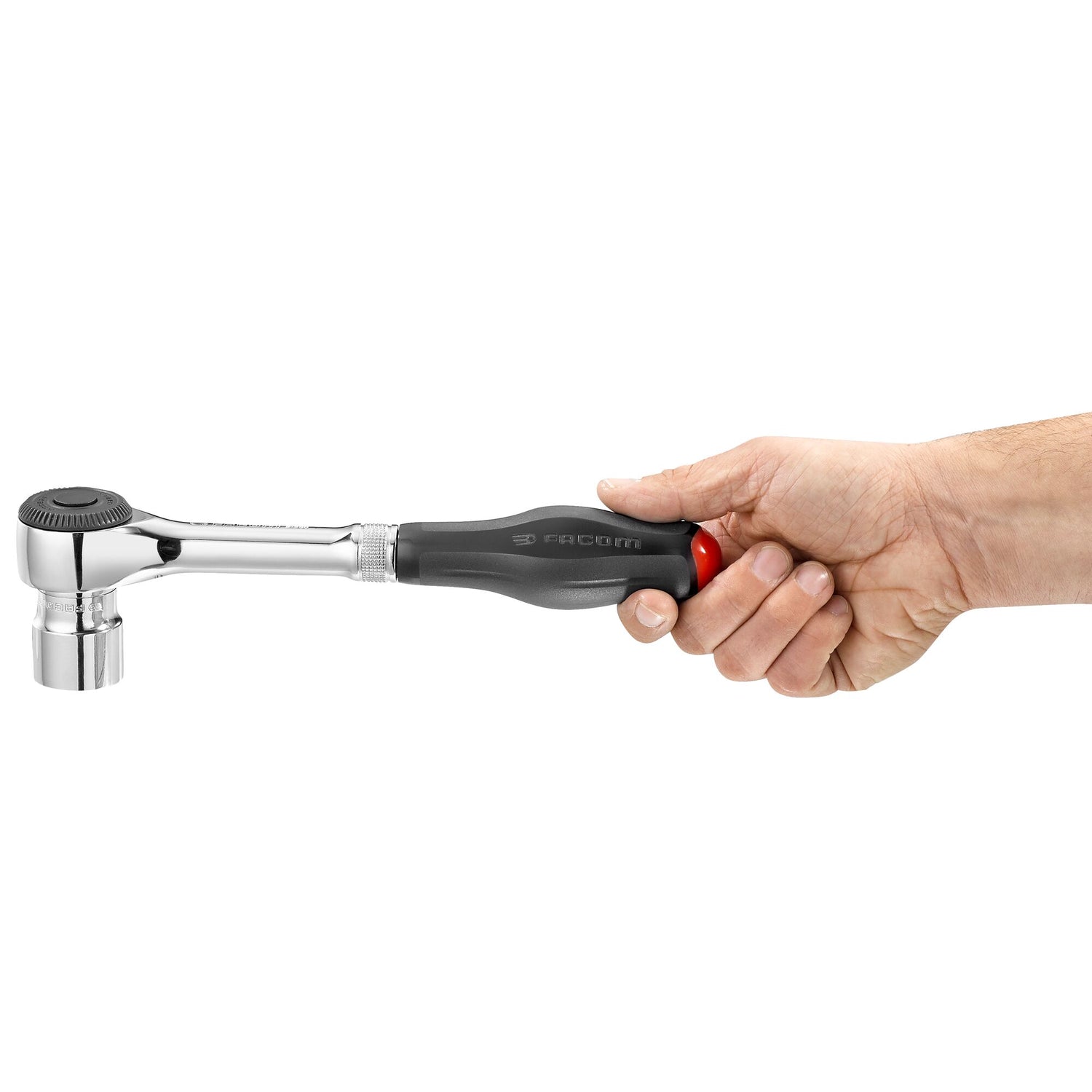

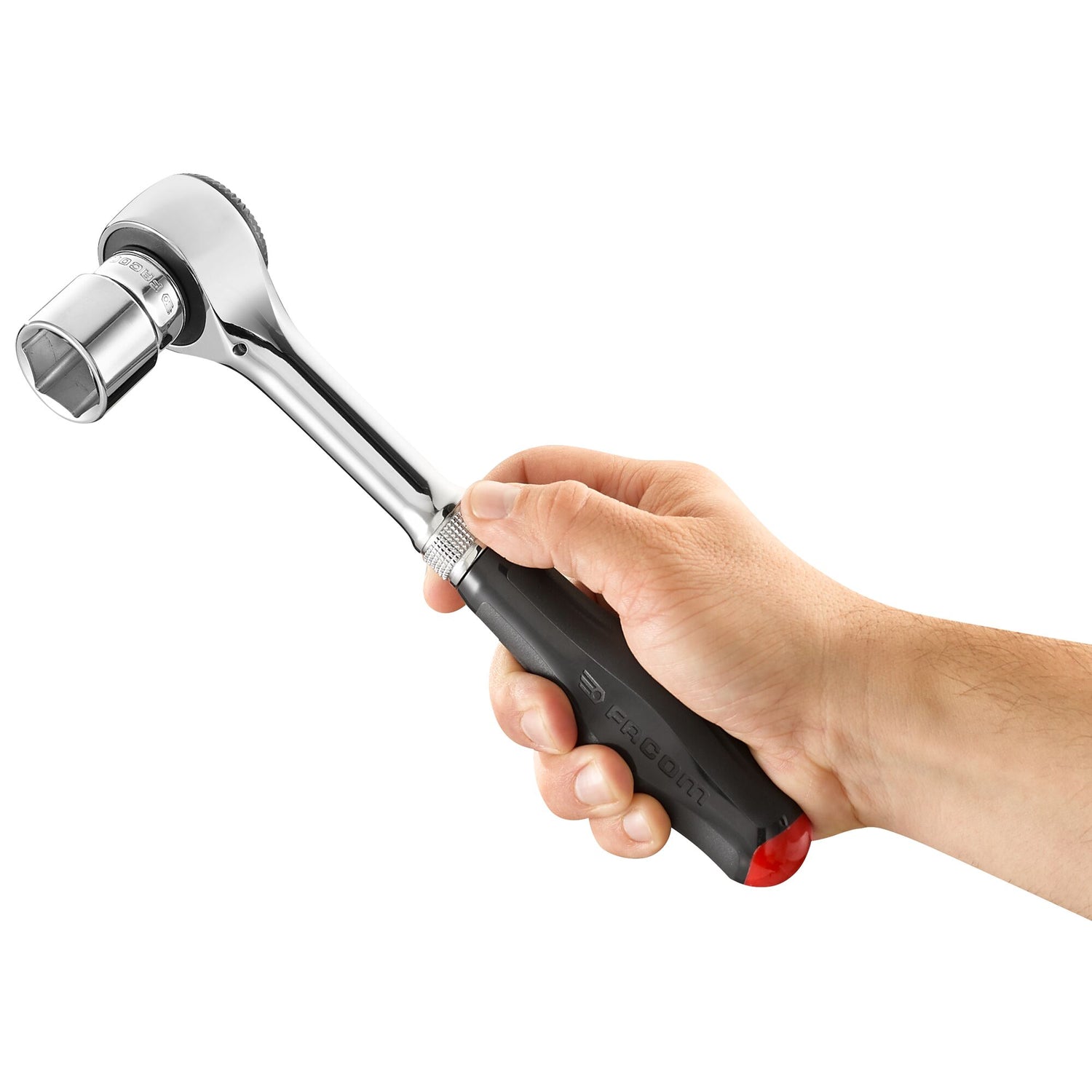

  • TWIST HANDLE - Rotating mechanism which allows to drive the socket by rotating the handle. Ideal for narrow spaces.

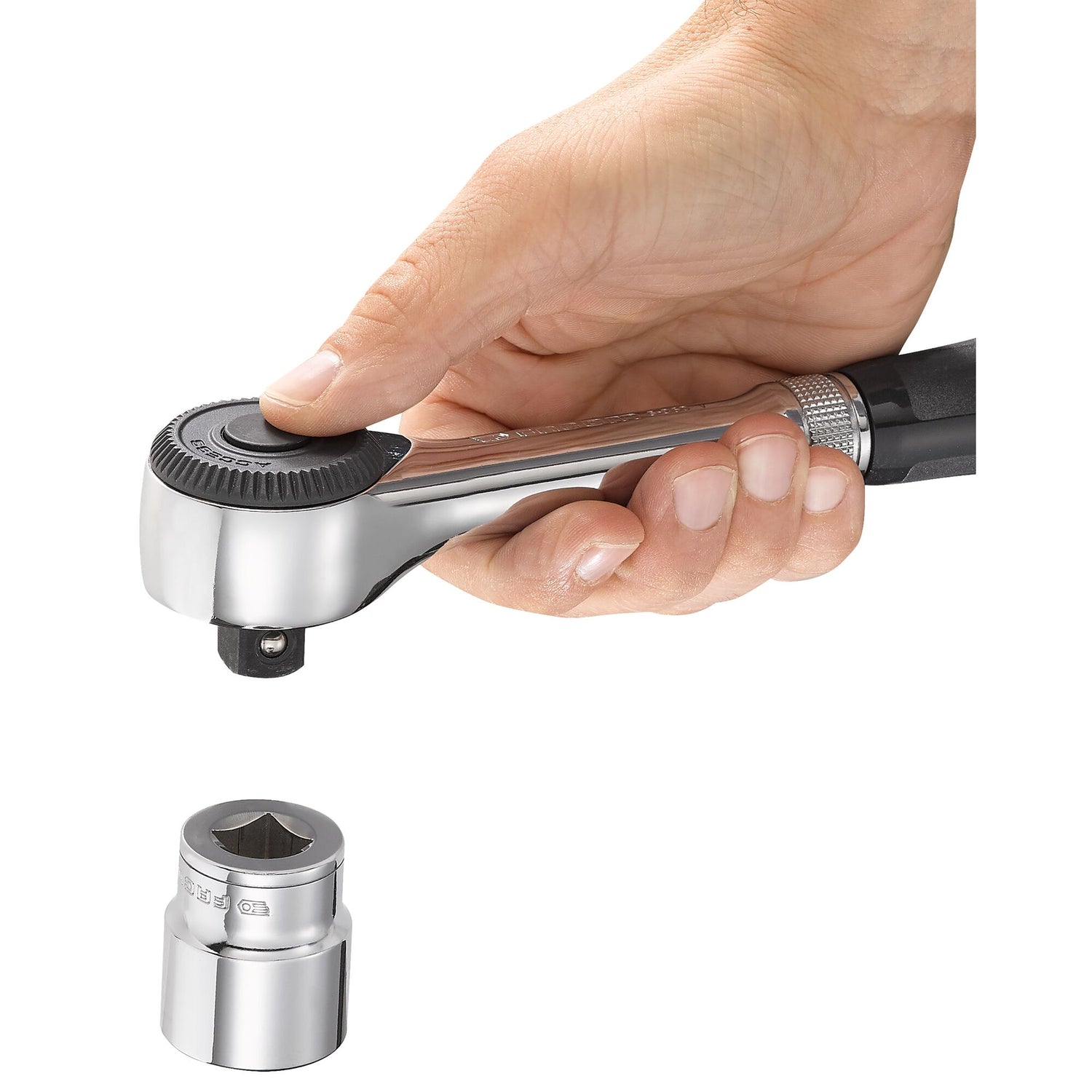

  • PUSH-LOCK - Safety Locking System to hold the socket and release it with the button.
  • 6° ARC SWING - 60 tooth mechanism - Reversing by rotating cap.
  • KNURLING - Special body shape to turn the ratchet with fingers.
  • HANDLE - Bi-material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.10, ASME B107.110, DIN 3122, ISO 3315, NF ISO 3315

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries.
  • TWIST HANDLE - Rotating mechanism which allows to drive the socket by rotating the handle. Ideal for narrow spaces.
  • PUSH-LOCK - Safety Locking System to hold the socket and release it with the button.
  • 6° ARC SWING - 60 tooth mechanism - Reversing by rotating cap.
  • KNURLING - Special body shape to turn the ratchet with fingers.
  • HANDLE - Bi-material elastomer grip: high resistance to abrasion and the most severe workshop solvents: SP95, SP98, diesel fuel, acetone, brake fluid, Skydrol, Jet Oil, kerosene.

Specifications
  • Angle de reprise3 deg
  • AccrochableNon
  • AntidéflagrantNon
  • AttachéNon
  • Clé à chocsNon
  • Diamètre45 mm
  • ExtensibleNon
  • FinitionVernis chromé
  • FlexibleNon
  • Hauteur du produit41 mm
  • Isolation 1000VNon
  • InversionCapuchon
  • Longueur du produit251 mm
  • MancheOui
  • Matériau de la poignéeBi-matière
  • Poignée extensibleNon
  • Pour visseuse à chocNon
  • Poids net570 g
  • Système de verrouillage des douillesOui
  • Taille du carré conducteur1/2 in
  • Tête flexibleNon
  • Trou de suspensionNon
  • Tête rotativeNon
  • Tête pivotanteNon

Technical drawing and dimensions

D1 (mm)H (mm)L1 (mm)L (mm)
S.360 [S.360] 1/2 in. Twist Handle Ratchet 37.0041.00230.00251.00
S.360PB [S.360PB] 1/2" twist handle ratchet 37.0041.00230.00251.00

Documents

S.360 - 1/2" twist handle ratchets

References available

  • [S.360] 1/2 in. Twist Handle Ratchet
  • [S.360PB] 1/2" twist handle ratchet

Lieu de fabrication

N/A

Normes & certifications

ASME B107.10, ASME B107.110, DIN 3122, ISO 3315, NF ISO 3315

Période de garantie

Lifetime warranty on the tool (replacement)
