Shop presses support

SKU: W.400SUP - Barcode: 3662424144714

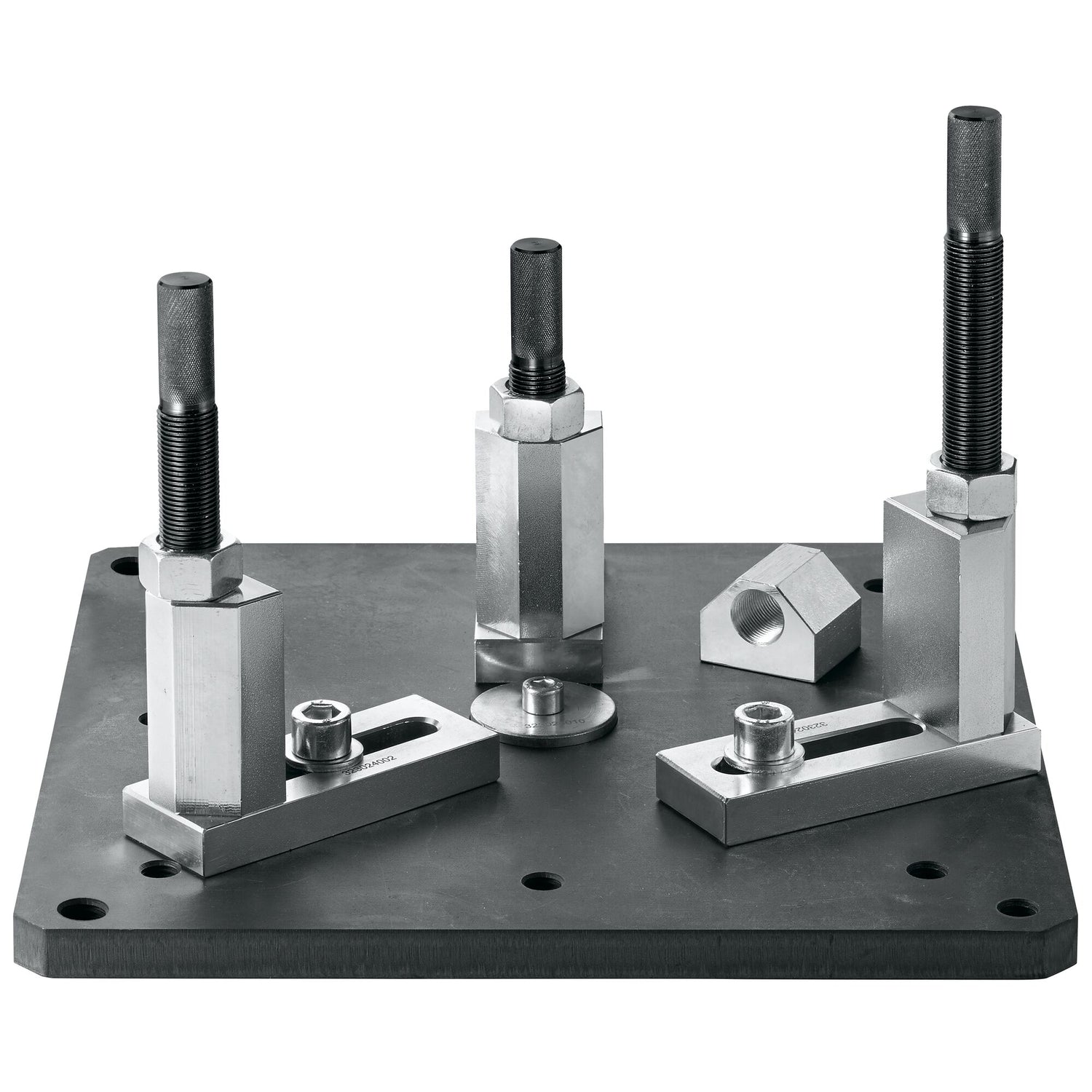

Universally adjustable press support for use in standard workshop presses.
Puts an end to dangerous wobbling structures and minimizes risks of injuries.
The special layout of the mounting threads and the height-adjustable long and short support included in the scope of delivery ensure precise support.
Centering attachments for fixing the support bolts in a hole on the component.
Can also be used in conjunction with standard puller and pressure sleeve sets – centering via the receiving thread on the center of the press table support.
For universal use for the removal and installation of wheel bearings, bushings, sleeves, silent bearings etc.
2 adjustable barriers on the base of the support prevent unwanted slippage on the press table.
height max : 220 mm.
height min :145 mm.
L x W : 300 x 300 mm.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

Universally adjustable press support for use in standard workshop presses.
Puts an end to dangerous wobbling structures and minimizes risks of injuries.
The special layout of the mounting threads and the height-adjustable long and short support included in the scope of delivery ensure precise support.
Centering attachments for fixing the support bolts in a hole on the component.
Can also be used in conjunction with standard puller and pressure sleeve sets – centering via the receiving thread on the center of the press table support.
For universal use for the removal and installation of wheel bearings, bushings, sleeves, silent bearings etc.
2 adjustable barriers on the base of the support prevent unwanted slippage on the press table.
height max : 220 mm.
height min :145 mm.
L x W : 300 x 300 mm.

Spare parts

BASE - 1004763-64
HOLDER SA - 1004763-65
BRACKET - 1004763-66
SCREW - 1004763-67
SCREW - 1004763-68
WASHER - 1004763-69
WASHER - 1004763-70
BOLT - 1004763-71
BOLT - 1004763-72
NUT - 1004763-73
BOLT - 1004763-74
BRACKET - 1004763-75
POST - 1004763-76
BOLT - 1004763-77
