Facom - The Art of Precision since 1918.
1 2

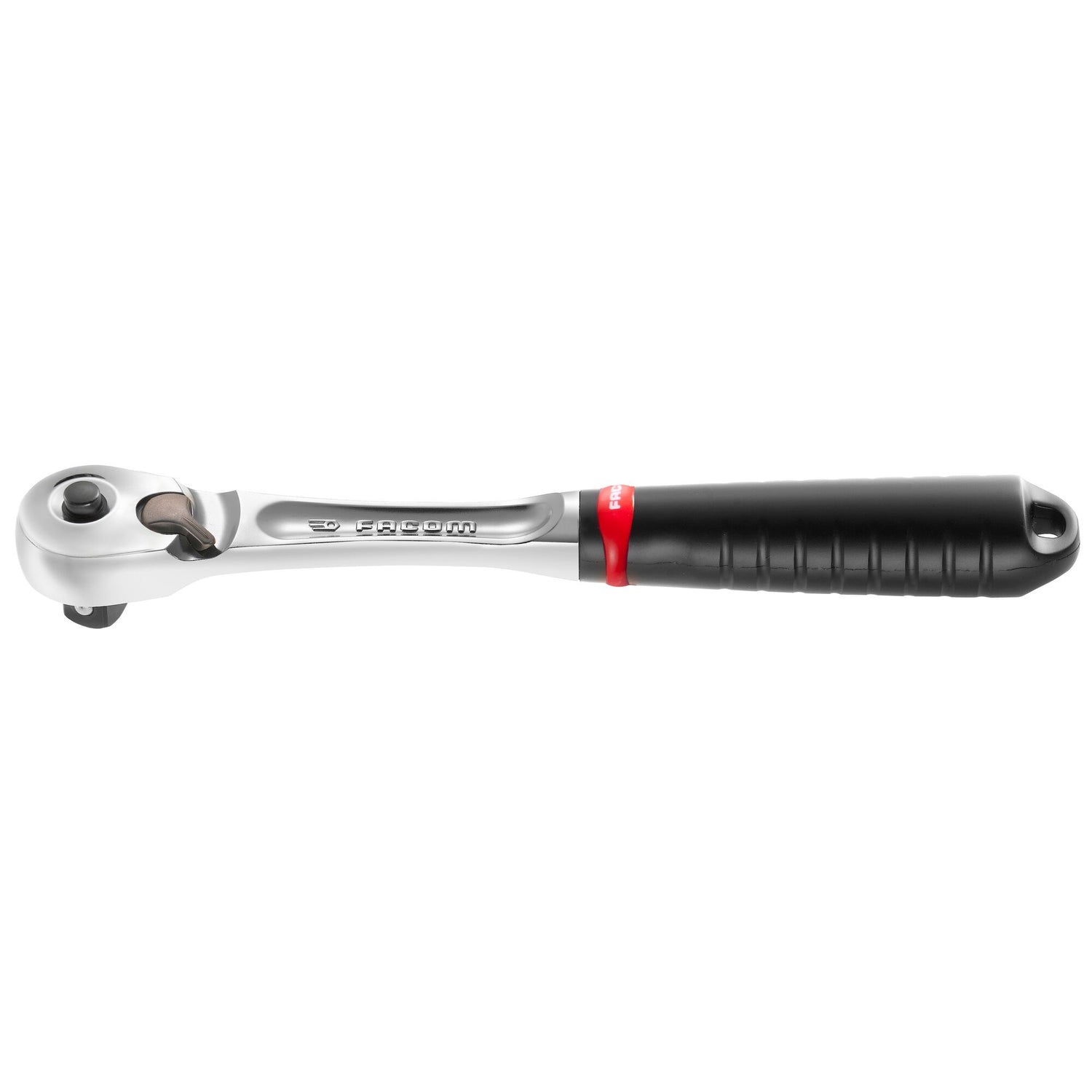

SL - 1/2" pear-head ratchets push-lock

SKU: SL.161  -  Barcode: 3148519036725
  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries, Mechanism sealed to industrial dust (IP51 Rated).
  • PUSH-LOCK - Safety Locking System to hold the socket and release it with the button.
  • 5° ARC SWING - 72 tooth mechanism - Reversing by Lever.
  • PALM CONTROL SYSTEM - Allows the operator to press down on the head avoiding risk of accidental reverse.
  • HANGING HOLE - Hole in the handle for strapping when working in high places.
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

ASME B107.10, ASME B107.110, DIN 3122, ISO 3315, NF ISO 3315

Click here to learn more about the different standards and certifications.

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • HIGH PERFORMANCE - Designed to meet the highest standards of the industries, Mechanism sealed to industrial dust (IP51 Rated).
  • PUSH-LOCK - Safety Locking System to hold the socket and release it with the button.
  • 5° ARC SWING - 72 tooth mechanism - Reversing by Lever.
  • PALM CONTROL SYSTEM - Allows the operator to press down on the head avoiding risk of accidental reverse.
  • HANGING HOLE - Hole in the handle for strapping when working in high places.

Specifications
  • Angle de reprise5 deg
  • AccrochableOui
  • AntidéflagrantNon
  • AttachéNon
  • Clé à chocsNon
  • Diamètre37 mm
  • ExtensibleNon
  • FinitionVernis chromé
  • FlexibleNon
  • Hauteur du produit37 mm
  • Isolation 1000VNon
  • InversionLevier
  • Longueur du produit262 mm
  • MancheOui
  • Matériau de la poignéeBi-matière
  • Nombre de dents72
  • Poignée extensibleNon
  • Pour visseuse à chocNon
  • Poids net0.445 Kg
  • Système de verrouillage des douillesNon
  • Taille du carré conducteur1/2 in
  • Tête flexibleNon
  • Trou de suspensionOui
  • Tête pivotanteNon

Technical drawing and dimensions

D1 (mm)H (mm)L1 (mm)L (mm)
SL.161 [SL.161] 1/2 in. Pear-Head Ratchet 32.0037.00245.00262.00
SL.161PB [SL.161PB] 1/2 in. Pear-Head Ratchet 32.0037.00245.00262.00
SL.171 [SL.171] 1/2 in. Pear-Head Push-Lock Ratchet 32.0037.00245.00262.00
SL.171PB [SL.171PB] 1/2" pear-head ratchet push-lock 32.0037.00245.00262.00

Documents

SL - 1/2" pear-head ratchets push-lock

References available

  • [SL.161] 1/2 in. Pear-Head Ratchet
  • [SL.161PB] 1/2 in. Pear-Head Ratchet
  • [SL.171] 1/2 in. Pear-Head Push-Lock Ratchet
  • [SL.171PB] 1/2" pear-head ratchet push-lock

Lieu de fabrication

N/A

Normes & certifications

ASME B107.10, ASME B107.110, DIN 3122, ISO 3315, NF ISO 3315

Période de garantie

Lifetime warranty on the tool (replacement)
