SLS.G - Heat Shrink Sheath With Metal "D" Ring With Safety Lock System

SKU: SLS.G13 - Barcode: 3662424052903

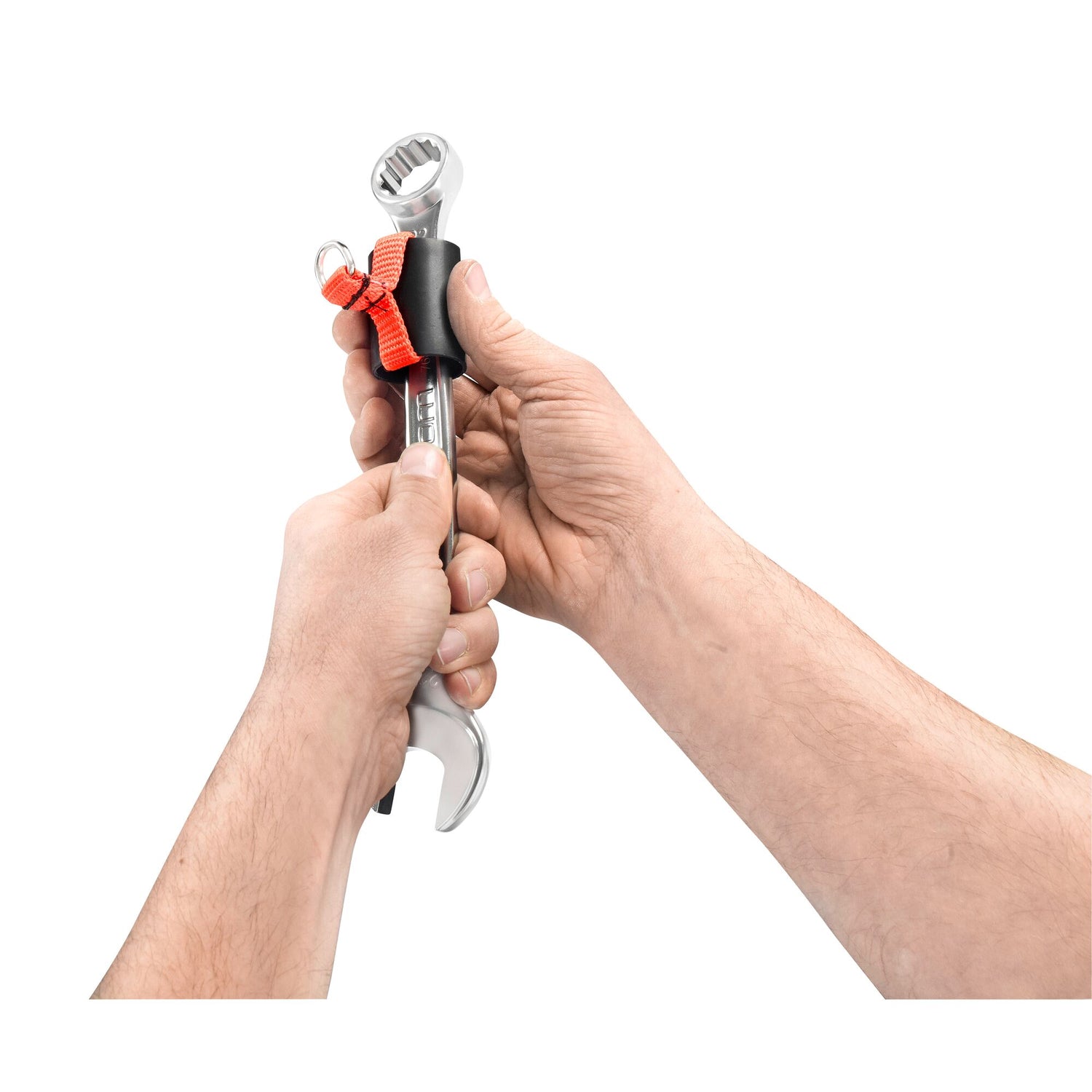

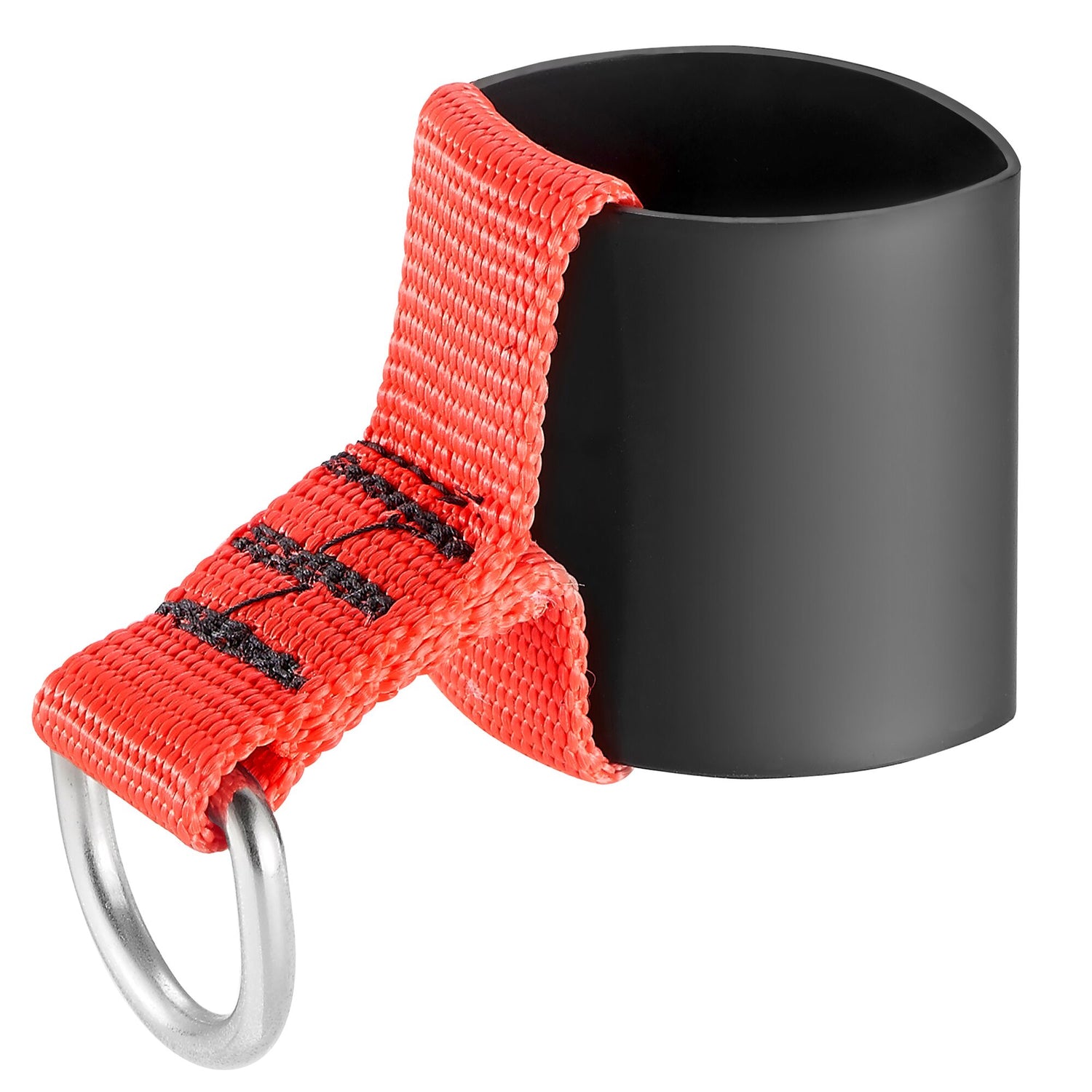

Shrink tubing fitted with a strap and a metal "D" ring - SLS. This solution allows you to add an attachment point to all types of products and make them compatible with lanyards and carabiners from the facom sls range. Examples: special tools, pens, sprays etc.The strap surrounds the shrink tubing for strength and maximum security for all.
Fabric resistant to common solvents.
Sheath equipped with an adhesive which becomes liquid with the heat during the retraction of the sheath. optimum temperature of withdrawal: between 150 and 300 ° depending on the thickness and diameter of the sheath.Excellent adhesion on most substrates: crude steel, chrome or phosphate, aluminum, wood, plastic, ...Precautions: - Clean and degrease the product that will receive the shrink tubing. - Select the correct diameter of shrink-hose according to the allocation table. - Identify a location where the sheath will not harm ergonomics. If possible, choose a location where the sheath can not escape once retracted.- Respect the maximum weight recommended. - Heat the sheath about 3cm away with a standard heat gun Facom E.2015. Be careful not to burn the strap.- Allow to cool for 5 minutes to obtain optimum adhesion of the glue. - Check the bond. - Check the equipment periodically.
6.5 to 13mm.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

Shrink tubing fitted with a strap and a metal "D" ring - SLS. This solution allows you to add an attachment point to all types of products and make them compatible with lanyards and carabiners from the facom sls range. Examples: special tools, pens, sprays etc.The strap surrounds the shrink tubing for strength and maximum security for all.
Fabric resistant to common solvents.
Sheath equipped with an adhesive which becomes liquid with the heat during the retraction of the sheath. optimum temperature of withdrawal: between 150 and 300 ° depending on the thickness and diameter of the sheath.Excellent adhesion on most substrates: crude steel, chrome or phosphate, aluminum, wood, plastic, ...Precautions: - Clean and degrease the product that will receive the shrink tubing. - Select the correct diameter of shrink-hose according to the allocation table. - Identify a location where the sheath will not harm ergonomics. If possible, choose a location where the sheath can not escape once retracted.- Respect the maximum weight recommended. - Heat the sheath about 3cm away with a standard heat gun Facom E.2015. Be careful not to burn the strap.- Allow to cool for 5 minutes to obtain optimum adhesion of the glue. - Check the bond. - Check the equipment periodically.
6.5 to 13mm.

Specifications

Technical drawing and dimensions

		D max (mm)	H (mm)	L1 (mm)	L2 (mm)
SLS.G13	[SLS.G13] 6.5 to 13 mm Heat Shrink Sheath With Metal D-Ring, Safety Lock System	6.5 - 13	44.00	26.00	7.00
SLS.G19	[SLS.G19] 9mm - 19mm Heat Shrink Sheath With Metal "D" Ring Safety Lock System	9 - 19	50.00	36.00	8.00
SLS.G32	[SLS.G32] 14 to 32 mm Heat Shrink Sheath With Metal D-Ring, Safety Lock System	14 - 32	50.00	45.00	9.00
SLS.G45	[SLS.G45] 16 to 45 mm Heat Shrink Sheath With Metal D-Ring, Safety Lock System	16 - 45	50.00	62.00	12.00
SLS.G64	[SLS.G64] 38 to 64 mm Heat Shrink Sheath With Metal "D" Ring, Safety Lock System	38 - 64	50.00	88.00	16.00
SLS.G89	[SLS.G89] Heat Shrink Sheath with metal "D" ring 51 to 89 mm Safety Lock System	51 - 89	105.00	135.00	25.00

Documents
