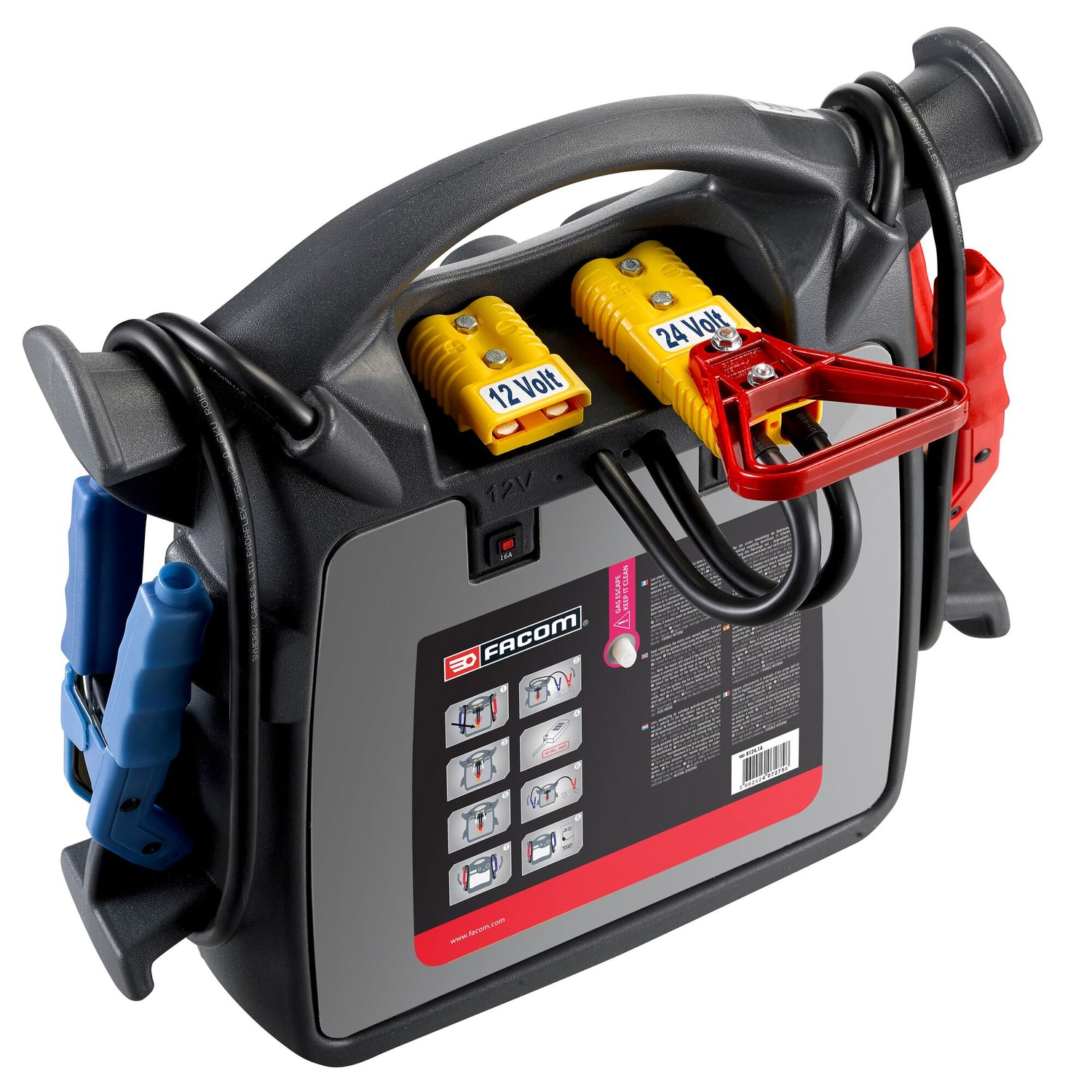

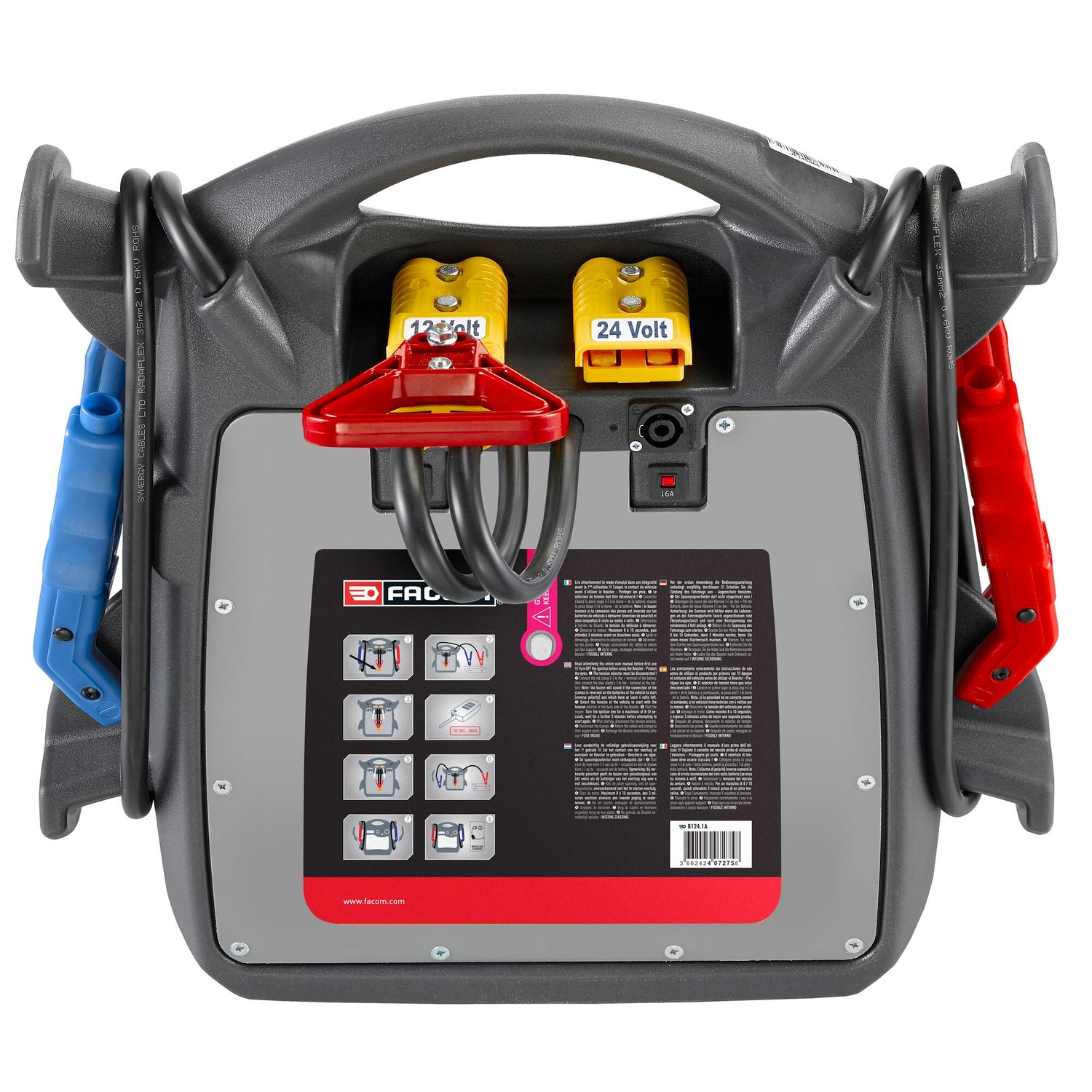

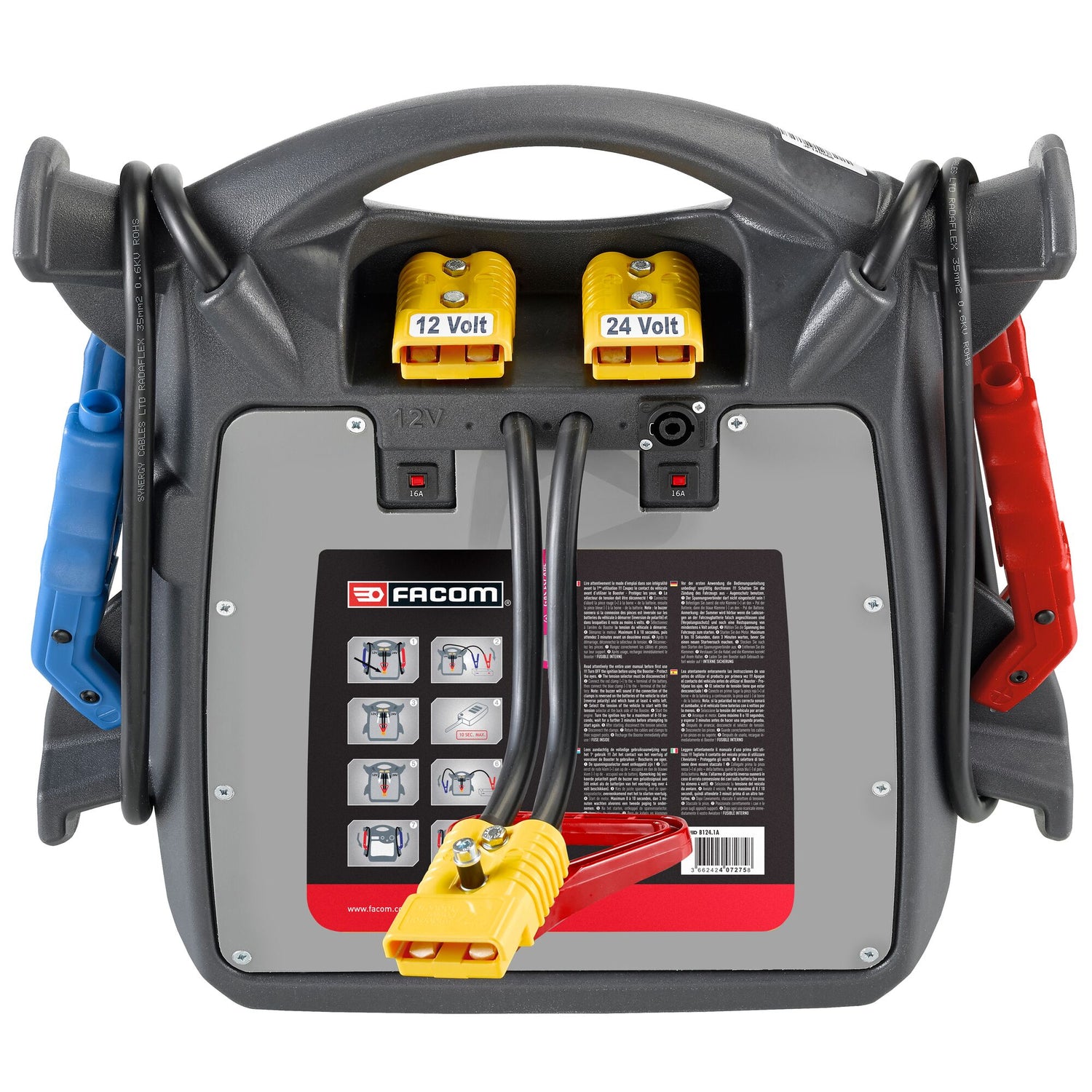

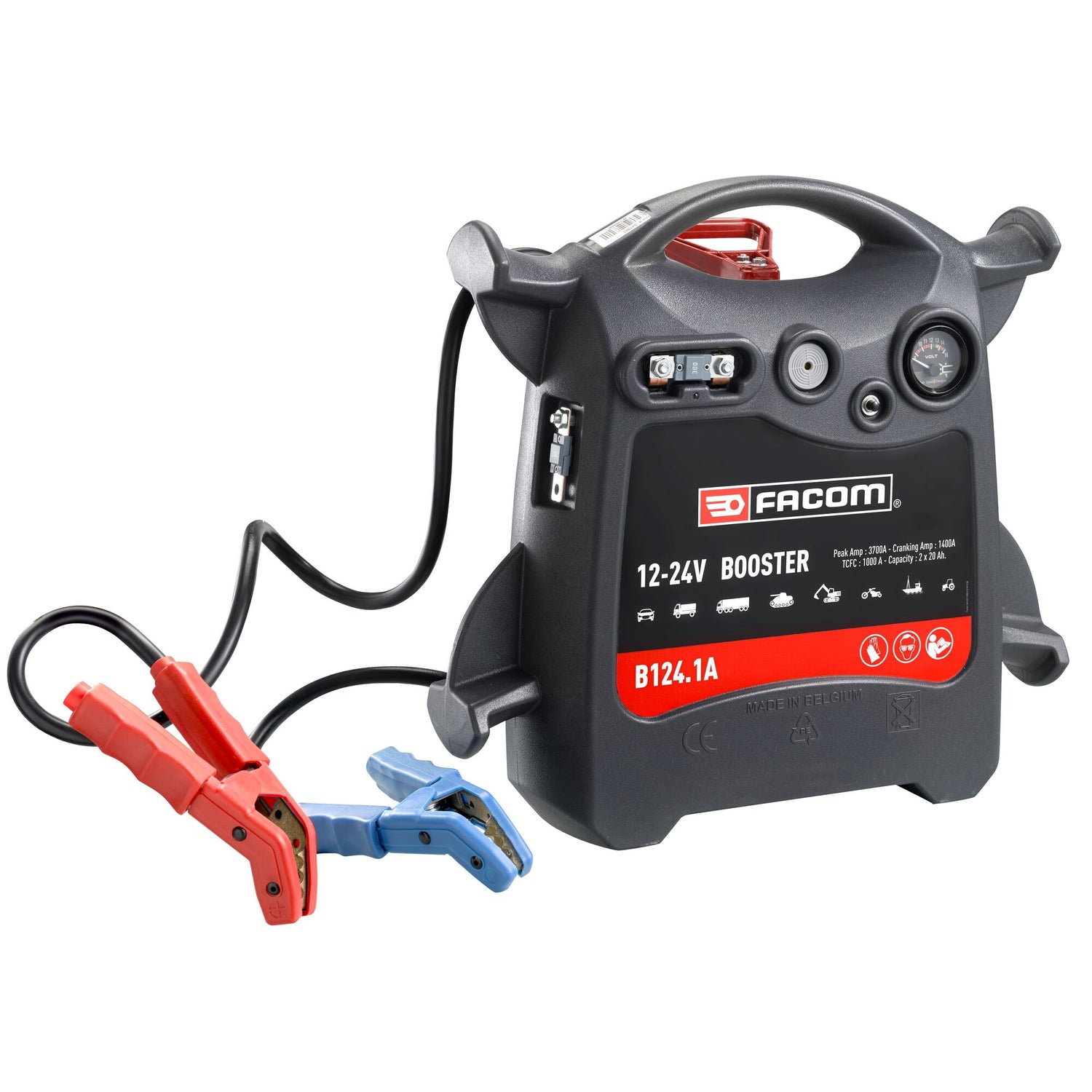

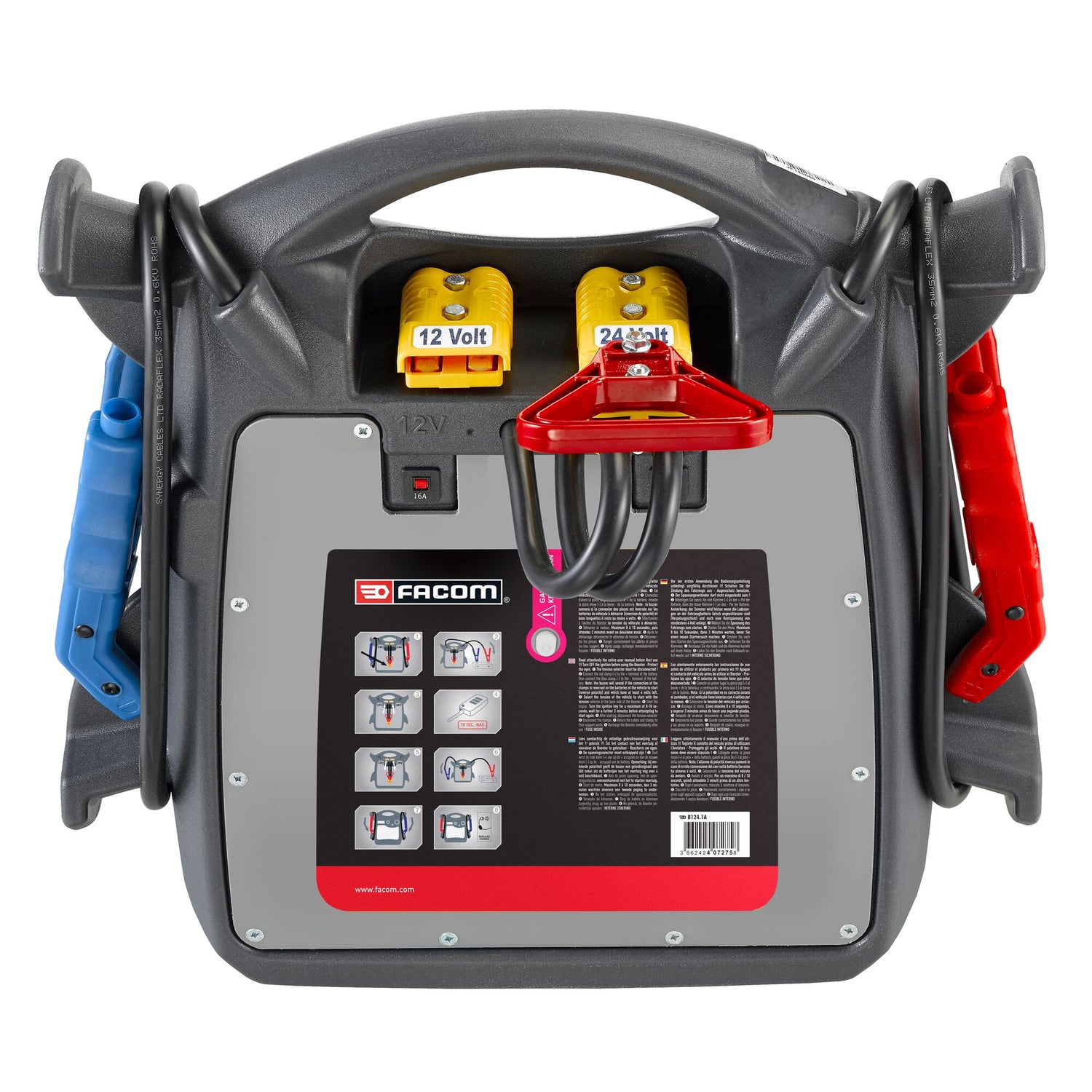

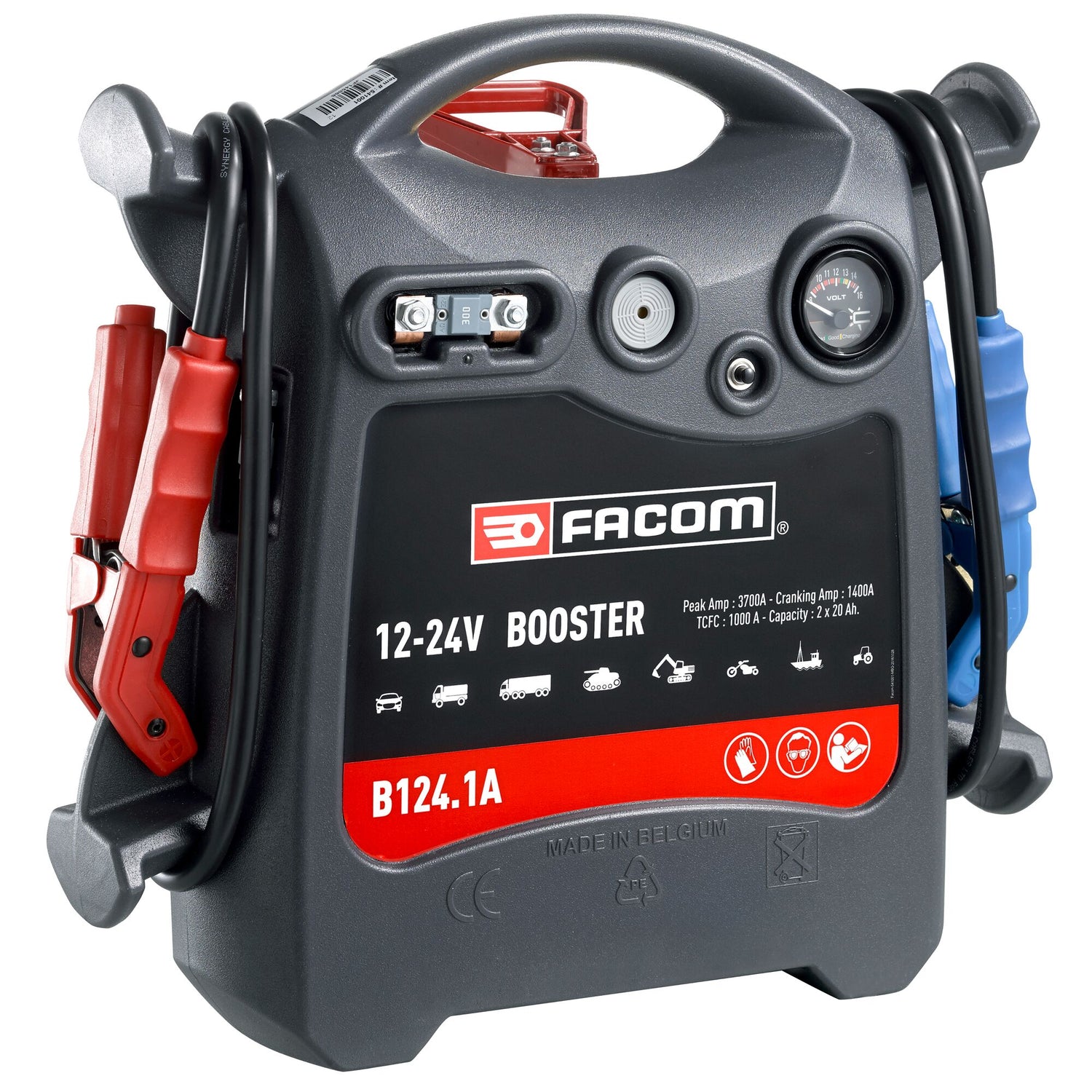

Starting booster, 12V - 24V

SKU: B124.1A - Barcode: 3662424072758

Starting booster.
Operating voltage 12V - 24V.
Power safety and reversed polarity alarm.
Voltage selection by power plug.
Capacity 2 X 20 Ah.
Sealed internal AGM battery.
Mac 'Peak' current: 3700A.
Max starting current: 1400A.
TCFC: 1000A.
Double insulation copper cables 35 mm² 1.55 m long.
Curved clamps 1000A.
Protection by 300A timed fuse.
Analog charge control voltmeter.
Automatic charger 4A.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

2011/65/EU (RoHS), 2012/19/EU (WEEE), 2014/30/EU (EMC), 2014/35/EU (LVD)

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Starting booster.
Operating voltage 12V - 24V.
Power safety and reversed polarity alarm.
Voltage selection by power plug.
Capacity 2 X 20 Ah.
Sealed internal AGM battery.
Mac 'Peak' current: 3700A.
Max starting current: 1400A.
TCFC: 1000A.
Double insulation copper cables 35 mm² 1.55 m long.
Curved clamps 1000A.
Protection by 300A timed fuse.
Analog charge control voltmeter.
Automatic charger 4A.

Specifications

Allume-cigare sécuriséNon
Booster de démarrageNon
Clips fournisPinces Kelvin
CourantNon
Nombre de pièces1
Outils à batterieNon
Prise d’alimentationOui
Poids net22.8 Kg
Protection par fusible à retardementOui
Sécurité de l’alimentation et alarme de polarité inverséeOui
Sélection d'outilsNon
Testeur de batterieNon
Voltmètre de contrôle de charge analogiqueOui
Voltage de la batterie24 V

Spare parts

FUSE - 1004730-03
GAUGE - 1004730-04
BUTTON - 1004730-05
BATTERY - 1004730-08
FUSE - 1004730-10
TESTER - 1004730-99
CLAMP SA - 1004733-21
CLAMP SA - 1004733-22
BUZZER - 1004733-23
LED - 1004733-24
PLUG - 1004733-25
HANDLE - 1004733-26
CONNECTOR FEMALE - 1004733-27
CHARGER - 1004733-28
CONNECTOR MALE - 1004737-17

Documents

User Guide
