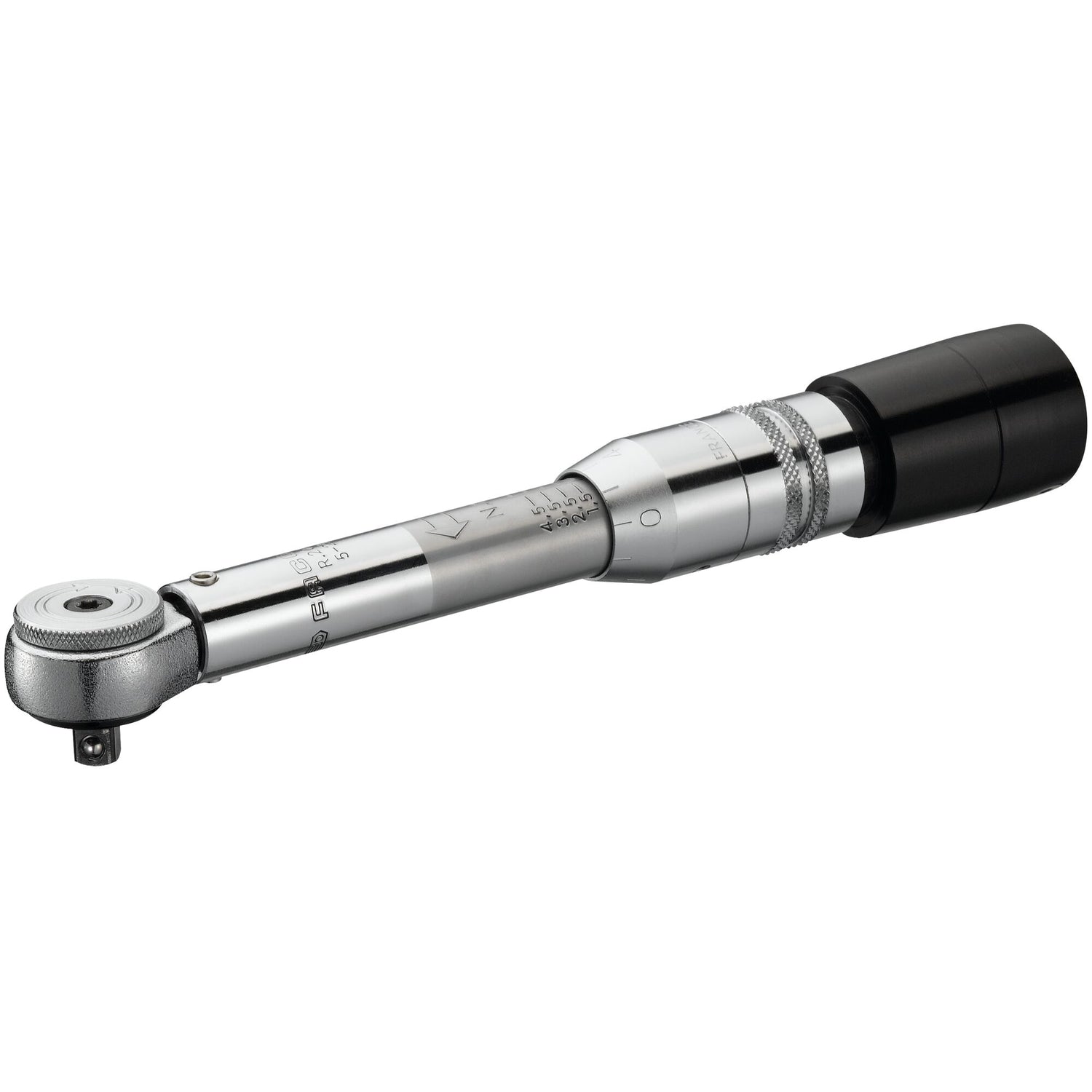

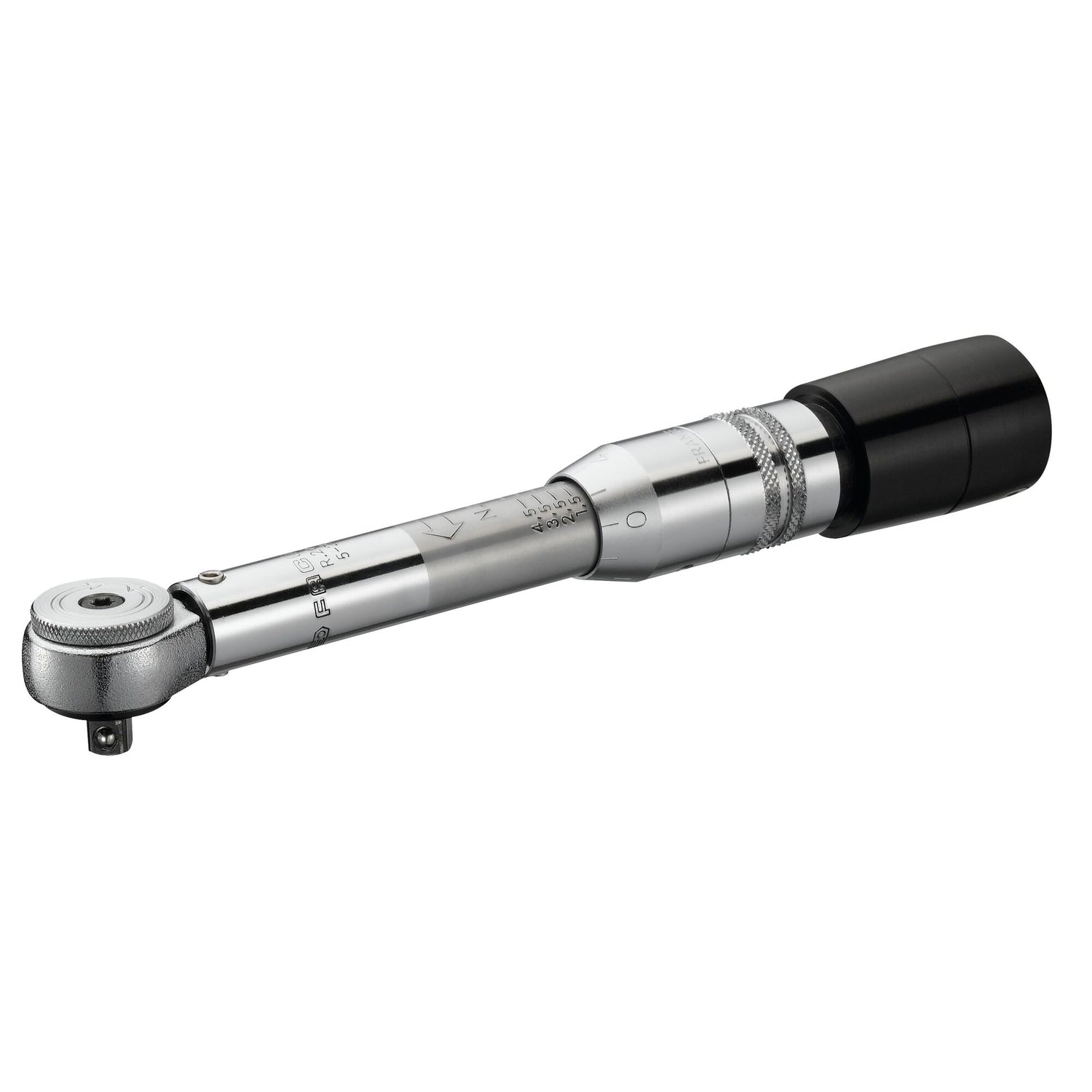

Torque Wrench with Ratchet 5Nm

SKU: R.306-5 - Barcode: 3148518092135

FACTORY ACCURACY: ± 2%.
RELIABILITY: Reliability of mechanism 50 000 cycles.
ACCESSIBILITY: Compact wrench for confined access.
DESIGN: Ratchet with 72 teeth (5° increment) for use with sockets.
VERSATILITY: One-way wrench.
CERTIFICATION: Numbered wrench supplied with ISO 6789 calibration certificate.
STORAGE: Supplied in a box.

Full product description

References available Reference comparison

Product variants

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

FACTORY ACCURACY: ± 2%.
RELIABILITY: Reliability of mechanism 50 000 cycles.
ACCESSIBILITY: Compact wrench for confined access.
DESIGN: Ratchet with 72 teeth (5° increment) for use with sockets.
VERSATILITY: One-way wrench.
CERTIFICATION: Numbered wrench supplied with ISO 6789 calibration certificate.
STORAGE: Supplied in a box.

Specifications

Angle de reprise5 deg
AttachéNon
Certificat d’étalonnage fourniOui
ConnectivitéN/A
EmballageBoîte
Longueur du produit197 mm
MémoireNon
Numéro d’identification individuel fourniOui
Nombre de dents du cliquet72
Précision sens horaire sortie d'usine+/-6%
Poids net0.3 Kg
Taille du carré conducteur1/4 in
Type de clé mécaniqueCliquer
Type de clés dynamométriques SmartCliquer

Spare parts

CAP - R.304D03
HANDLE - R.304D08
VERNIER - R.304D09
NUT - R.304D10
PIN - R.305C03
LOCKING RING - R.305D13
SPRING - R.305D15
INSERT - R.305D20
LABEL - RED ARROW - R.305D21

Documents

User Guide
