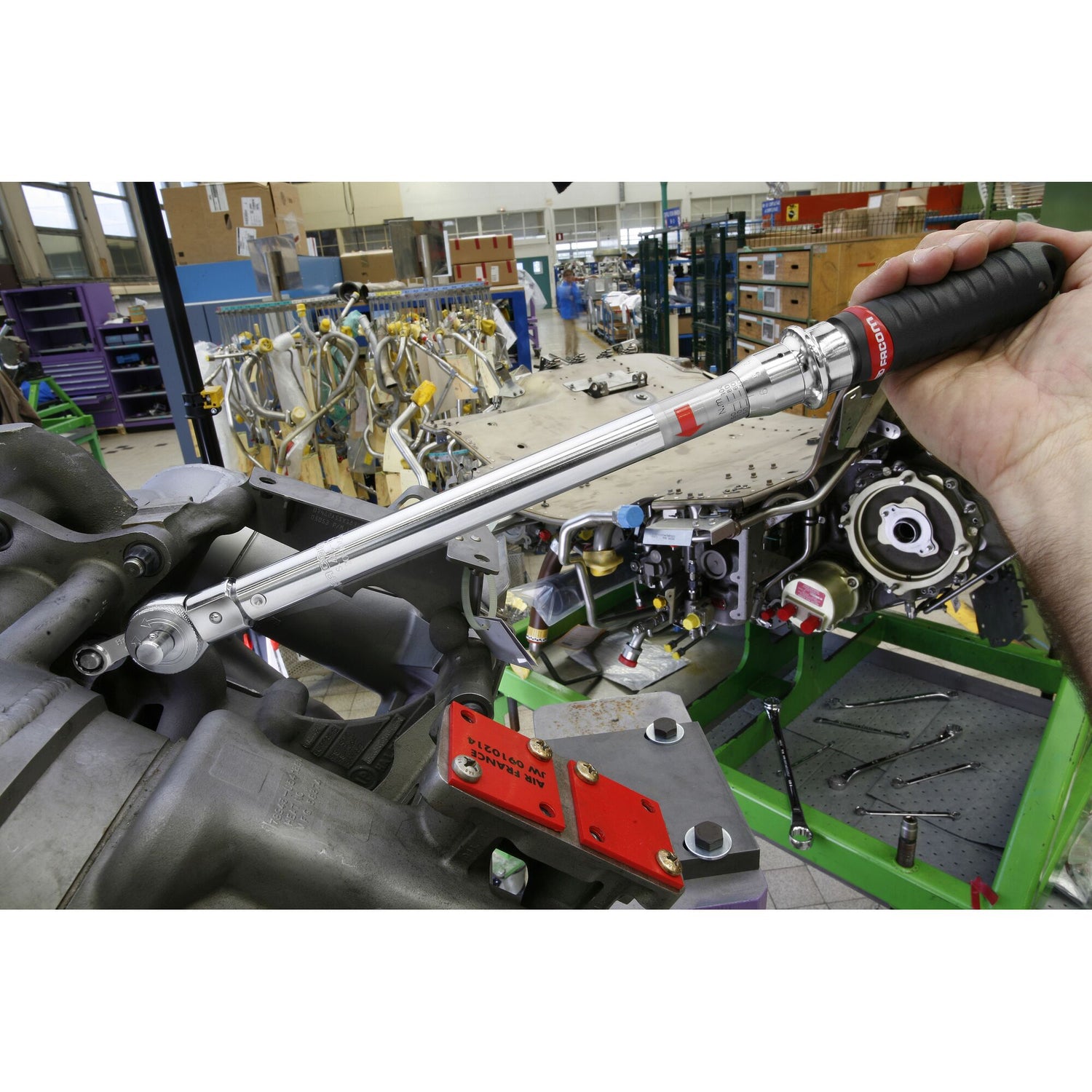

306A - Click Torque Wrench With Removable Ratchet

SKU: R.301A  -  Barcode: 3148510529516
  • FACTORY ACCURACY: ± 2% except: - R.306-25D - K.306A600 - K.306A1000 (± 4%). - R.304DA (± 6%).
  • RELIABILITY: 50 000 cycles (wrenches up to 200 N.m).
  • ACCESSORIES: End fitting: 9 x 12 or 14 x 18 mm. - Diameter: 30 mm.
  • BITS: One-way wrenches usable for unscrewing by reversing the bits.
  • CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.

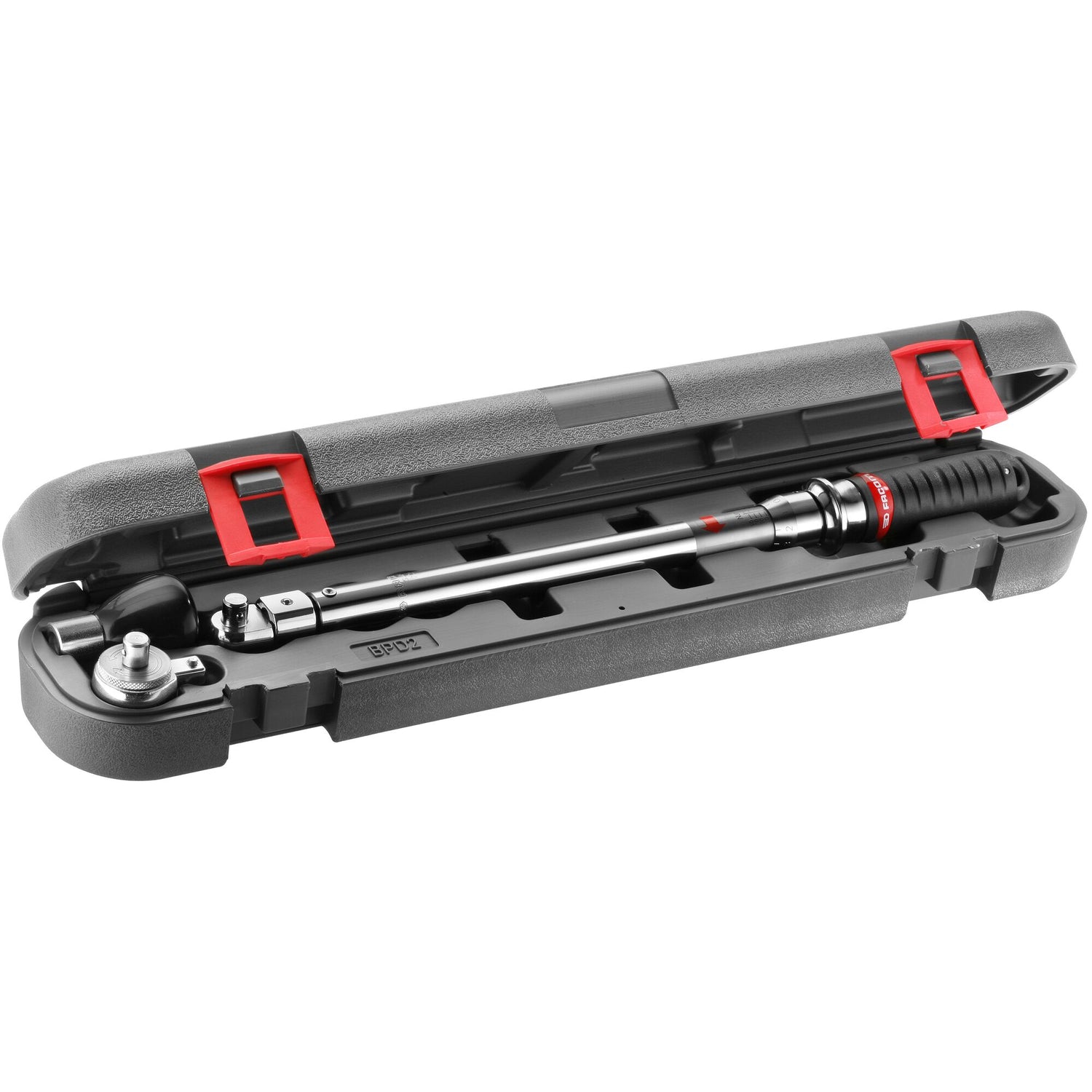

  • STORAGE: Supplied in a plastic box with ratchet and hinged handle (except Ref R.306A25 - R.301A - K.306A600 - K.306A1000).
Full product description
Reference comparison

Standards and certifications

This product complies with the following standards and certifications:

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Click here to learn more about the different standards and certifications.

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description
  • FACTORY ACCURACY: ± 2% except: - R.306-25D - K.306A600 - K.306A1000 (± 4%). - R.304DA (± 6%).
  • RELIABILITY: 50 000 cycles (wrenches up to 200 N.m).
  • ACCESSORIES: End fitting: 9 x 12 or 14 x 18 mm. - Diameter: 30 mm.
  • BITS: One-way wrenches usable for unscrewing by reversing the bits.
  • CERTIFICATION: Numbered wrenches supplied with ISO 6789 calibration certificate.
  • STORAGE: Supplied in a plastic box with ratchet and hinged handle (except Ref R.306A25 - R.301A - K.306A600 - K.306A1000).

Specifications
  • Application de contrôleNon
  • Attachement9 x 12
  • AttachéNon
  • Certificat d’étalonnage fourniOui
  • Indication de cibleCliquer
  • Longueur du produit185 mm
  • MémoireNon
  • Numéro d’identification individuel fourniOui
  • Précision sens horaire sortie d'usine+/-2%
  • Poids net0.29 Kg
  • Type de clé mécaniqueCliquer
  • Type de clés dynamométriques SmartCliquer

Spare parts

CAP - R.304D03
PUSHER - R.304D06
HANDLE - R.304D08
VERNIER - R.304D09
NUT - R.304D10
LOCKING RING - R.305D13
SPRING - R.305D15
INSERT - R.305D20

Documents
User Guide

306A - Click Torque Wrench With Removable Ratchet

References available

  • [R.301A] Click Torque Wrench, removable ratchet, range 1-5Nm
  • [R.306A25] Click Torque Wrench With Removable Ratchet, Range 5-25Nm
  • [J.306A50] Click Torque Wrench, drive 3/8, range 10-50Nm

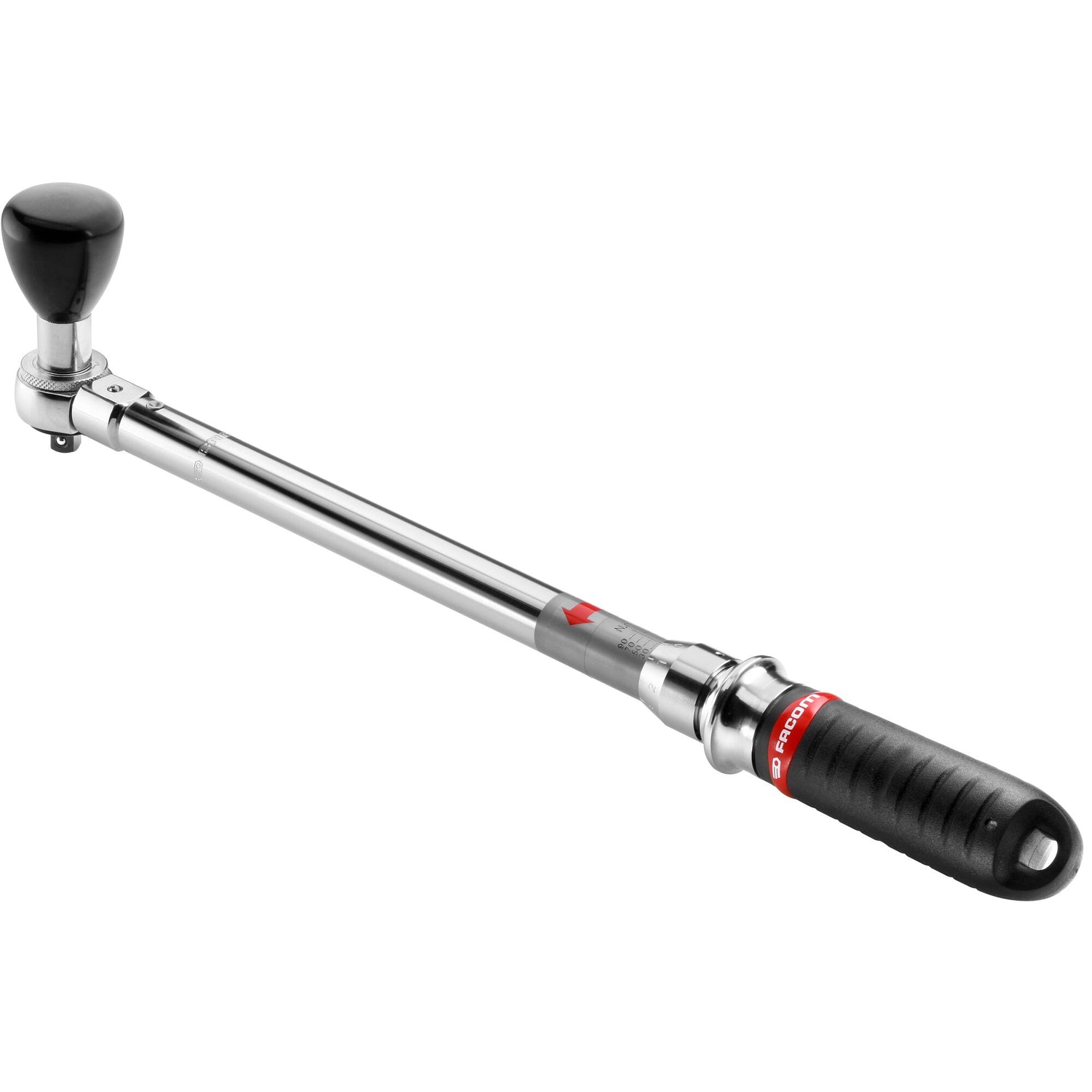

  • [J.306A100] Click Torque Wrench, drive 3/8, range 20-100Nm
  • [S.306A100] 20-100Nm Click Torque Wrench With Removable Ratchet
  • [S.306A200] Click Torque Wrench, Removable Ratchet, Range 40-200Nm
  • [S.306A350] Click Torqure Wrench, removable ratchet, range 70-350Nm
  • [K.306A600] Click Torque Wrench, Drive 1 in., Removable Ratchet, Range 120Nm-600Nm

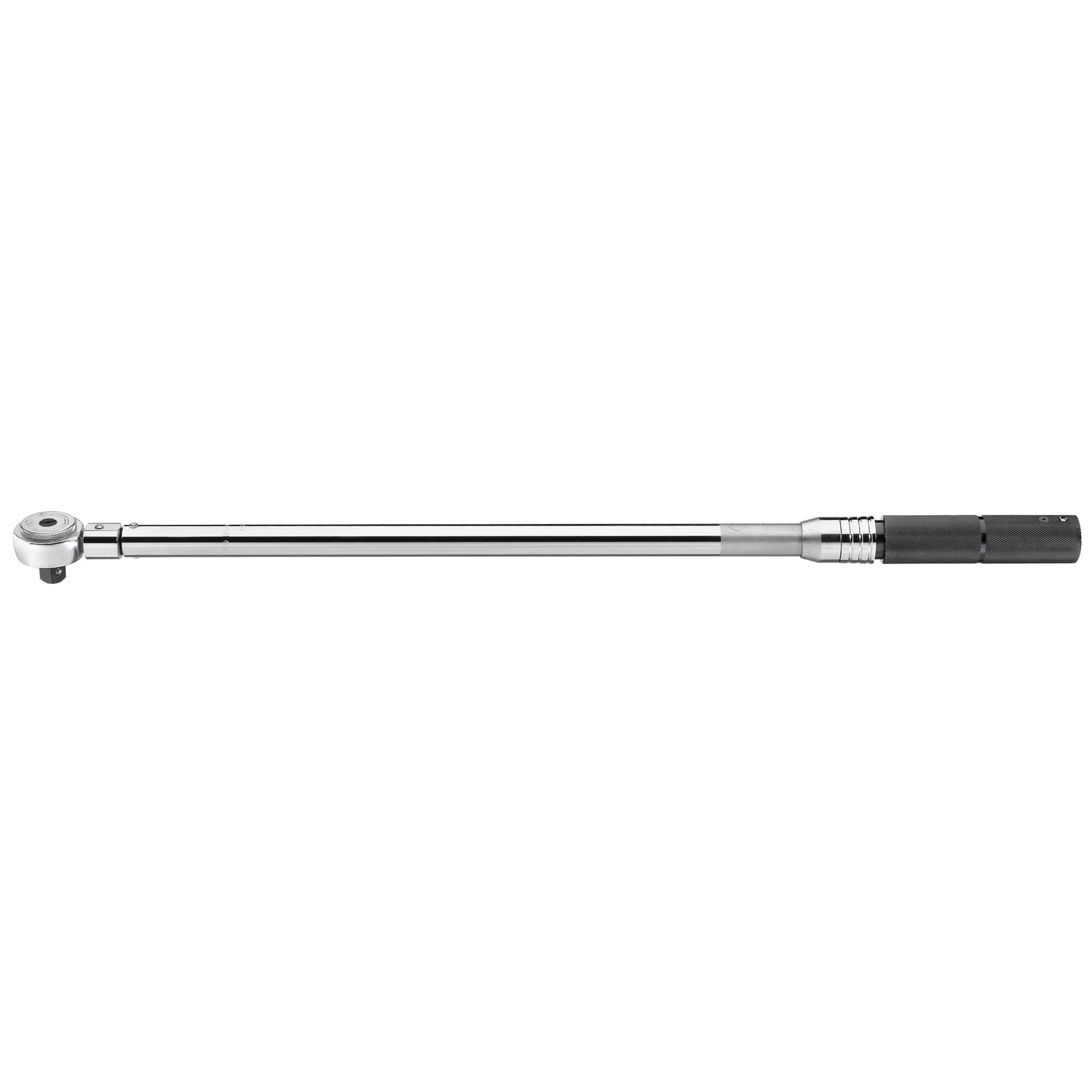

  • [K.306A1000] 306 Series Torque Wrench With Removable Ratchet, 1000Nm

Lieu de fabrication

N/A

Normes & certifications

DIN EN ISO 6789, ISO 6789, NF EN ISO 6789

Période de garantie

This product is covered by a 3-year warranty
