Facom - The Art of Precision since 1918.
1 3

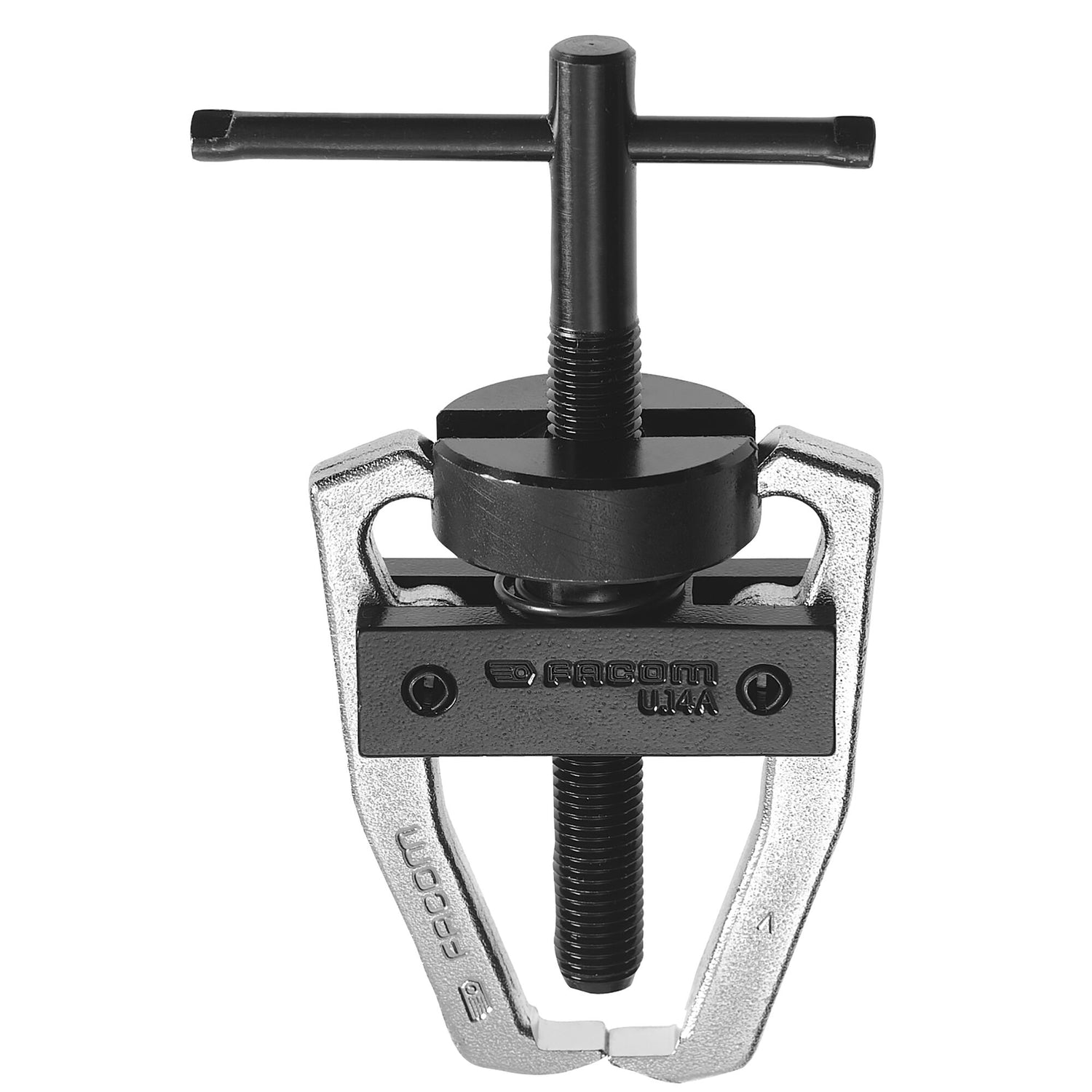

U.14 - Self-gripping outside pullers with slim legs

SKU: U.14A  -  Barcode: 3148510663050
  • Access: 2 slim leg puller.
  • Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.

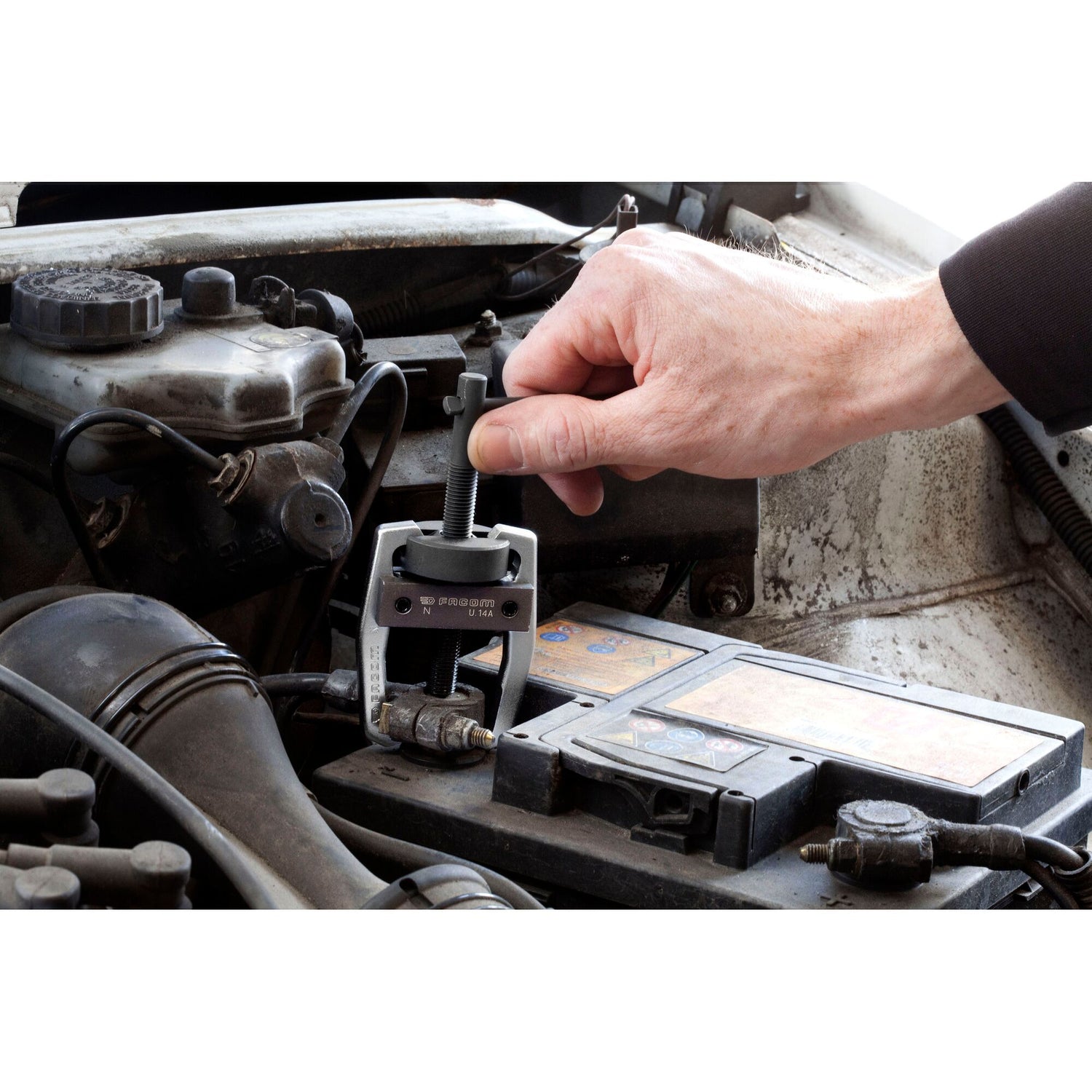

  • Example of use = battery terminals.
  • Capacity mini-maxi diameter : 10-35 mm.
  • Capacity 0,5 t.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Access: 2 slim leg puller.
  • Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
  • Example of use = battery terminals.
  • Capacity mini-maxi diameter : 10-35 mm.
  • Capacity 0,5 t.

Specifications
  • Auto-préhensionOui
  • Extracteur intérieur / extérieurIntérieur
  • Hauteur du produit125 mm
  • Longueur du produit60 mm
  • Largeur du produit75 mm
  • Marquage CEOui
  • Nombre de griffes2
  • Nombre de broches / embouts de rechange1
  • Nombre de pièces1
  • Profondeur ouverture40 mm
  • Poids net0.34 Kg
  • Profil d'extracteurFin
  • Poignée spécialeOui
  • RéversibleNon
  • Type de diamètre d'entrainement du goujonDiamètre unique

Technical drawing and dimensions

H (mm)L (mm)
U.14A [U.14A] Self-gripping outside pullers with slim legs, maximum 35 mm 125.0075.00
U.14L [U.14L] Self-Gripping Outside Pullers With Slim Legs, Maximum 45mm 150.0085.00

Documents

U.14 - Self-gripping outside pullers with slim legs

References available

  • [U.14A] Self-gripping outside pullers with slim legs, maximum 35 mm
  • [U.14L] Self-Gripping Outside Pullers With Slim Legs, Maximum 45mm

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
