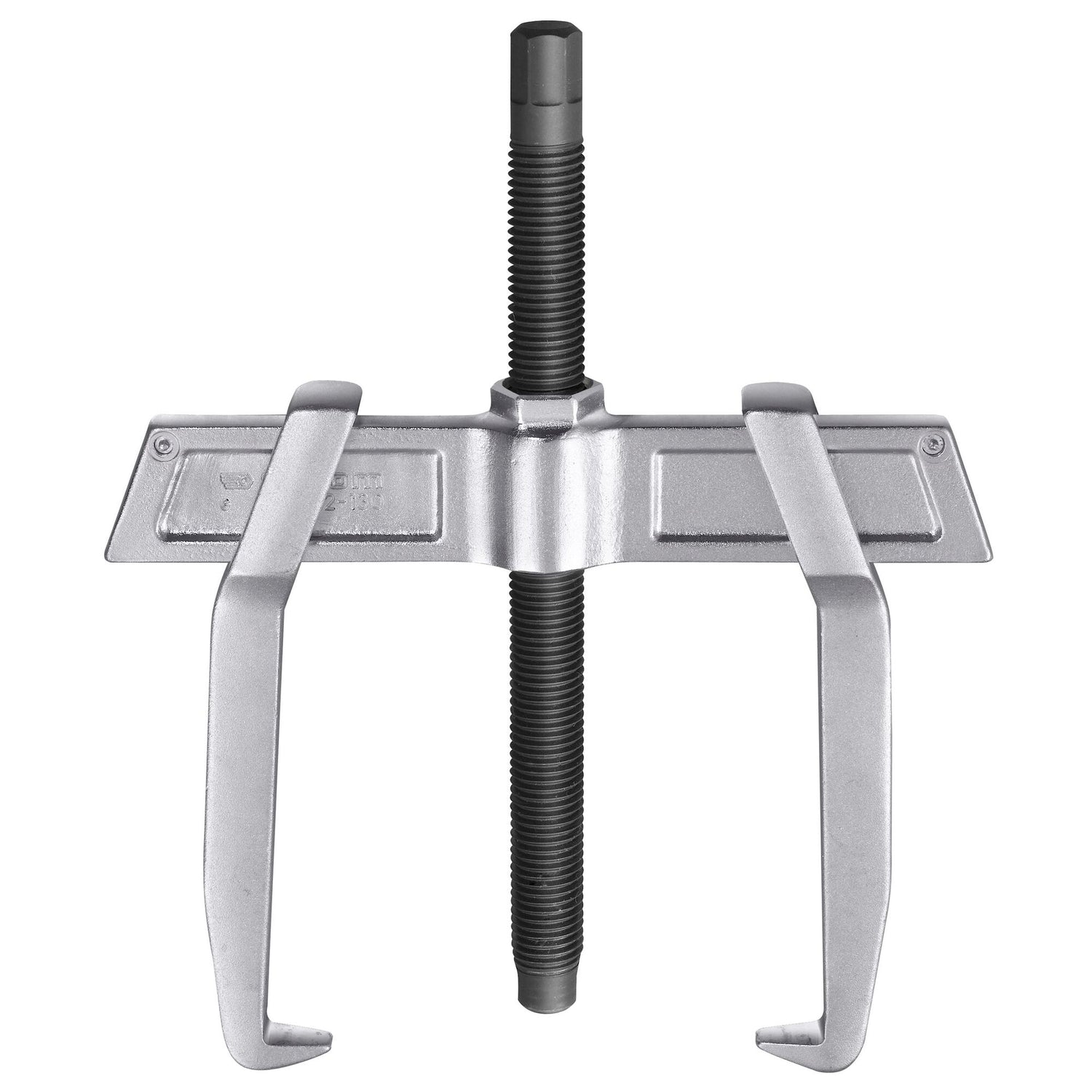

U.232 - 2-leg sliding-leg pullers

SKU: U.232-65  -  Barcode: 3148517711471

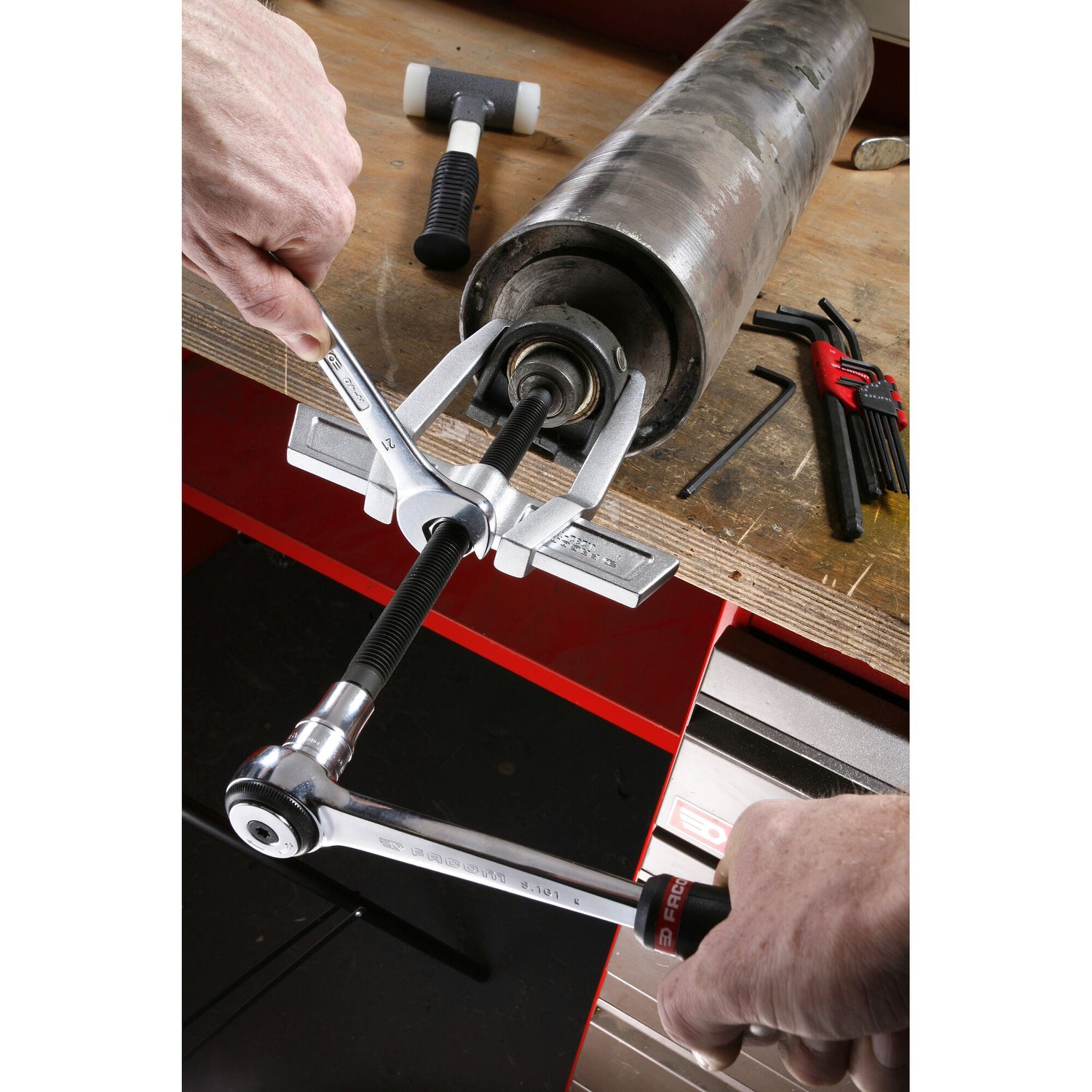

  • Versatile: conversion possible in inside or outside grip with the same leg.
  • Safety: - Stops to prevent legs from falling. - Under pressure, the legs are set to overhang to avoid sliding.
  • Capacity diameter 60-122 mm.
  • Capacity 3 t.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Versatile: conversion possible in inside or outside grip with the same leg.
  • Safety: - Stops to prevent legs from falling. - Under pressure, the legs are set to overhang to avoid sliding.
  • Capacity diameter 60-122 mm.
  • Capacity 3 t.

Specifications
  • Auto-préhensionOui
  • Extracteur intérieur / extérieurExtérieur & Intérieur
  • Hauteur du produit133 mm
  • Longueur du produit105 mm
  • Largeur du produit115 mm
  • Marquage CEOui
  • Nombre de griffes2
  • Nombre de broches / embouts de rechange2
  • Nombre de pièces1
  • Poids net0.4 Kg
  • Profil d'extracteurLarge
  • Poignée spécialeOui
  • RéversibleOui
  • Taille clé hexagonale16 mm
  • Type de diamètre d'entrainement du goujonMulti-diamètre

Technical drawing and dimensions

H (mm)L (mm)
U.232-65 [U.232-65] 2-Leg Sliding Leg Pullers, 1.5t, Inside Capacity 65 - 90 mm, Outside 30 - 60 mm 133.00115.00
U.232-90 [U.232-90] 2-Leg Sliding-Leg Pullers, 3t Capacity, Inside 86 - 95 mm, Outside 60 - 81 mm 182.00146.00
U.232-130 [U.232-130] 2-Leg Sliding-Leg Pullers, 3t Capacity, Inside 86 - 136 mm, Outside 60 - 122 mm 182.00186.00
U.232-160 [U.232-160] 4t 2-Leg Sliding-Leg Pullers, Inside 127 - 171 mm, Outside 86 - 153 mm 283.00247.00
U.232-210 [U.232-210] 2-leg sliding-leg pullers, 4 t, capacity inside 127 - 222 mm, outside 86 - 203 mm 283.00297.00
U.232-270 [U.232-270] 2-Leg Sliding-Leg Pullers, 5t, Capacity Inside 148 - 276 mm, Outside 100 - 255 mm 345.00379.00
U.232-340 [U.232-340] 2-leg sliding-leg pullers, 5 t, capacity inside 148 - 346 mm, outside 100 - 325 mm 345.00449.00

Spare parts

LEG - U.232G1
SCREW - U.35P01

Documents

U.232 - 2-leg sliding-leg pullers

References available

  • [U.232-65] 2-Leg Sliding Leg Pullers, 1.5t, Inside Capacity 65 - 90 mm, Outside 30 - 60 mm
  • [U.232-90] 2-Leg Sliding-Leg Pullers, 3t Capacity, Inside 86 - 95 mm, Outside 60 - 81 mm
  • [U.232-130] 2-Leg Sliding-Leg Pullers, 3t Capacity, Inside 86 - 136 mm, Outside 60 - 122 mm
  • [U.232-160] 4t 2-Leg Sliding-Leg Pullers, Inside 127 - 171 mm, Outside 86 - 153 mm
  • [U.232-210] 2-leg sliding-leg pullers, 4 t, capacity inside 127 - 222 mm, outside 86 - 203 mm
  • [U.232-270] 2-Leg Sliding-Leg Pullers, 5t, Capacity Inside 148 - 276 mm, Outside 100 - 255 mm
  • [U.232-340] 2-leg sliding-leg pullers, 5 t, capacity inside 148 - 346 mm, outside 100 - 325 mm

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
