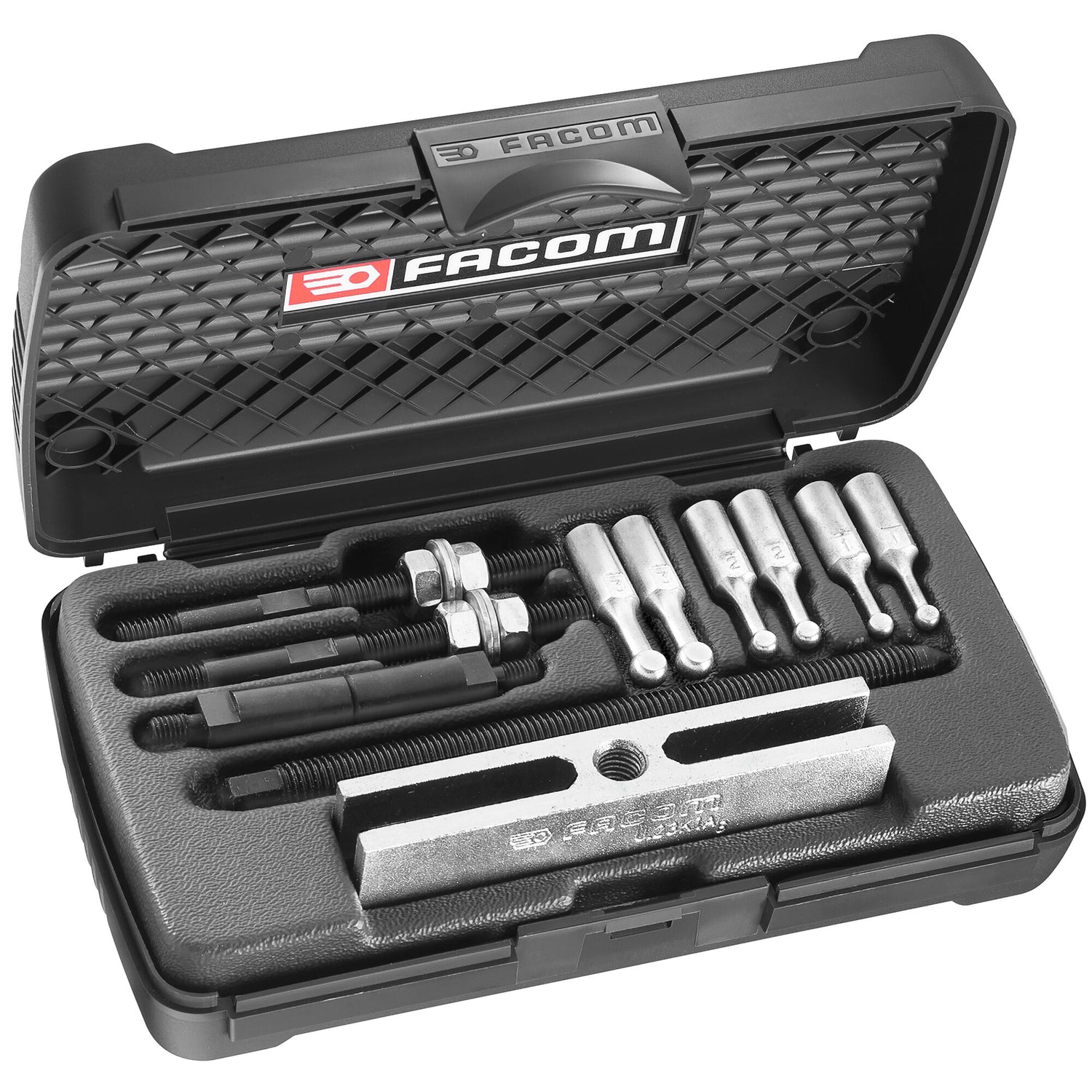

Micro Bearing Puller Set
SKU:
U.23J1A
- Comprising: - 3 pairs of tips: Ø 5.5 - 6 - 7.5 mm. - Beam U.23K1A.
- Spread: Ø 25 to 95 mm.
- For ISO bearings: 6004 to 6010; 6200 to 6205; 6300 to 6302.
- Supplied in plastic case BP.102 with tray PL.392A.
Warranty
Warranty
This product is: Please refer to the warranty for each item included in this set
Click here to learn more about our warranties.
Description
Description
- Comprising: - 3 pairs of tips: Ø 5.5 - 6 - 7.5 mm. - Beam U.23K1A.
- Spread: Ø 25 to 95 mm.
- For ISO bearings: 6004 to 6010; 6200 to 6205; 6300 to 6302.
- Supplied in plastic case BP.102 with tray PL.392A.
Composition detail
Composition detail
-
1 x [BP.MBOXS] MBOX Small BP.MBOXS -
1 x Plastic Tray for U.23J1A PL.S392A -
![[U.23D5] U.23 Puller Type Tip Set, Diameter 5.5 mm, Thread M6 (2 pc.)](//facom.eu/cdn/shop/files/Ecomm_Large-U.23D5_1.jpg?v=1775047053&width=60)
1 x U.23 Puller Type Tip Set, Diameter 5.5 mm, Thread M6 (2 pc.) U.23D5 -
![[U.23D6] Puller Type Tip Set for U.23, Diameter 6 mm, Thread M6](//facom.eu/cdn/shop/files/Ecomm_Large-U.23D6_1.jpg?v=1775047057&width=60)
1 x Puller Type Tip Set for U.23, Diameter 6 mm, Thread M6 U.23D6 -
![[U.23D8] Set of 2 Tips for U.23 Puller Type, Diameter 7.5 mm, Thread M6](//facom.eu/cdn/shop/files/Ecomm_Large-U.23D8_1.jpg?v=1775047059&width=60)
1 x Set of 2 Tips for U.23 Puller Type, Diameter 7.5 mm, Thread M6 U.23D8 -
1 x [U.23K1A] Tapped Beams for U.53, M10, 25 - 95 mm U.23K1A
![[U.23D5] U.23 Puller Type Tip Set, Diameter 5.5 mm, Thread M6 (2 pc.)](http://facom.eu/cdn/shop/files/Ecomm_Large-U.23D5_1.jpg?v=1775047053&width=60)
![[U.23D6] Puller Type Tip Set for U.23, Diameter 6 mm, Thread M6](http://facom.eu/cdn/shop/files/Ecomm_Large-U.23D6_1.jpg?v=1775047057&width=60)
![[U.23D8] Set of 2 Tips for U.23 Puller Type, Diameter 7.5 mm, Thread M6](http://facom.eu/cdn/shop/files/Ecomm_Large-U.23D8_1.jpg?v=1775047059&width=60)
