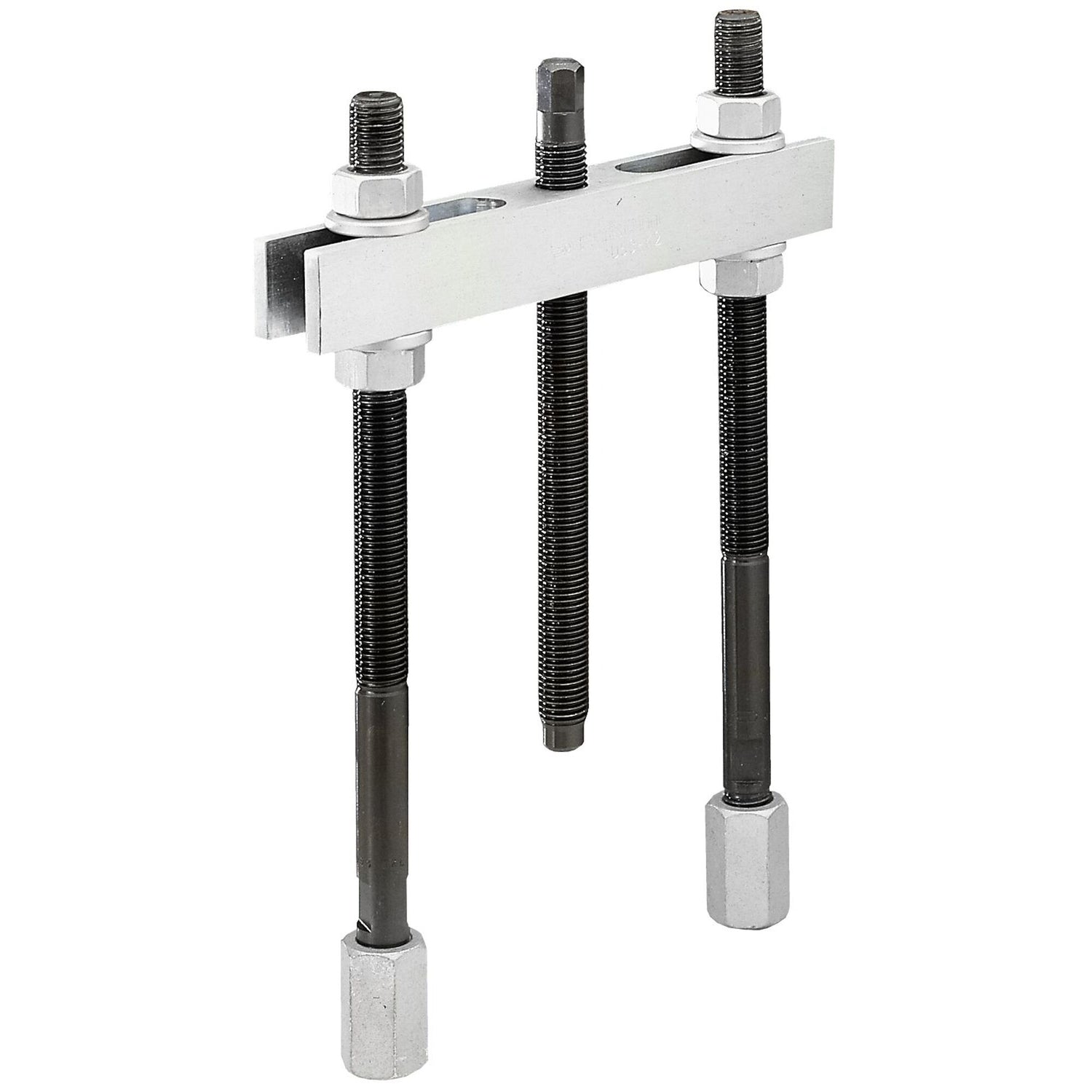

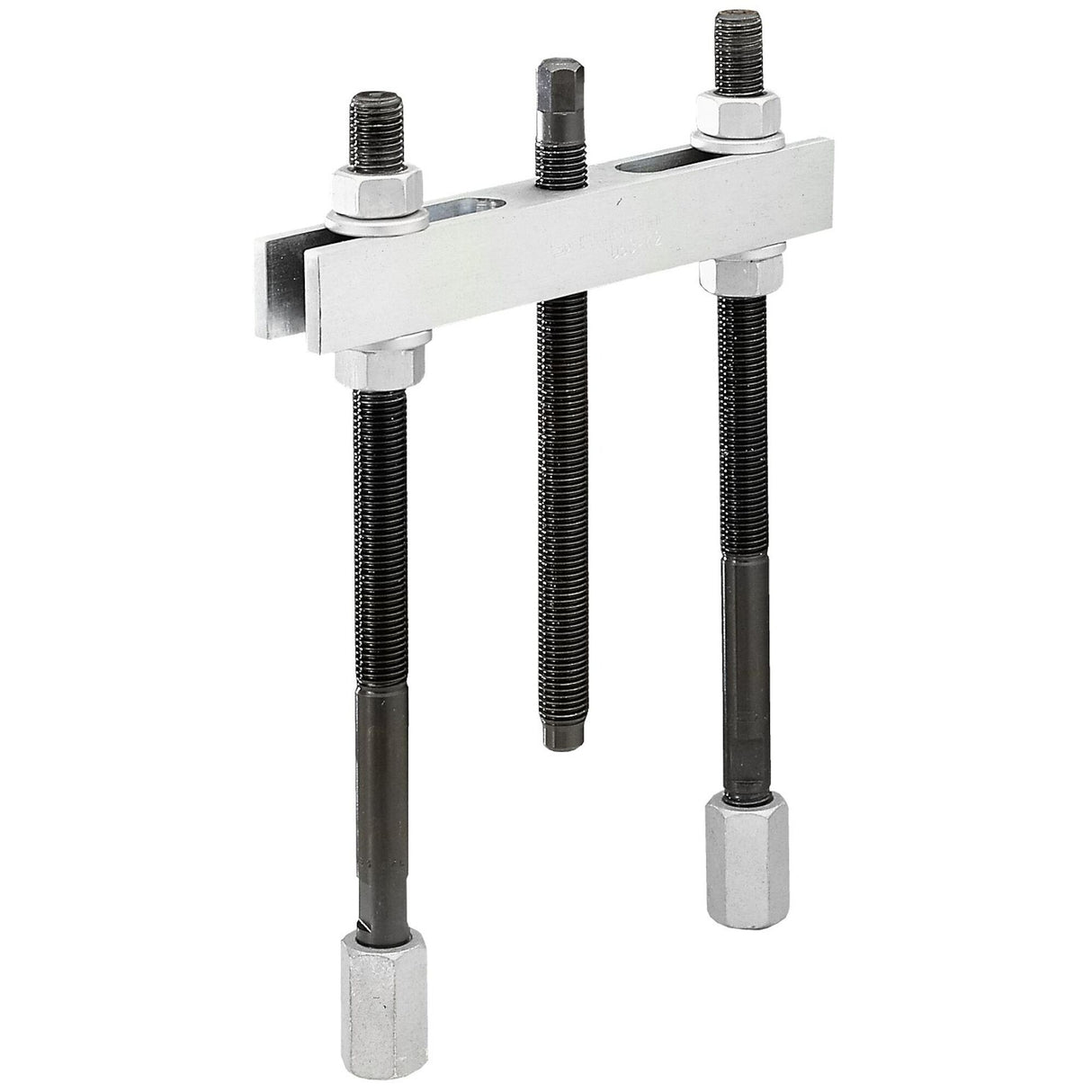

U.23K-U.53K - Tapped beams for U.53
SKU:
U.23K1A
U.23K-U.53K - Tapped beams for U.53 - [U.23K1A] Tapped Beams for U.53, M10, 25 - 95 mm is backordered and will ship as soon as it is back in stock.
Warranty
Warranty
This product is: Lifetime warranty on the tool (replacement)
Click here to learn more about our warranties.
Description
Description
Specifications
Specifications
- Auto-préhensionNon
- Capacité maximale du clip25 95 mm
- DiamètreM10 mm
- Longueur du produit110 mm
- Largeur du produit20 mm
- Marquage CEOui
- Nombre de pièces1
- Poids net0.4 Kg
- Profil d'extracteurBoulon en U
- Poignée spécialeNon
- RéversibleNon
- Taille clé hexagonale8 mm
- Tonne (T)1T
- Type de diamètre d'entrainement du goujonMulti-diamètre
Technical drawing and dimensions
Technical drawing and dimensions
| D1 (mm) | L1 (mm) | L2 (mm) | L3 (mm) | L (mm) | |||
|---|---|---|---|---|---|---|---|
| U.23K1A | [U.23K1A] Tapped Beams for U.53, M10, 25 - 95 mm | 8.00 | 155.00 | 20.00 | 20.00 | 110.00 | |
| U.53K1 | [U.53K1] 40 - 110 mm Tapped Beam for U.53, M16 | 11.00 | 215.00 | 25.00 | 25.00 | 135.00 | |
| U.53K2 | [U.53K2] 70 - 200 mm Tapped Beams for U.53, M16 | 11.00 | 280.00 | 30.00 | 30.00 | 220.00 | |
| U.53K3 | [U.53K3] 75 - 280 mm Tapped Beams for U.53, M27 | 21.00 | 340.00 | 45.00 | 35.00 | 320.00 | |
| U.53K4 | [U.53K4] Tapped Beams for U.53, M33, 14 - 400 mm | 25.00 | 420.00 | 50.00 | 50.00 | 450.00 |
