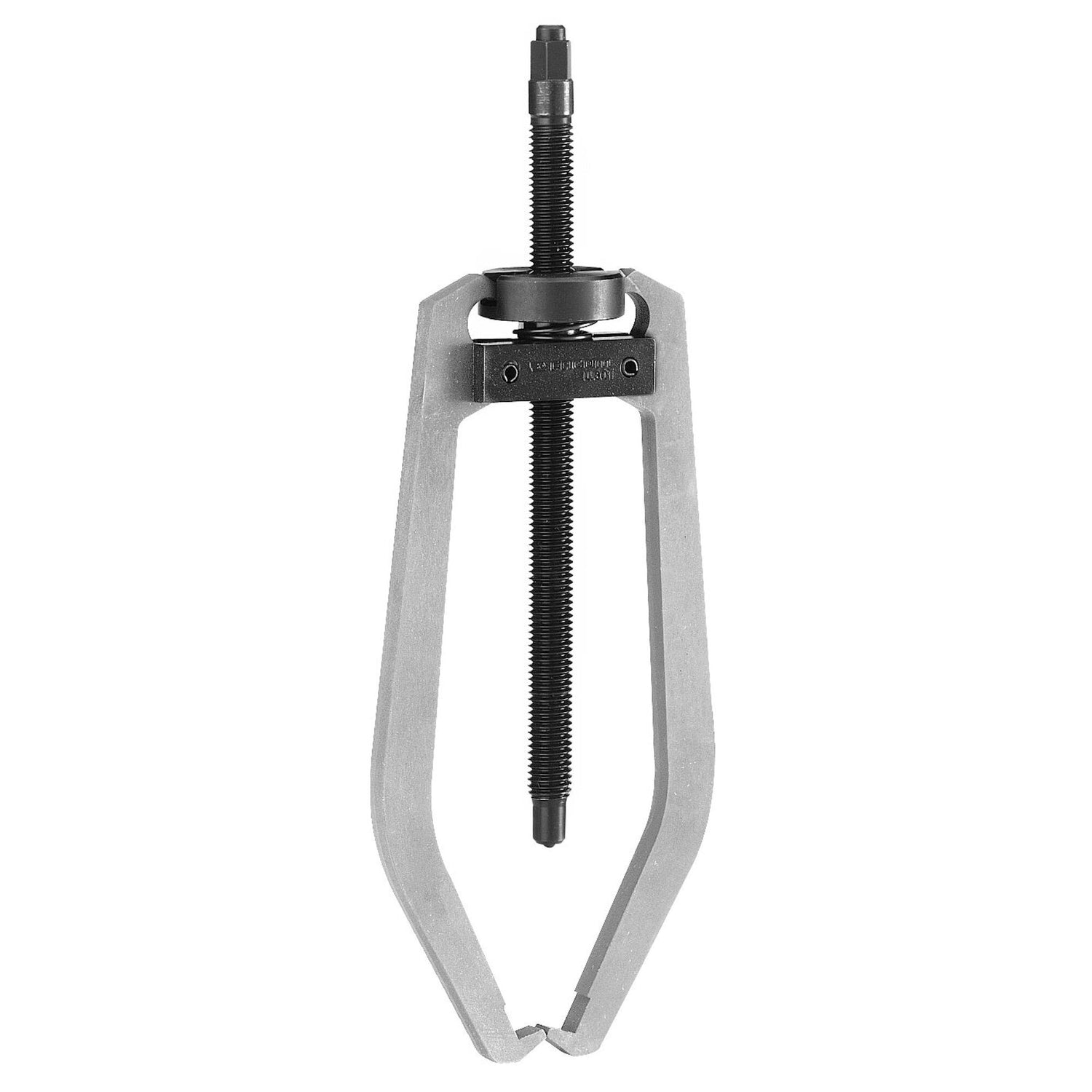

U.301 - Self-gripping outside pullers with slim legs

SKU: U.301  -  Barcode: 3148510751504
  • Access: 2 slim leg puller.
  • Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
  • Adaptable puller accessory: slide hammer U.49AM. - Per tip U.301E1 (U.301 and U.301-150). - Per tip U.301E2 (U.301-200).
  • Capacity diameter 10-80 mm.
  • Capacity 0,9t.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Access: 2 slim leg puller.
  • Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
  • Adaptable puller accessory: slide hammer U.49AM. - Per tip U.301E1 (U.301 and U.301-150). - Per tip U.301E2 (U.301-200).
  • Capacity diameter 10-80 mm.
  • Capacity 0,9t.

Specifications
  • Auto-préhensionOui
  • Capacité maximale du clip10-80 mm
  • Extracteur intérieur / extérieurIntérieur
  • Hauteur du produit153 mm
  • Longueur du produit130 mm
  • Largeur du produit83 mm
  • Marquage CEOui
  • Nombre de griffes2
  • Nombre de broches / embouts de rechange1
  • Nombre de pièces1
  • Profondeur ouverture90 mm
  • Poids net0.5 Kg
  • Profil d'extracteurFin
  • Poignée spécialeOui
  • RéversibleNon
  • Taille clé hexagonale10 mm
  • Tonne (T)0.9T
  • Type de diamètre d'entrainement du goujonDiamètre unique

Technical drawing and dimensions

H (mm)L (mm)
U.301 [U.301] Self-gripping outside pullers with slim legs, maximum depth 90 mm, 2 slim leg 153.0083.00
U.301-150 [U.301-150] Self-Gripping Outside Pullers With Slim Legs, Maximum Depth 150 mm, 2 Slim Leg 222.0090.00
U.301-200 [U.301-200] Self-Gripping Outside Pullers With Slim Legs, Maximum Depth 200 mm, 2 Slim Leg 300.00120.00

Spare parts

SCREW - U.301-04
LEG - U.301G

Documents

U.301 - Self-gripping outside pullers with slim legs

References available

  • [U.301] Self-gripping outside pullers with slim legs, maximum depth 90 mm, 2 slim leg
  • [U.301-150] Self-Gripping Outside Pullers With Slim Legs, Maximum Depth 150 mm, 2 Slim Leg
  • [U.301-200] Self-Gripping Outside Pullers With Slim Legs, Maximum Depth 200 mm, 2 Slim Leg

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
