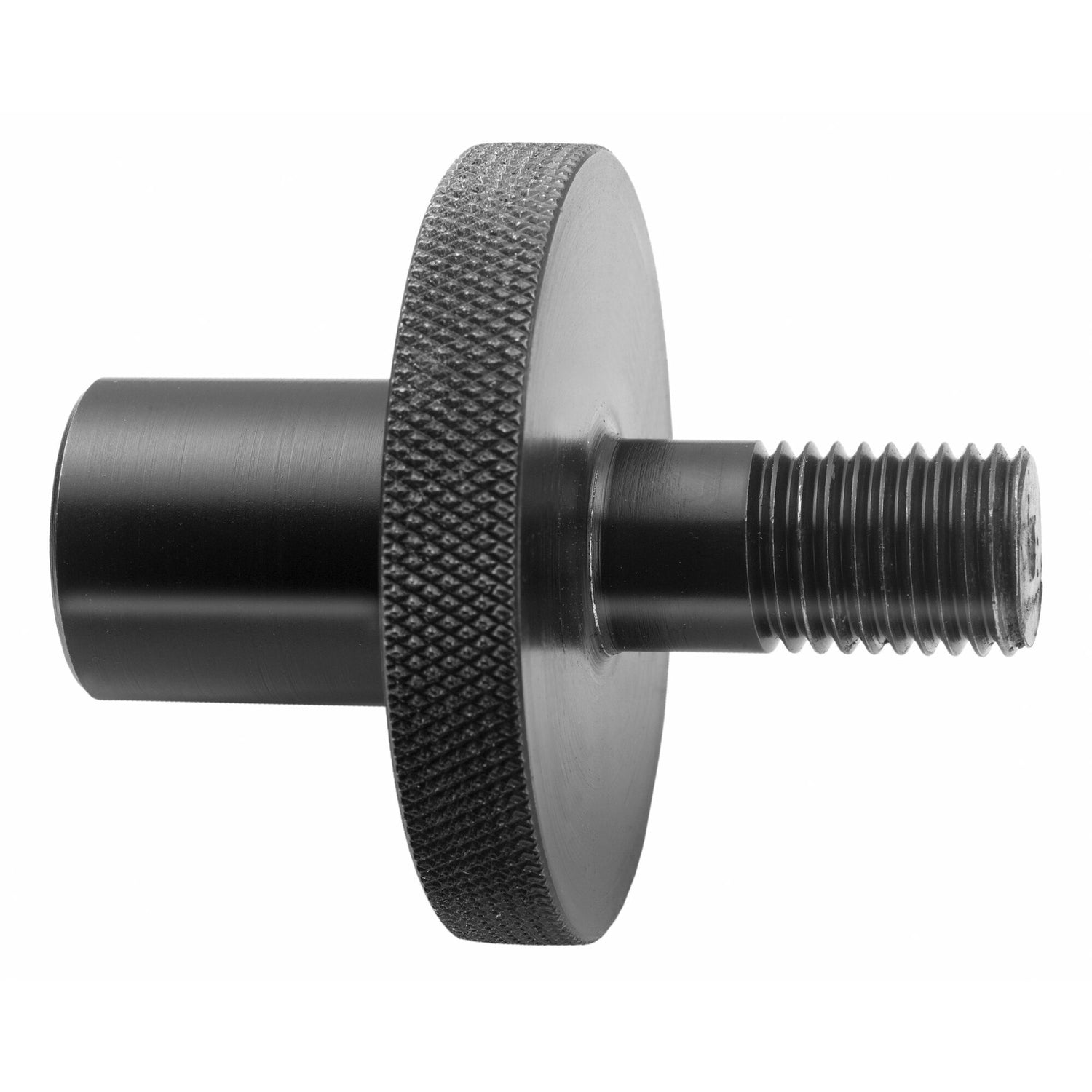

U.301E - Adaptor tips for separators U.301 / U.302 on slide hammer U.49AM

SKU: U.301E1  -  Barcode: 3148516967312
  • U.301E1 tip for pullers U.301, U.302, U.301-150, U.302-150. - Female thread: 1/2" - 20 UNF. - Male thread: M12 x 1.75.
  • U.301E2 tip for pullers U.301-200 and U.302-200. - Female thread: 1/2" - 20 UNF. - Male thread: M16 x 2.00.
  • Locks the legs in Pullers position.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • U.301E1 tip for pullers U.301, U.302, U.301-150, U.302-150. - Female thread: 1/2" - 20 UNF. - Male thread: M12 x 1.75.
  • U.301E2 tip for pullers U.301-200 and U.302-200. - Female thread: 1/2" - 20 UNF. - Male thread: M16 x 2.00.
  • Locks the legs in Pullers position.

Specifications
  • Diamètre25 mm
  • Hauteur du produit25 mm
  • Longueur du produit62 mm
  • Largeur du produit22 mm
  • Marquage CEOui
  • Nombre de pièces1
  • Poids net0.2 Kg

Documents

U.301E - Adaptor tips for separators U.301 / U.302 on slide hammer U.49AM

References available

  • [U.301E1] Adaptor Tip for Separators U.301/U.302 on Slide Hammer U.49AM, Thread M12 x 1.75
  • [U.301E2] Adaptor Tips for Separators U.301/U.302 on Slide Hammer U.49AM, Thread M16 x 2.00

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
