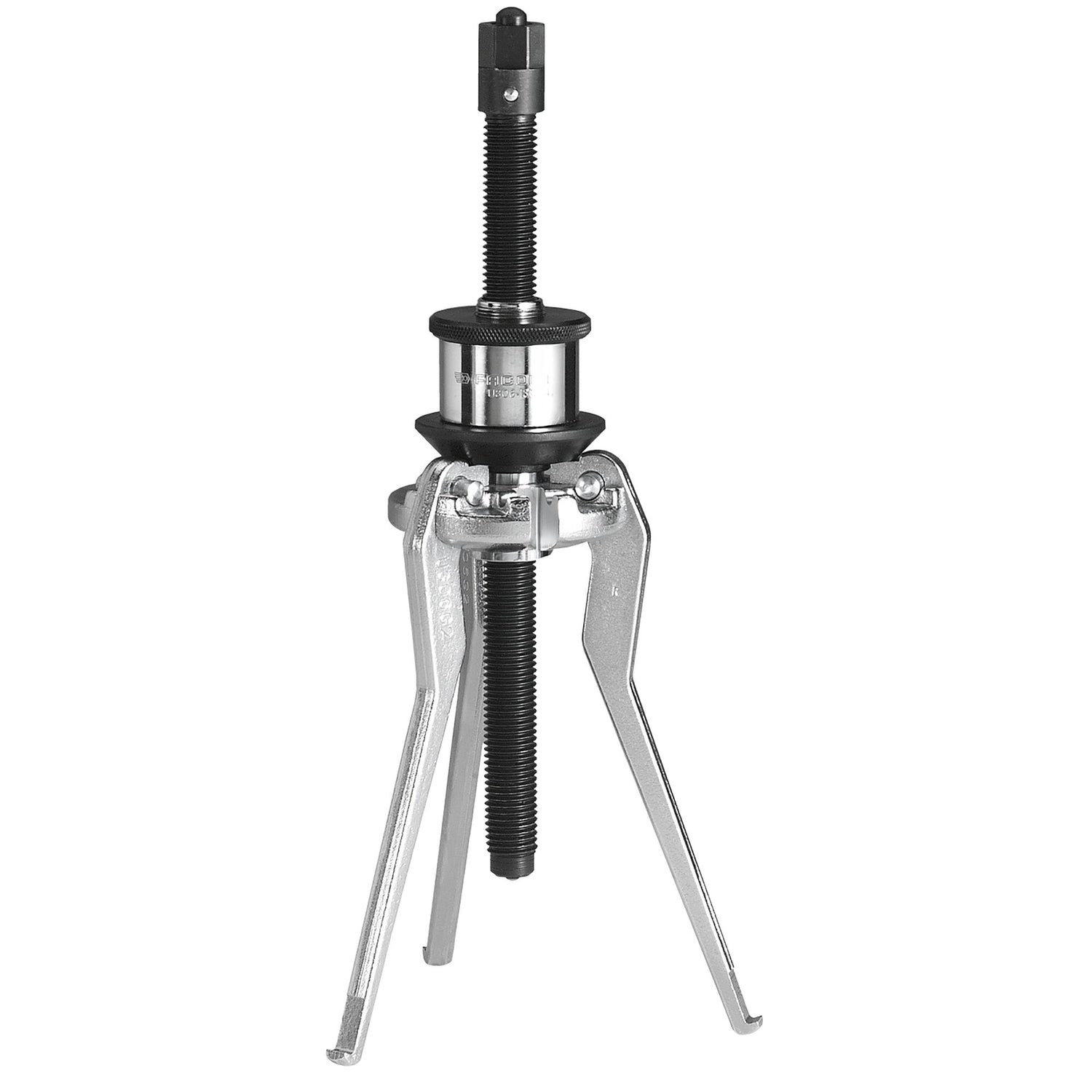

U.306N - Inside pullers

SKU: U.306A130N - Barcode: 3148510751863

Versatile: takes 2 or 3 legs. Converts into outside puller with the legs U.306G1 + screw U.306-4 or legs U.306G10 + screw U.306-2 or legs U.306G15 + screw U.306-3 (supplied fitted with its extension).
Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
Set of 3 spare pins. Refer to spares table according to puller power.
Adaptable puller accessories: slide hammer U.306M (direct attachment) and beam U.40 (attached using ring and nut U.306A1 to be ordered separately).
Capacity diameter 50-170 mm.
Capacity 3 t.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Versatile: takes 2 or 3 legs. Converts into outside puller with the legs U.306G1 + screw U.306-4 or legs U.306G10 + screw U.306-2 or legs U.306G15 + screw U.306-3 (supplied fitted with its extension).
Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
Shear pin: the pin shears if torque limit is exceeded. Supplied with 2 spare pins.
Set of 3 spare pins. Refer to spares table according to puller power.
Adaptable puller accessories: slide hammer U.306M (direct attachment) and beam U.40 (attached using ring and nut U.306A1 to be ordered separately).
Capacity diameter 50-170 mm.
Capacity 3 t.

Specifications

Technical drawing and dimensions

			H (mm)	L (mm)
	U.306A130N	[U.306A130N] Inside pullers, maximum depth 130 mm	250.00	130.00
	U.306-170N	[U.306-170N] Inside pullers, maximum depth 170 mm	320.00	135.00

Spare parts

PIN - U.306-243J3
SCREW - U.306-4
LEG - U.306G2
