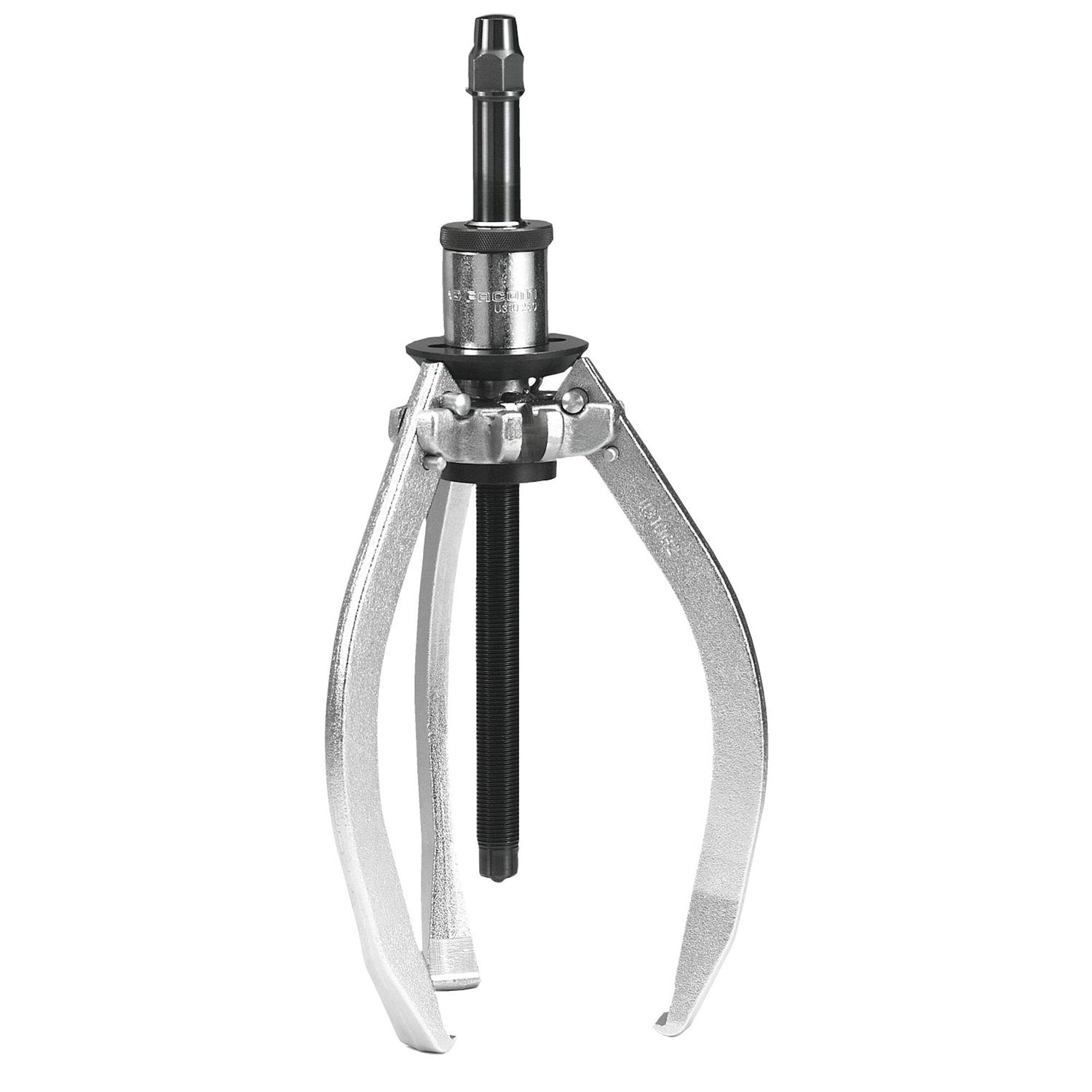

U.310 - Outside pullers

SKU: U.310-170 - Barcode: 3148510752051

Versatile: takes 2 or 3 legs. Converts into inside puller with the legs U.306G3 + screw U.20B1.
Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
Adaptable puller accessories: hydraulic screw U.3 and slide hammer U.2.
Capacity diameter 15 - 170 mm.
Capacity 10 t.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Versatile: takes 2 or 3 legs. Converts into inside puller with the legs U.306G3 + screw U.20B1.
Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
Adaptable puller accessories: hydraulic screw U.3 and slide hammer U.2.
Capacity diameter 15 - 170 mm.
Capacity 10 t.

Specifications

Technical drawing and dimensions

			H (mm)	L (mm)
	U.310-170	[U.310-170] 170mm Outside Puller	365.00	143.00
	U.310-250	[U.310-250] 250mm Outside Pullers	420.00	163.00

Spare parts

SCREW - U.20B1
LEG - U.310G1
