Hydraulic puller 10 t for outside puller, 4 set of legs
SKU:
U.312HJ4
- Versatile: takes 2 or 3 legs.
- Safety: power is limited hydraulically to 10 tonnes. No risk of breakage.
- Comprising: - A 10-tonne hydraulic jack (100 kN) U.312-01 + and guide tip U.312-02 + set of 2 extensions U.312-03. - A body with 2 or 3 legs U.312-04 + centering screw U.312-04-01 + set of 3 screws/nuts U.312-04-02. - 4 sets of legs: U.312G110, U.312G160, U.312G210 and U.312G260.

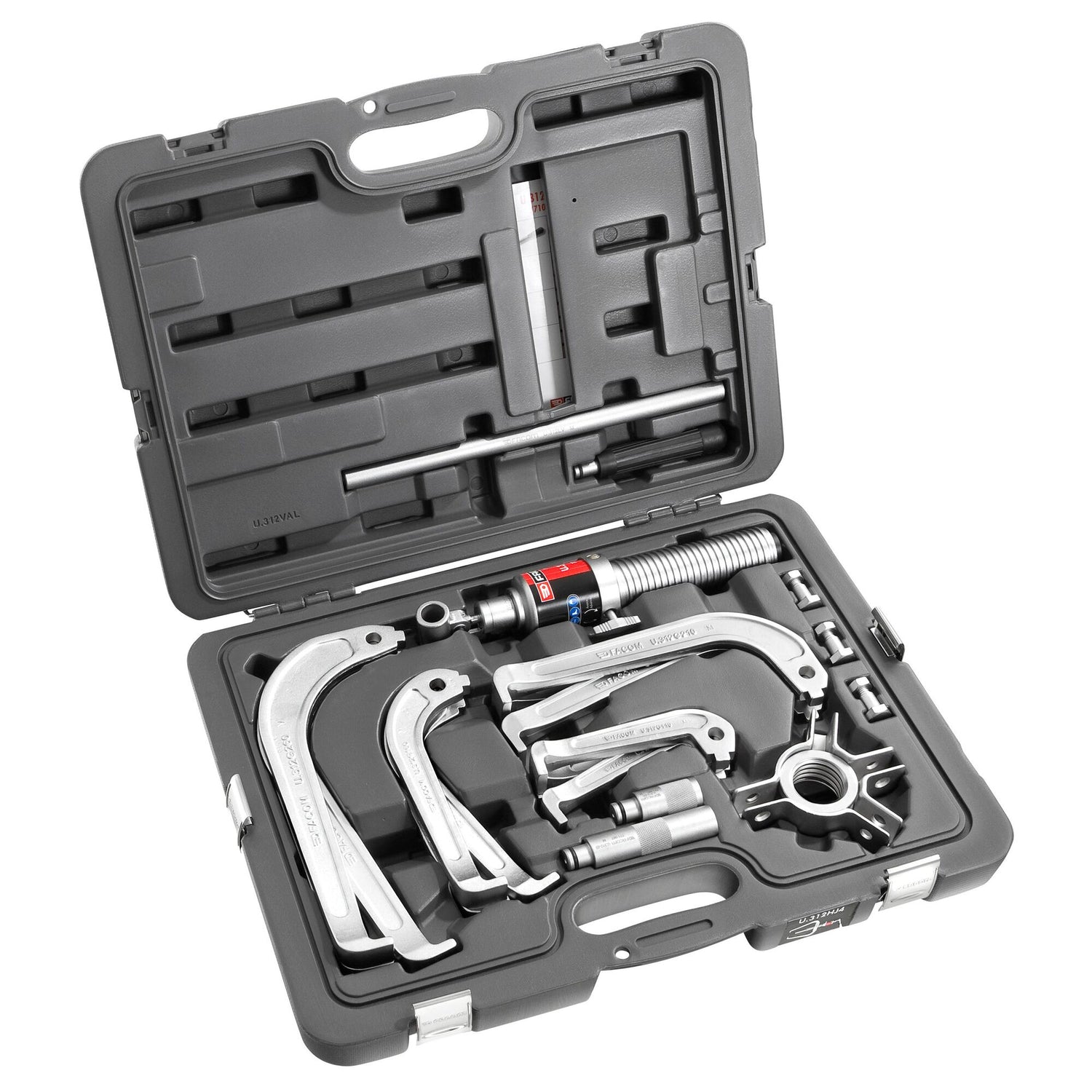

- Supplied in plastic case U.312VAL.
- Capacity diameter 45 - 270 mm.
Warranty
Warranty
This product is: Please refer to the warranty for each item included in this set
Click here to learn more about our warranties.
Description
Description
- Versatile: takes 2 or 3 legs.
- Safety: power is limited hydraulically to 10 tonnes. No risk of breakage.
- Comprising: - A 10-tonne hydraulic jack (100 kN) U.312-01 + and guide tip U.312-02 + set of 2 extensions U.312-03. - A body with 2 or 3 legs U.312-04 + centering screw U.312-04-01 + set of 3 screws/nuts U.312-04-02. - 4 sets of legs: U.312G110, U.312G160, U.312G210 and U.312G260.
- Supplied in plastic case U.312VAL.
- Capacity diameter 45 - 270 mm.
Specifications
Specifications
- Auto-préhensionOui
- Extracteur intérieur / extérieurExtérieur
- Hauteur du produit105 mm
- Longueur du produit412 mm
- Largeur du produit565 mm
- Nombre de griffes4
- Nombre de broches / embouts de rechange8
- Nombre de pièces9
- Poids net14.4 Kg
- Profil d'extracteurLarge
- Poignée spécialeNon
- RéversibleNon
- Type de diamètre d'entrainement du goujonDiamètre unique
Spare parts
Spare parts
JACK - U.312-01
TIP - U.312-02
EXTENSION - U.312-03
HEAD - U.312-04
NUT - U.312-04-01
SCREW - U.312-04-02
LEG - U.312G110
LEG - U.312G160
LEG - U.312G210
LEG - U.312G260
HANDLE SA - U.312LV
