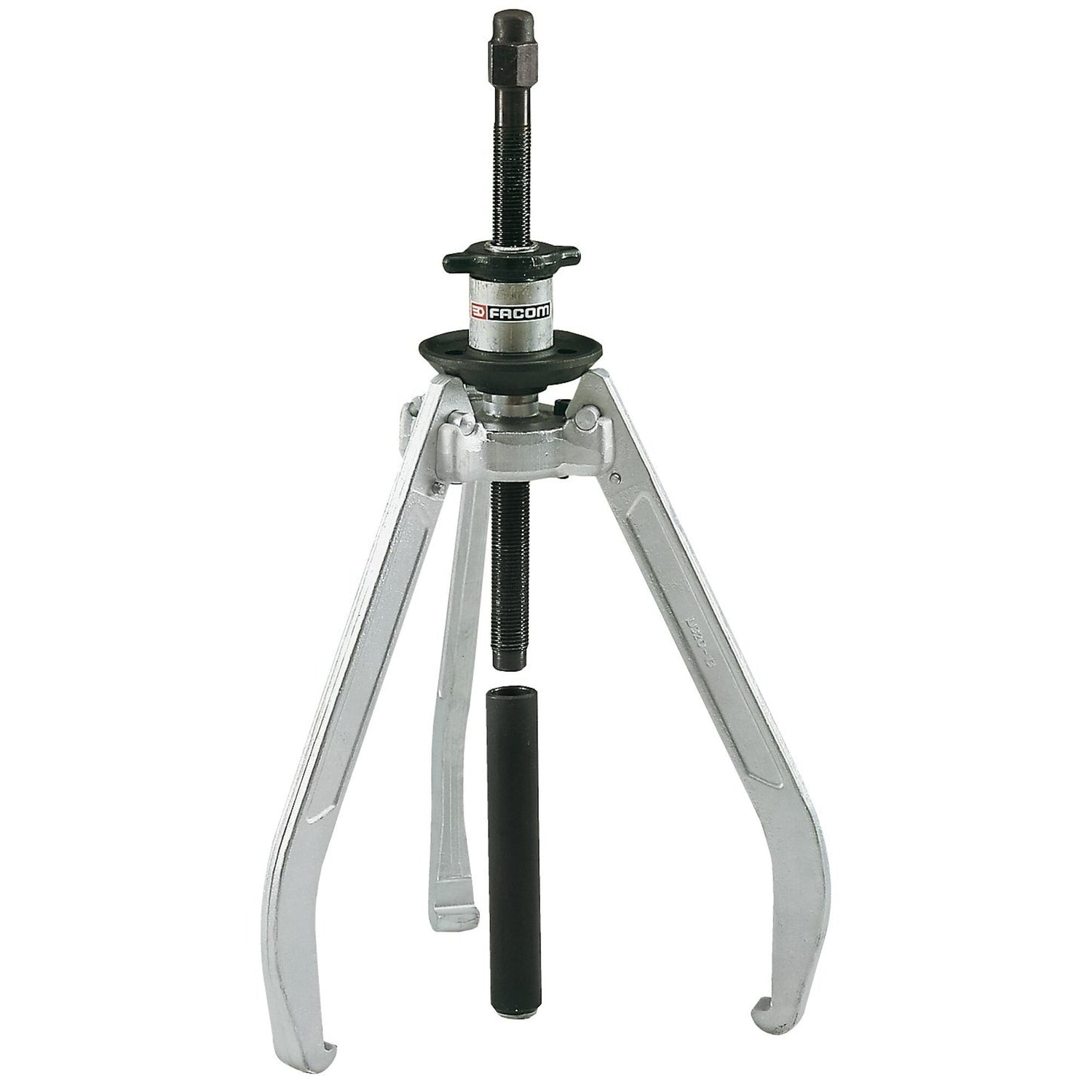

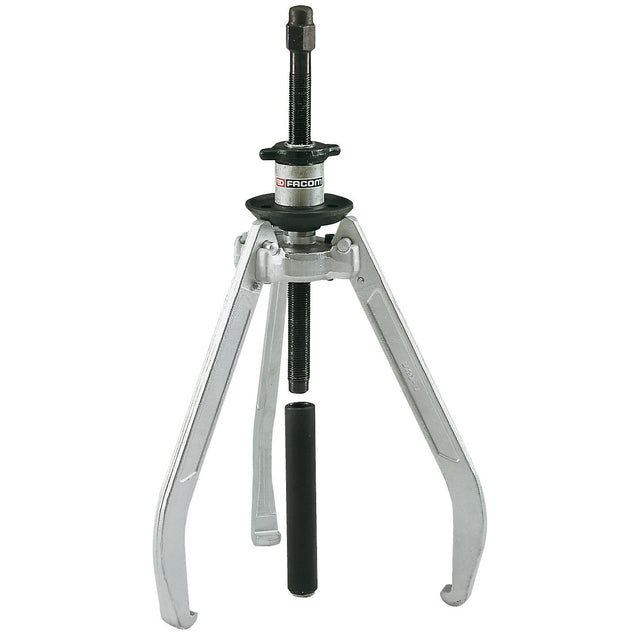

20t High Capacity Outside Puller

• Versatile: takes 2 or 3 legs.
• Comfort: self-gripping legs by return spring. The puller stays in rolling position even when not in tension.
• Safety: legs locked in position on the bearing using a knob. No risk for the puller to escape from the bearing.
• The screw is supplied with an extension: U.320-14.
• Adaptable puller accessory: hydraulic jack UWG.320. Using the jack requires the screw UWG.320-H01 and hydraulic pump UWP.10M. Mounting with 3 legs only with the hydraulic jack.
• Capacity diameter 100 - 360 mm.

SCREW - U.320-01
LEG - U.320-13A
SCREW - U.320-14
PIN - U.320GP1
