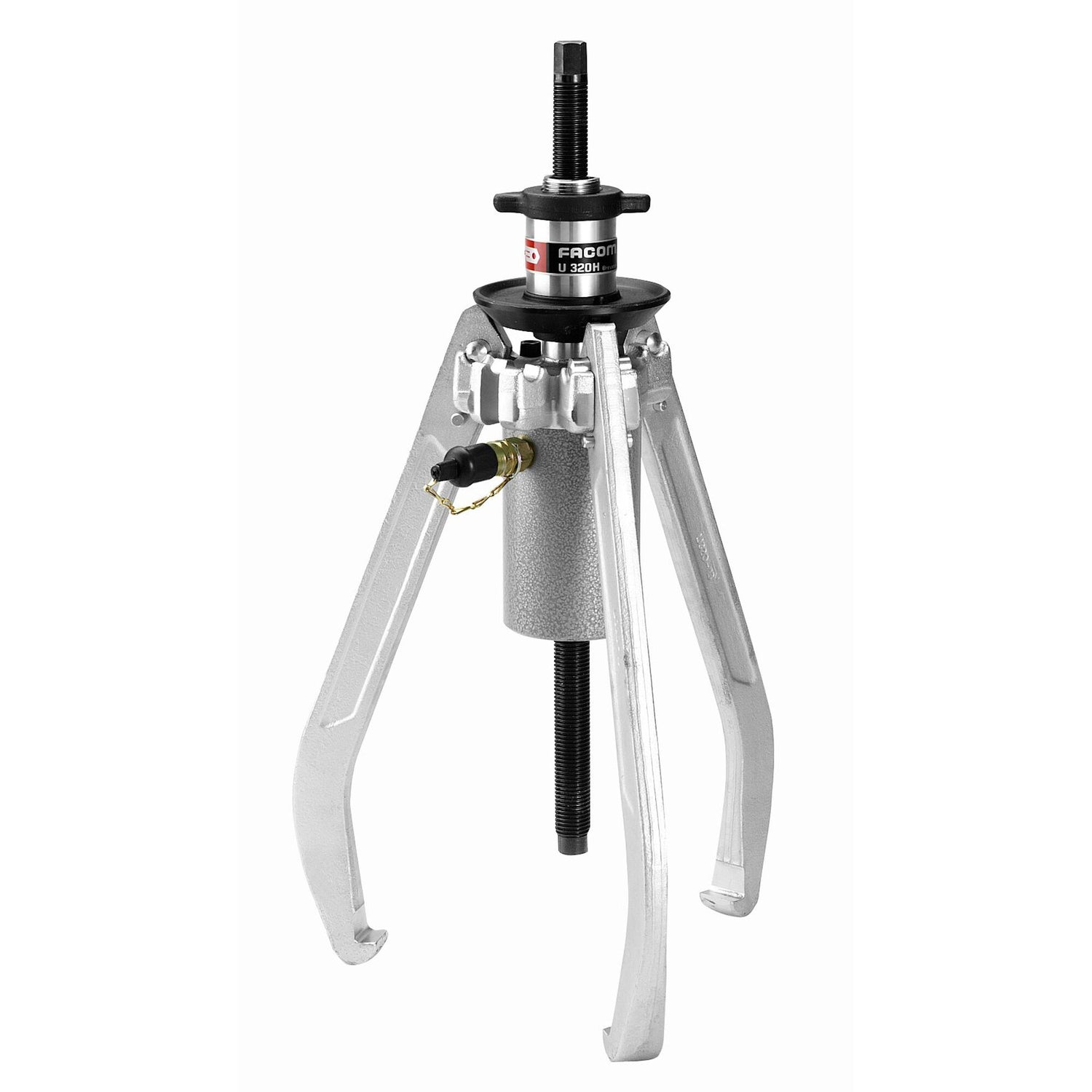

30t Hydraulic Outside Puller
SKU:
U.330H
- Comfort: self-gripping legs by return spring. The puller stays in position on the bearing even when not in tension.
- Safety: power is limited hydraulically by the pump. No risk of breakage.
- 1 hollow jack UWG.320 fitted with the screw UWG.330H01.
- Use with 700-bar pump UWP.10MA.
- Mounting with 3 legs only with the hydraulic jack.
- Capacity diameter 100-530 mm.
- Capacity 30 t.
Warranty
Warranty
This product is: This product is covered by the statutory warranty
Click here to learn more about our warranties.
Description
Description
- Comfort: self-gripping legs by return spring. The puller stays in position on the bearing even when not in tension.
- Safety: power is limited hydraulically by the pump. No risk of breakage.
- 1 hollow jack UWG.320 fitted with the screw UWG.330H01.
- Use with 700-bar pump UWP.10MA.
- Mounting with 3 legs only with the hydraulic jack.
- Capacity diameter 100-530 mm.
- Capacity 30 t.
Specifications
Specifications
- Auto-préhensionOui
- Capacité maximale du clip100-530 mm
- Extracteur intérieur / extérieurExtérieur
- Hauteur du produit950 mm
- Longueur du produit900 mm
- Largeur du produit300 mm
- Nombre de griffes3
- Nombre de broches / embouts de rechange1
- Nombre de pièces1
- Profondeur ouverture395 mm
- Poids net55.6 Kg
- Profil d'extracteurLarge
- Poignée spécialeNon
- RéversibleNon
- Taille clé hexagonale21 mm
- Tonne (T)300T
- Type de diamètre d'entrainement du goujonDiamètre unique
Technical drawing and dimensions
Technical drawing and dimensions
-
H (mm)950.00
-
L (mm)300.00
Spare parts
Spare parts
SERVICE KIT - 1004758-72
PIN - U.320GP1
LEG - U.330-08
JACK - UWG.330
SCREW - UWG.330H01
