Facom - The Art of Precision since 1918.

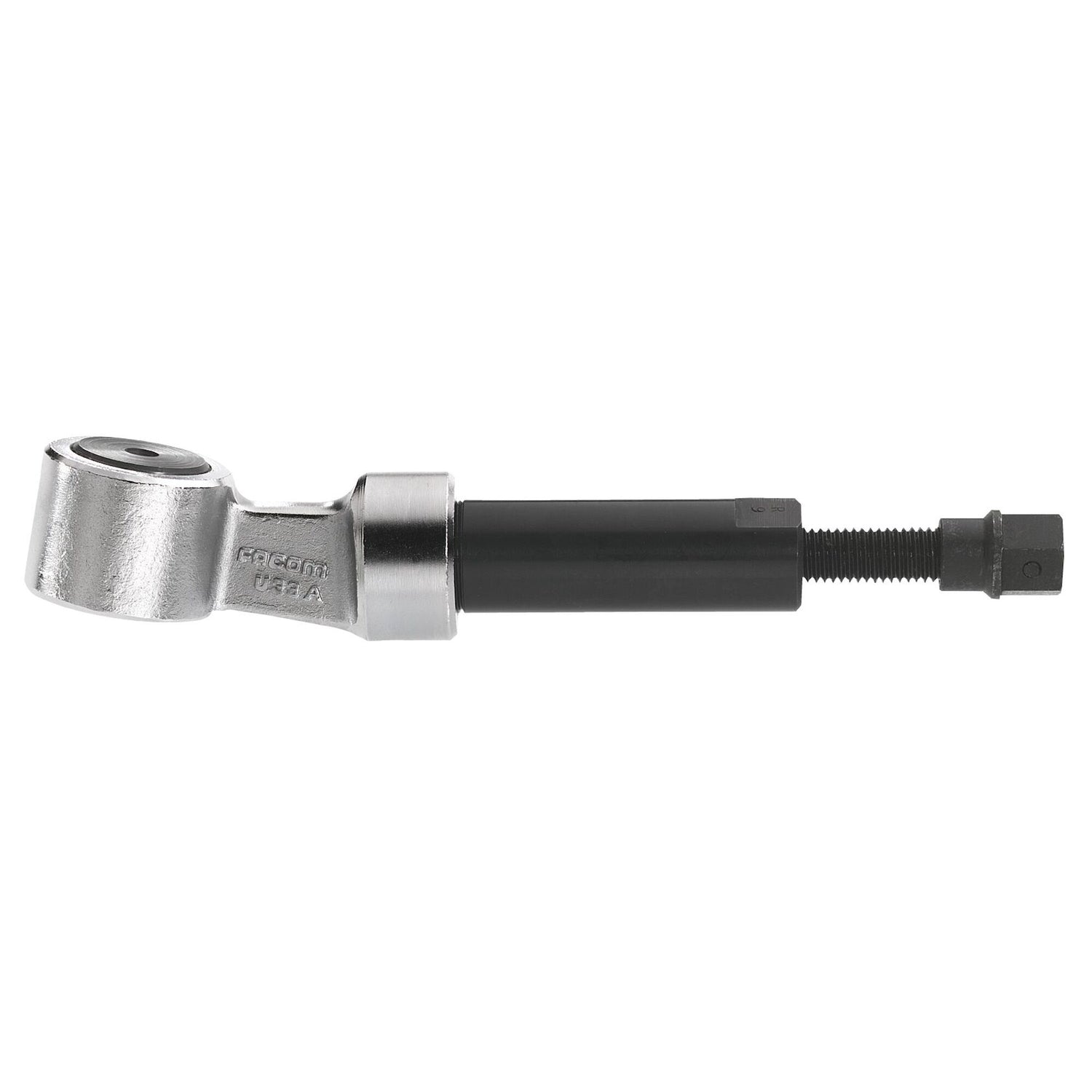

Mechanical screw 30 t jack

SKU: U.33A - Barcode: 3148510681306

Piston travel: 5 mm.
Pin shearing at 110 N.m.
Supplied with 3 spare pins, and 2 shims 25 and 50 mm high (Ø 40 mm).
Set of 3 spare pins. U.33GJ3.
Set of 2 spare blocks: U.33-EMB.
Piston Ø: 33 mm.
Length: 260 mm; head height: 36 mm.
Power: 30 tonnes; 300 kN.
6-point screw size 19 mm.

Full product description

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description

Piston travel: 5 mm.
Pin shearing at 110 N.m.
Supplied with 3 spare pins, and 2 shims 25 and 50 mm high (Ø 40 mm).
Set of 3 spare pins. U.33GJ3.
Set of 2 spare blocks: U.33-EMB.
Piston Ø: 33 mm.
Length: 260 mm; head height: 36 mm.
Power: 30 tonnes; 300 kN.
6-point screw size 19 mm.

Specifications

Longueur du produit260 mm
Marquage CEOui
Nombre de broches / embouts de rechange5
Nombre de pièces6
Poids net2 Kg

Spare parts

SHIM - U.33-EMB
PIN - U.33GJ3

Documents

User manual

Mechanical screw 30 t jack

Piston travel: 5 mm.
Pin shearing at 110 N.m.
Supplied with 3 spare pins, and 2 shims 25 and 50 mm high (Ø 40 mm).
Set of 3 spare pins. U.33GJ3.
Set of 2 spare blocks: U.33-EMB.
Piston Ø: 33 mm.
Length: 260 mm; head height: 36 mm.
Power: 30 tonnes; 300 kN.
6-point screw size 19 mm.

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

This product is covered by a 3-year warranty
