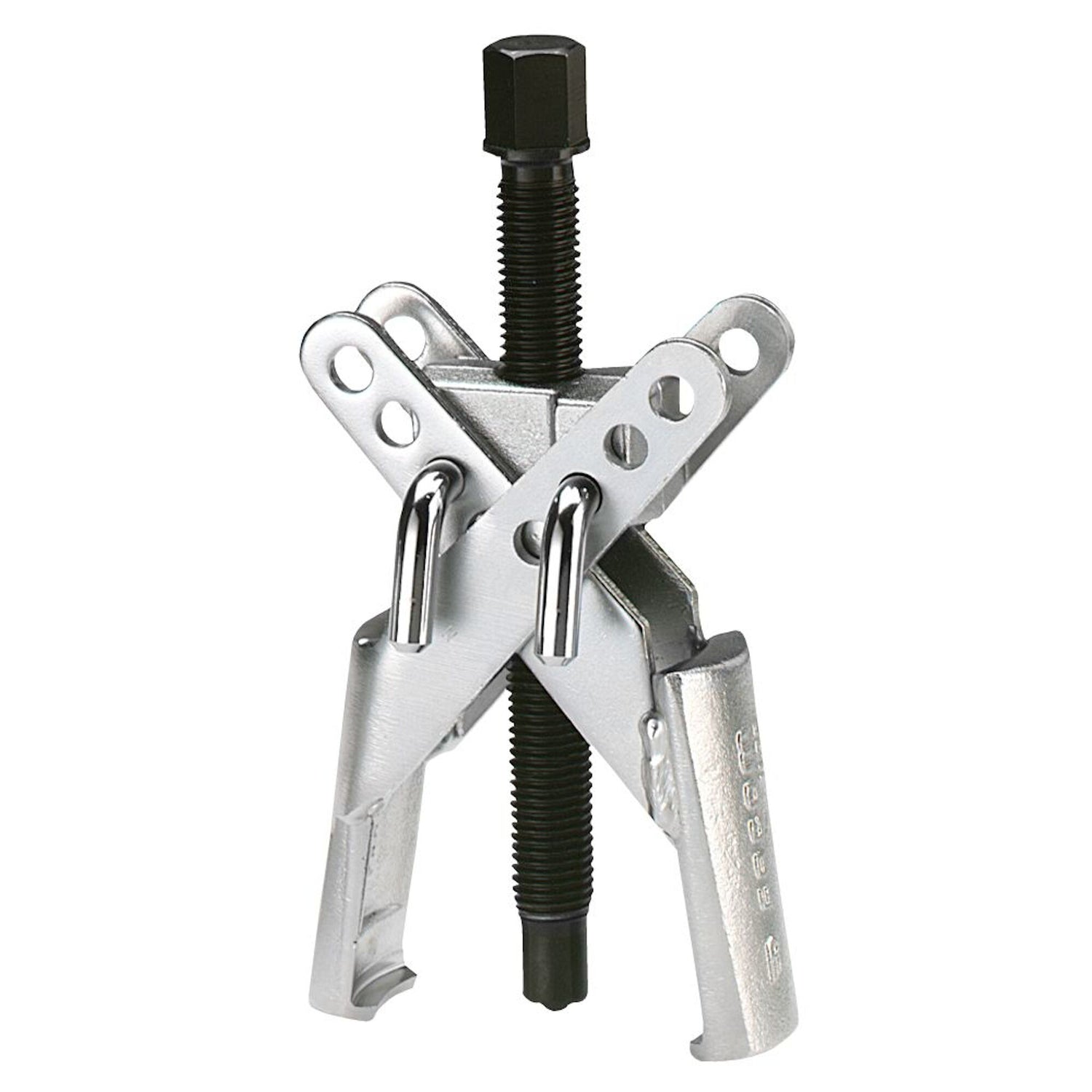

U.35 - Pullers with outside wide legs

SKU: U.35 - Barcode: 3148510683003

Safety: use in "uncrossed legs" configuration doubles capacity, but the "cross-legged" configuration should be used preferably.
Adaptable puller accessory: slide hammer U.306M for U.35 and U.35L.
Set of 2 spare pins: - U.42-5J2 for U.35P. - U.35-5J2 for U.35 and U.35L.
Capacity diameter 15 -75 mm.
Capacity 4 t.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Safety: use in "uncrossed legs" configuration doubles capacity, but the "cross-legged" configuration should be used preferably.
Adaptable puller accessory: slide hammer U.306M for U.35 and U.35L.
Set of 2 spare pins: - U.42-5J2 for U.35P. - U.35-5J2 for U.35 and U.35L.
Capacity diameter 15 -75 mm.
Capacity 4 t.

Specifications

Technical drawing and dimensions

		H (mm)	L (mm)
U.35	[U.35] Pullers with outside wide legs, depth 90 mm	183.00	68.00
U.35L	[U.35L] Pullers With Outside Wide Legs, Depth 130 mm	225.00	90.00
U.35P	[U.35P] 75mm Puller With Outside Wide Legs	140.00	65.00

Spare parts

PIN - U.35-5J2
LEG - U.35C
SCREW - U.35SE1
