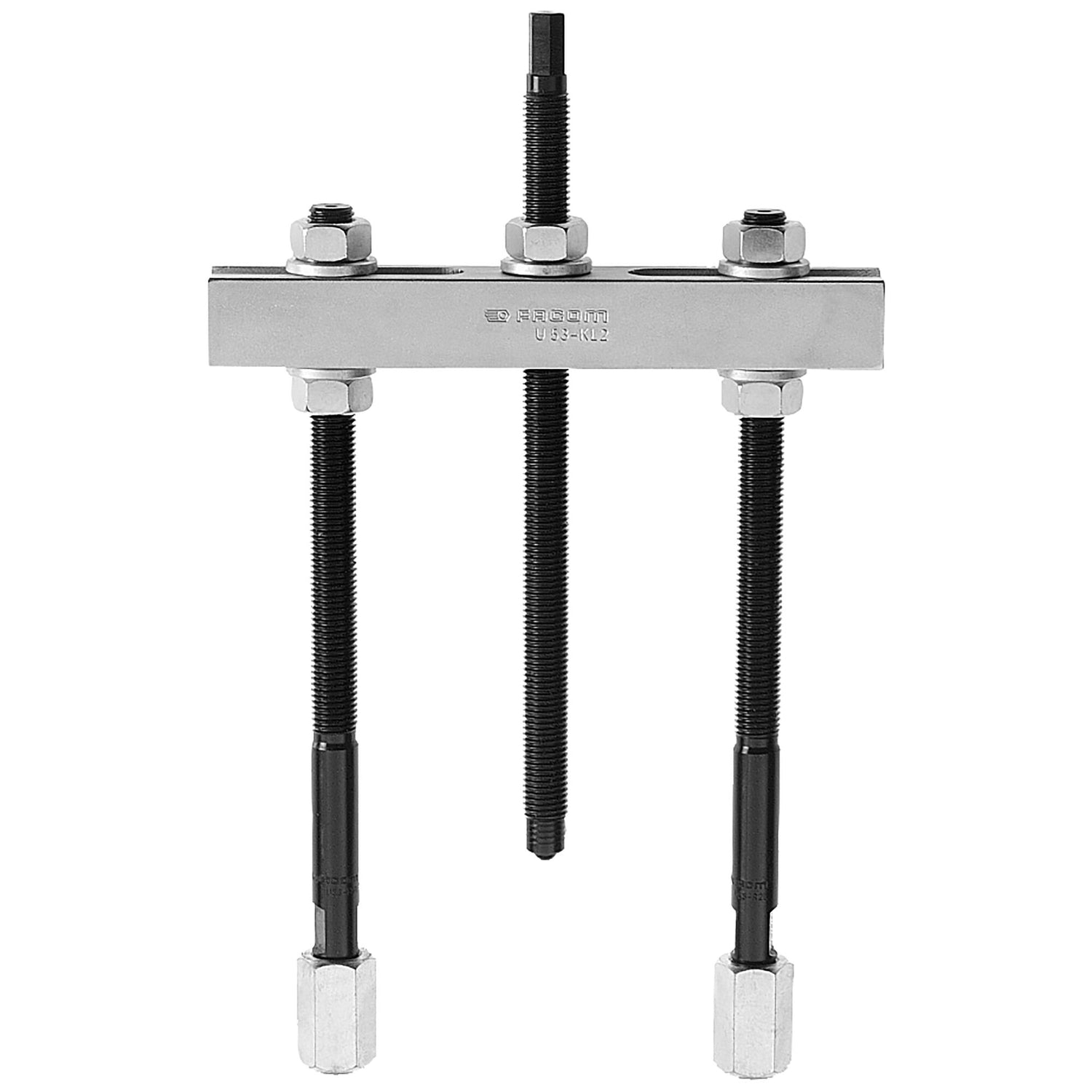

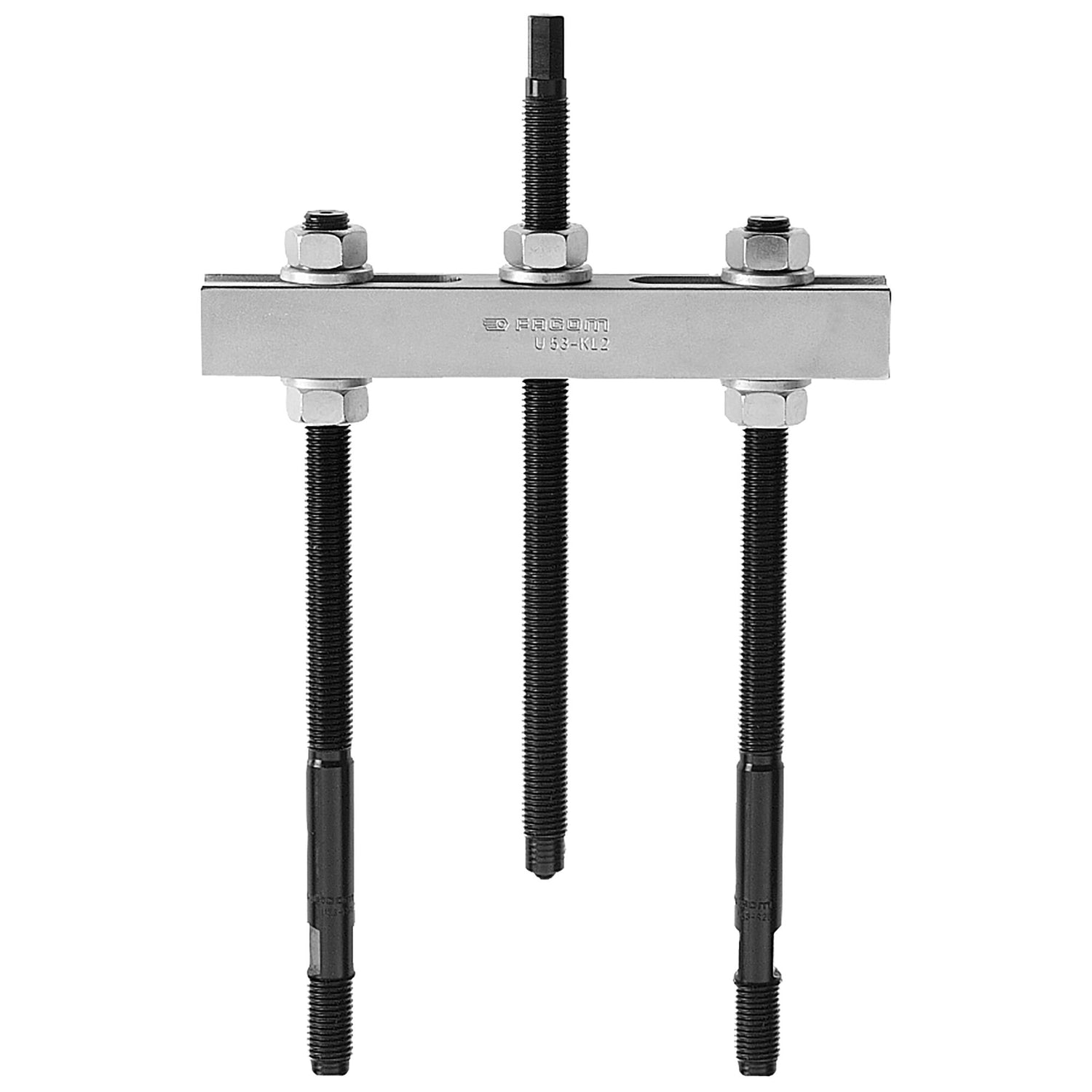

U.53KL - Non tapped beams for U.53

SKU: U.53KL0  -  Barcode: 3148516948403

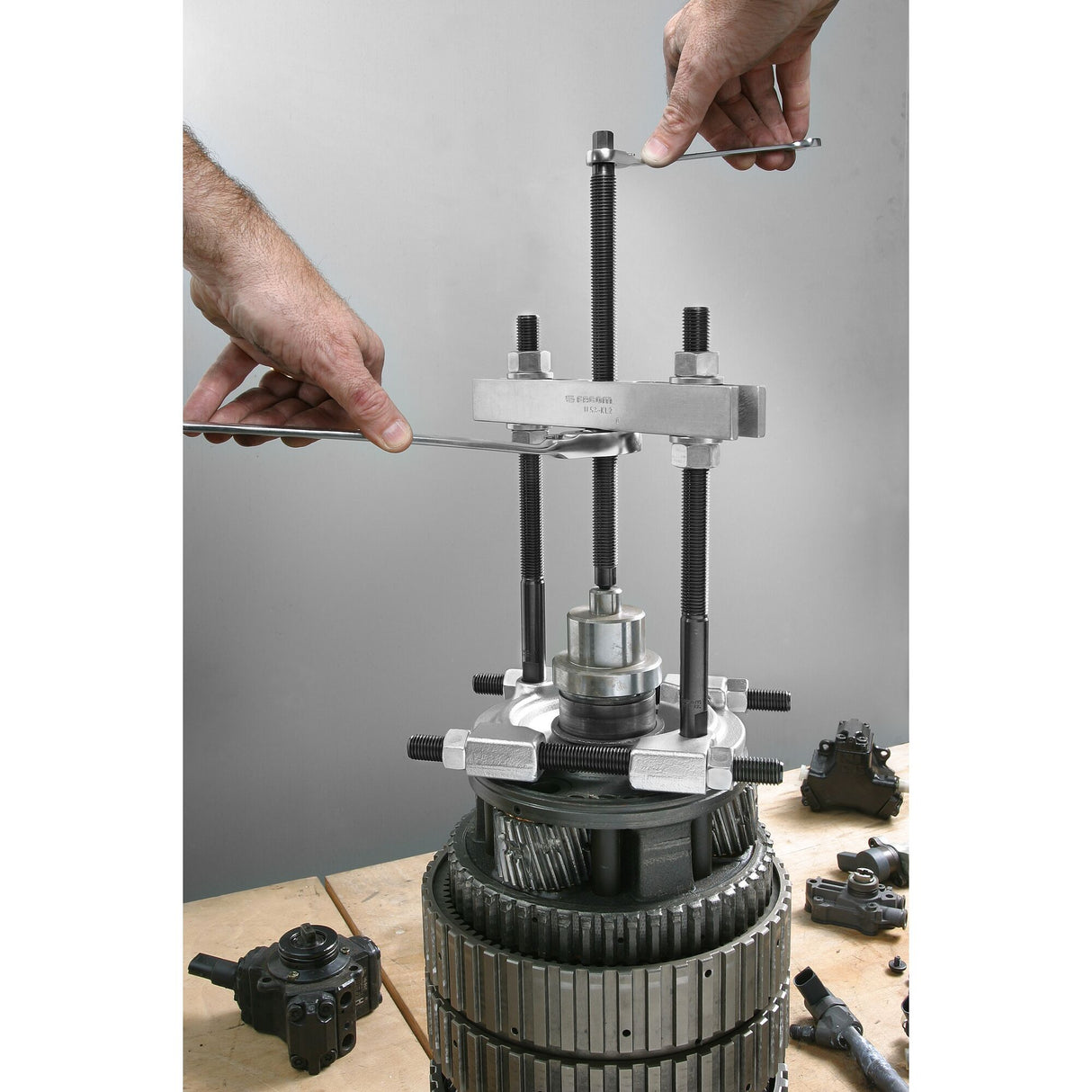

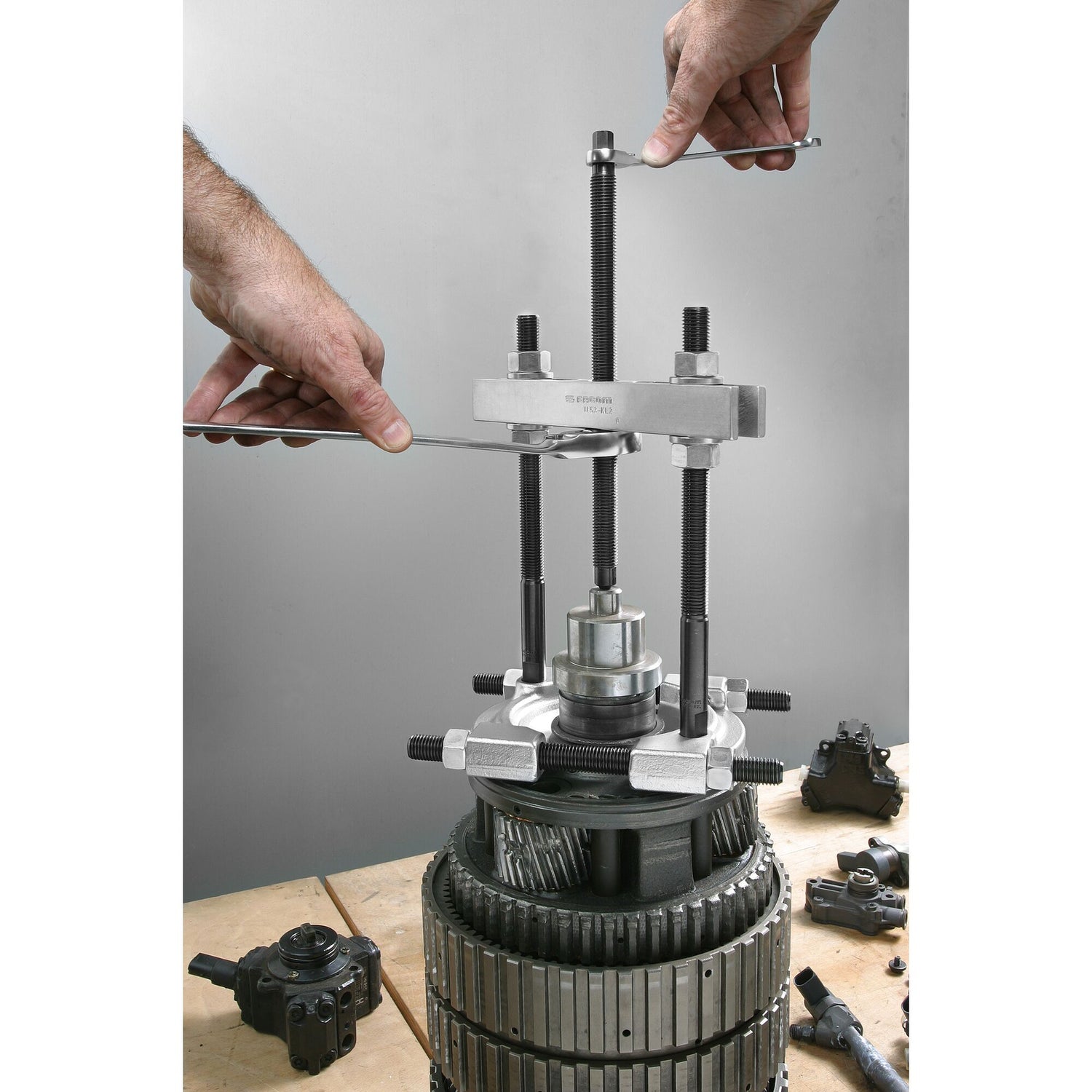

  • Non tapped beams allow to use clamps U.49P1 to U.49P9 to extract bearings by inside grip.
  • U.53KL0: for clamps U.49P1 to U.49P4.
  • Spread: Ø 25 to 200 mm.
  • M8.
  • Capacity 1 t.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • Non tapped beams allow to use clamps U.49P1 to U.49P9 to extract bearings by inside grip.
  • U.53KL0: for clamps U.49P1 to U.49P4.
  • Spread: Ø 25 to 200 mm.
  • M8.
  • Capacity 1 t.

Specifications
  • Auto-préhensionNon
  • Capacité maximale du clip25,100 mm
  • DiamètreM8 mm
  • Longueur du produit110 mm
  • Largeur du produit20 mm
  • Marquage CEOui
  • Nombre de pièces1
  • Poids net0.4 Kg
  • Profil d'extracteurBoulon en U
  • Poignée spécialeNon
  • RéversibleNon
  • Taille clé hexagonale6 mm
  • Tonne (T)1T
  • Type de diamètre d'entrainement du goujonDiamètre unique

Technical drawing and dimensions

D1 (mm)L1 (mm)L2 (mm)L3 (mm)L (mm)
U.53KL0 [U.53KL0] 25 - 100 mm Non Tapped Beams for U.53 6.00155.0020.0020.00110.00
U.53KL2 [U.53KL2] Non-Tap Beams for U.53, 70 - 200 mm 11.00280.0030.0030.00220.00

Documents

U.53KL - Non tapped beams for U.53

References available

  • [U.53KL0] 25 - 100 mm Non Tapped Beams for U.53
  • [U.53KL2] Non-Tap Beams for U.53, 70 - 200 mm

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
