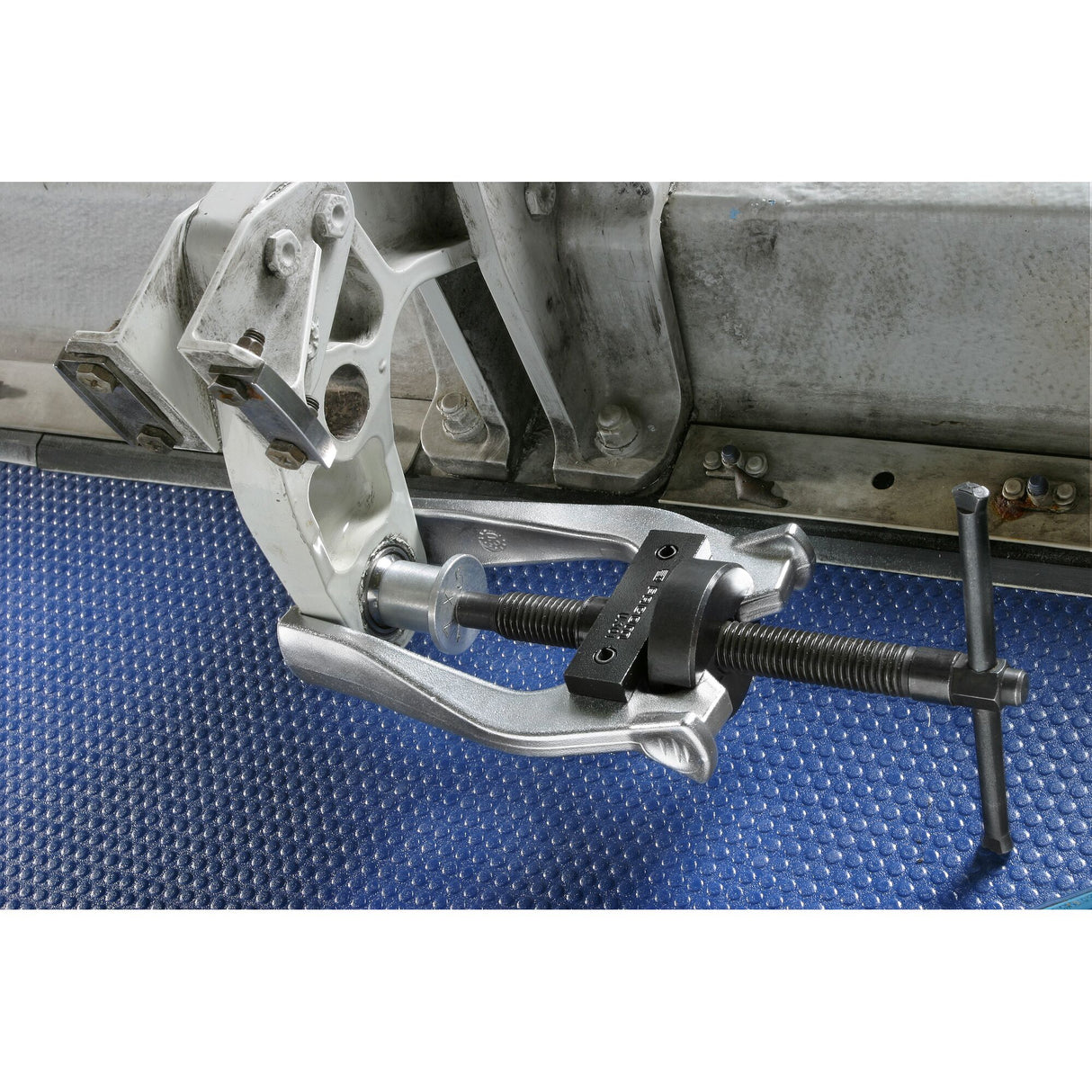

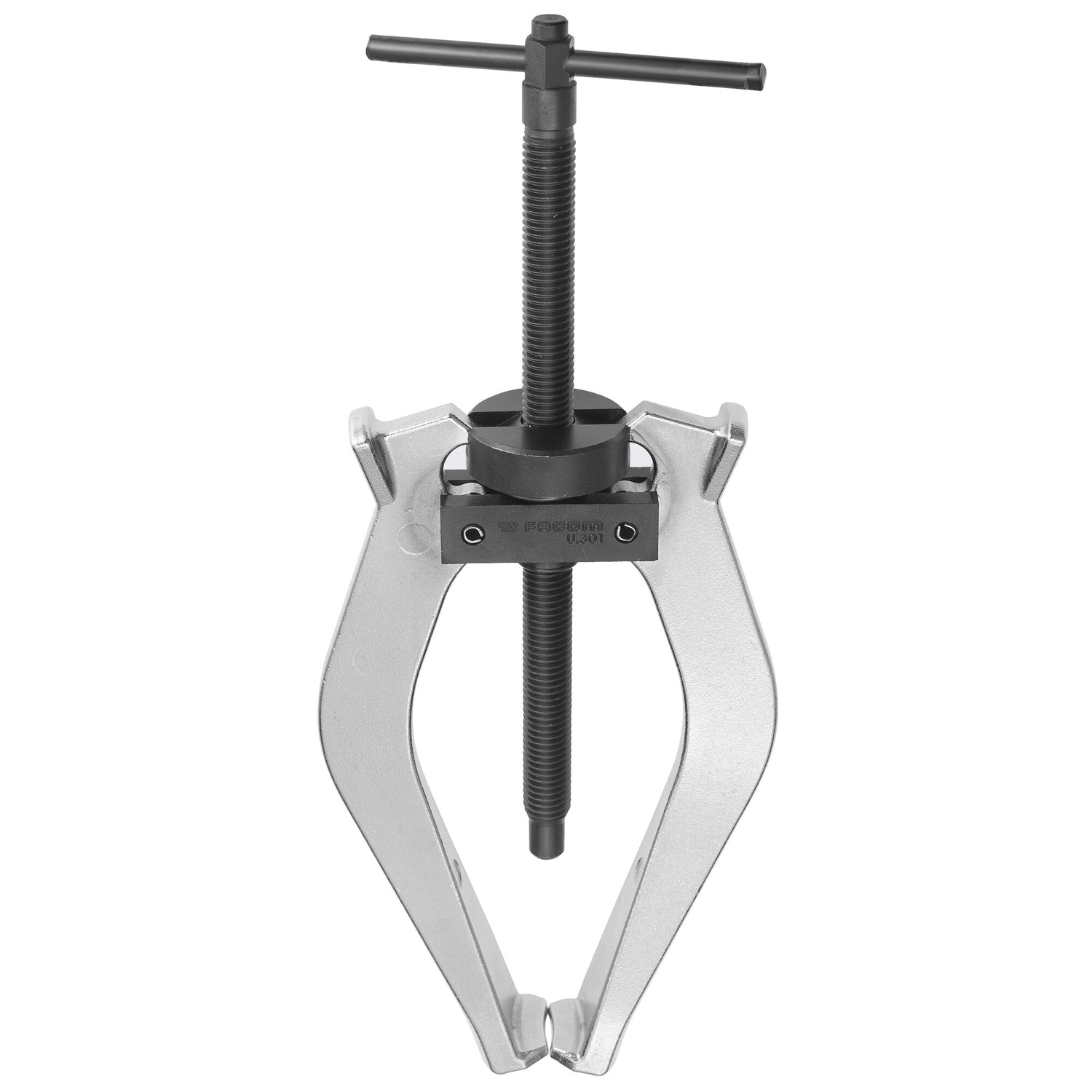

U301M - Self-gripping outside pullers with wide legs

SKU: U.301L - Barcode: 3148516946478

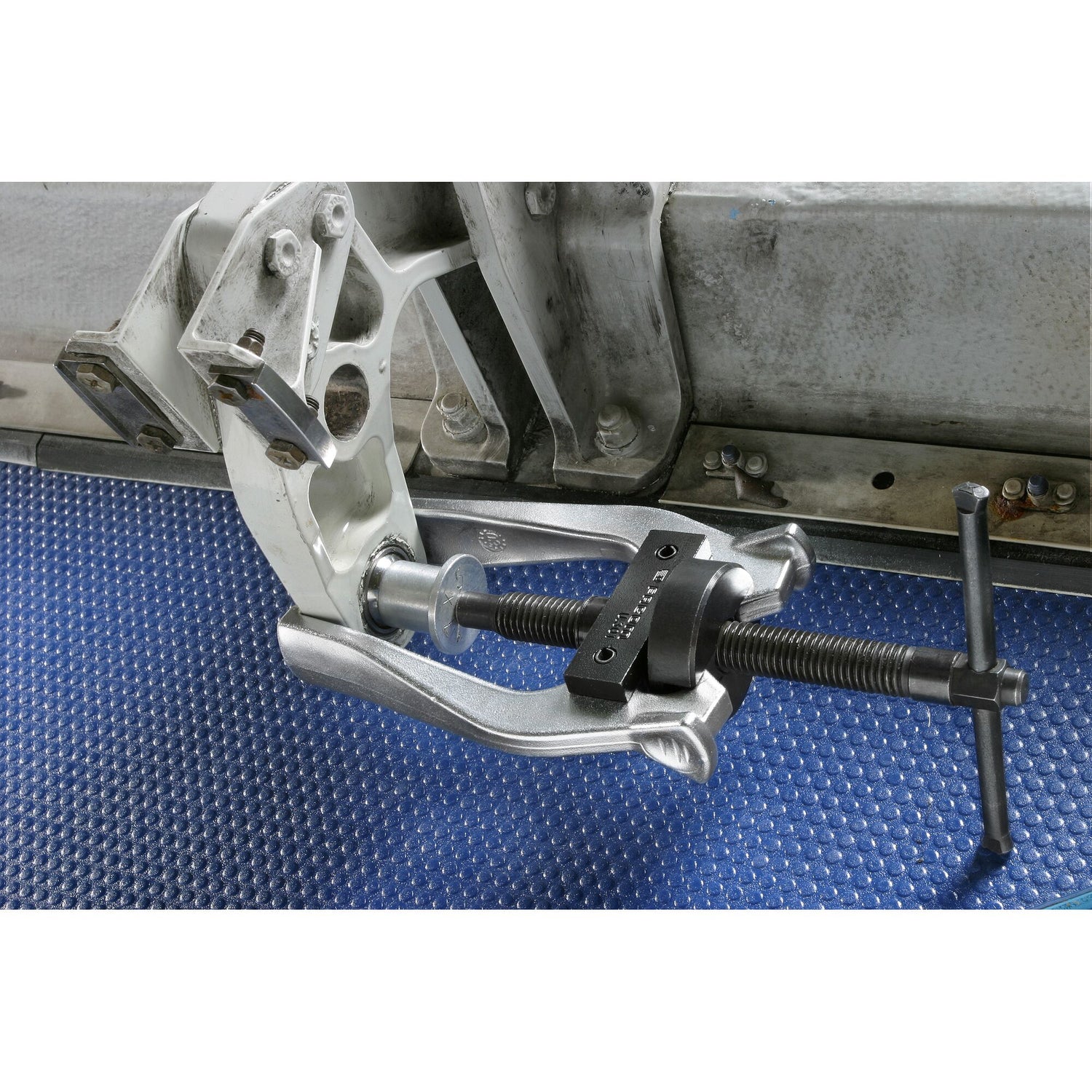

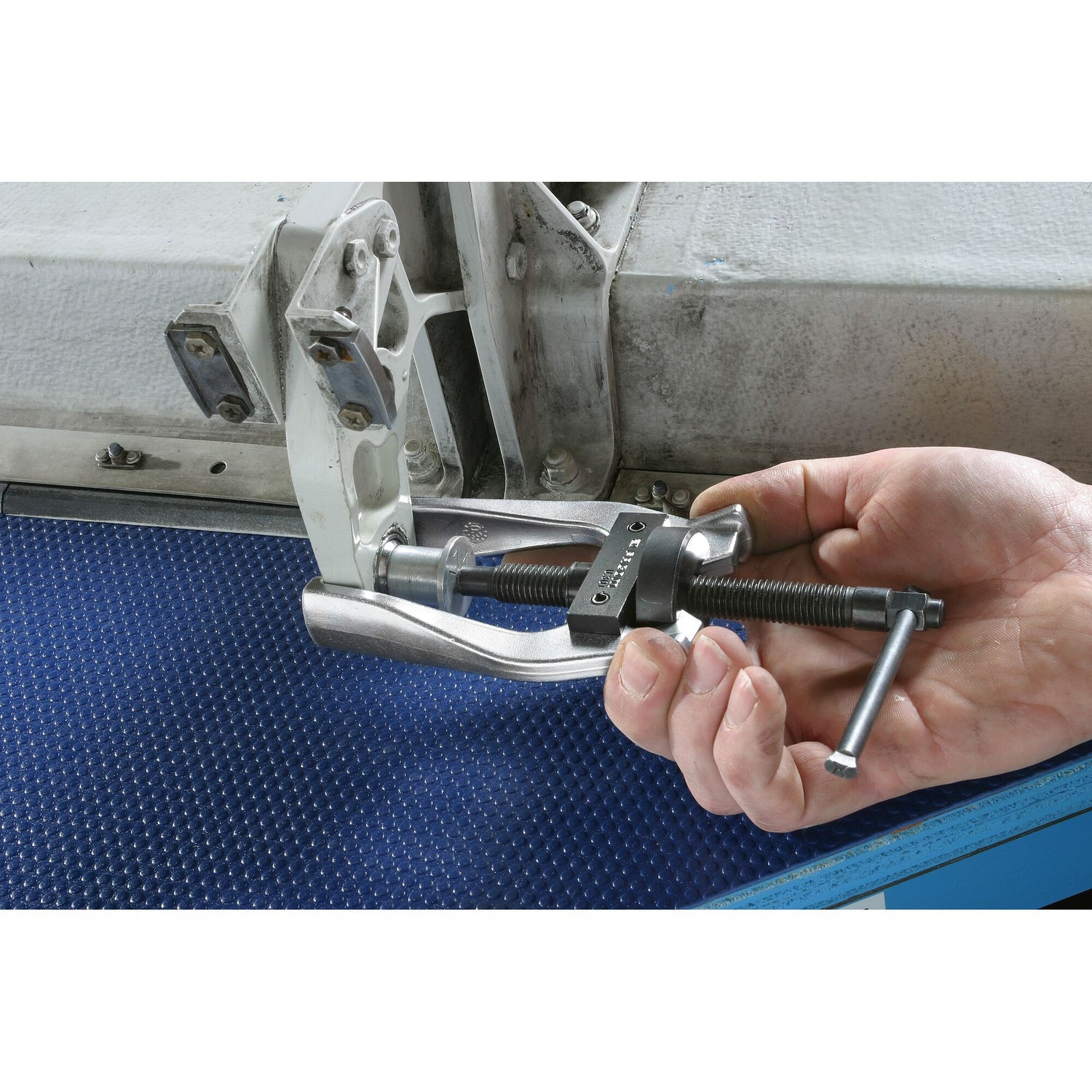

Comfort: self-gripping legs by return spring. The puller stays in position on the bearing even when not in tension.
Safety: a power restrictor pin is pressed when the force applied is too strong.
Adaptable puller accessory: slide hammer U.49AM. - Per tip U.301E1 (U.301P and U.301M). - Per tip U.301E2 (U.301L).
Capacity diameter 15-110 mm.
Capacity 1,3 t.

Full product description

References available Reference comparison

Product variants

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description

Comfort: self-gripping legs by return spring. The puller stays in position on the bearing even when not in tension.
Safety: a power restrictor pin is pressed when the force applied is too strong.
Adaptable puller accessory: slide hammer U.49AM. - Per tip U.301E1 (U.301P and U.301M). - Per tip U.301E2 (U.301L).
Capacity diameter 15-110 mm.
Capacity 1,3 t.

Specifications

Technical drawing and dimensions

		H (mm)	L (mm)
U.301L	[U.301L] Self-Grip Outside Puller With Wide Legs, 120 x 268 x 300 mm	300.00	120.00
U.301M	[U.301M] Self-Grip Outside Pullers With Wide Legs, 90 x 206 x 222 mm	222.00	90.00
U.301P	[U.301P] Self-gripping outside pullers with wide legs, 75 x 120 x 147 mm	147.00	75.00

Spare parts

SCREW - U.301L04
