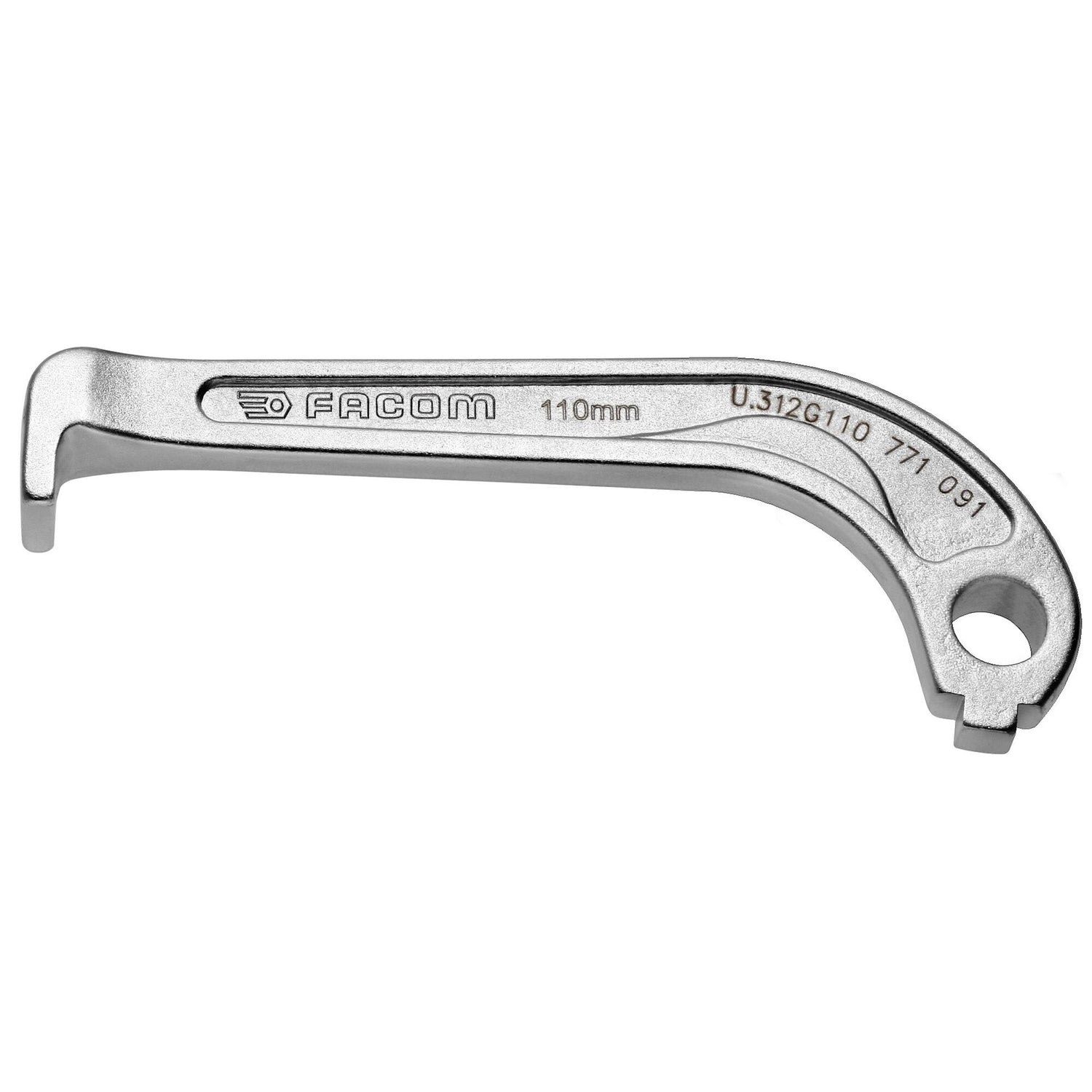

UG - Puller Legs for U.312HJ4

SKU: U.312G110  -  Barcode: 3148517710917
  • U.312HJ4 - Mounting with legs.
  • Capacity diameter 45 - 85 mm.
  • Capacity 10 t.
Full product description
Reference comparison

Warranty

This product is: Lifetime warranty on the tool (replacement)

Click here to learn more about our warranties.

Description
  • U.312HJ4 - Mounting with legs.
  • Capacity diameter 45 - 85 mm.
  • Capacity 10 t.

Specifications
  • Auto-préhensionOui
  • Capacité maximale du clip45-85 mm
  • Hauteur du produit355 mm
  • Longueur du produit175 mm
  • Largeur du produit7 mm
  • Nombre de griffes3
  • Nombre de broches / embouts de rechange1
  • Nombre de pièces1
  • Profondeur ouverture110 mm
  • Poids net0.4 Kg
  • Profil d'extracteurLarge
  • Poignée spécialeNon
  • RéversibleNon
  • Tonne (T)10T
  • Type de diamètre d'entrainement du goujonDiamètre unique

Technical drawing and dimensions

A (mm)H (mm)L (mm)
U.312G110 [U.312G110] Puller Legs for U.312HJ4, 110mm Capacity 7.00355.00155.00
U.312G160 [U.312G160] Puller Legs for U.312HJ4, 160 mm Capacity 7.00400.00218.00
U.312G210 [U.312G210] Puller legs for U.312HJ4, 210 mm capacity 7.00450.00275.00
U.312G260 [U.312G260] 280mm Puller Legs for U.312HJ4 7.00492.00330.00

Documents

UG - Puller Legs for U.312HJ4

References available

  • [U.312G110] Puller Legs for U.312HJ4, 110mm Capacity
  • [U.312G160] Puller Legs for U.312HJ4, 160 mm Capacity
  • [U.312G210] Puller legs for U.312HJ4, 210 mm capacity
  • [U.312G260] 280mm Puller Legs for U.312HJ4

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Lifetime warranty on the tool (replacement)
