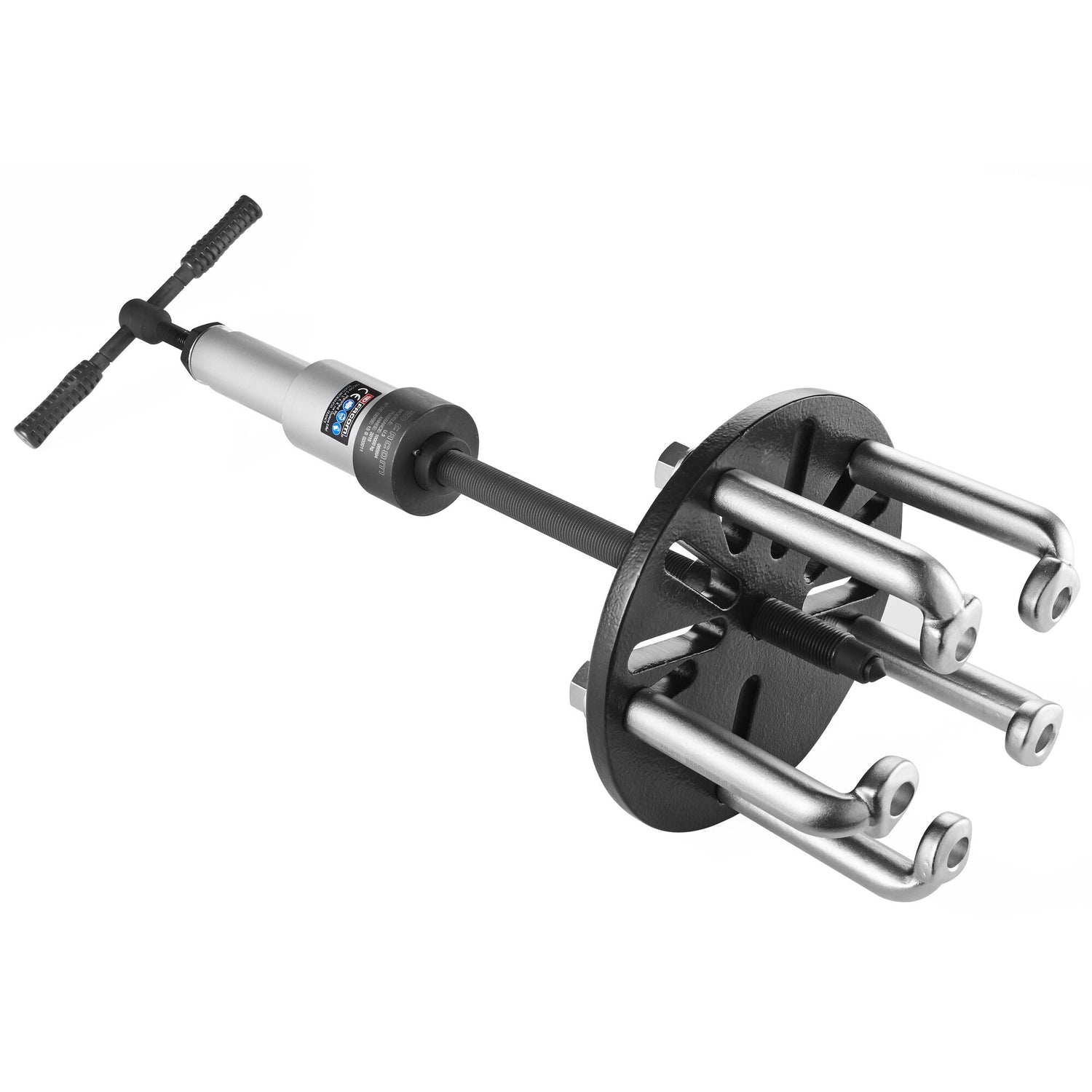

Universal Hydraulic Joint Pusher and Hub Puller

SKU: U.11VHA  -  Barcode: 3662424025723

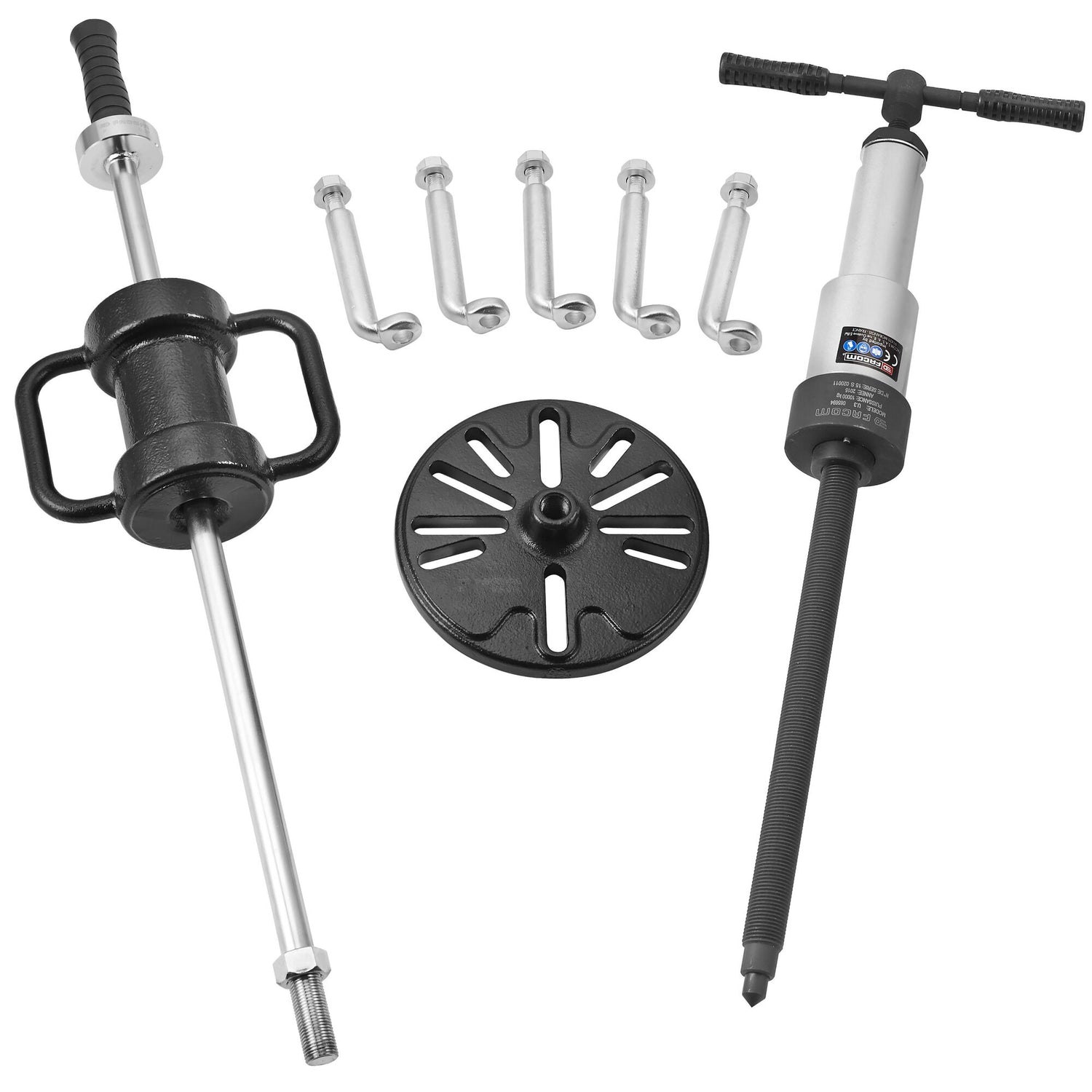

  • Complete set comprising:.
  • One hydraulic screw U.3 power 10 t, stroke 14 mm, threading M22X200.
  • Slide hammer U.2A of 9.8 kg ideal for SUVs, 4X4, Light utility vehicles. Rod length 750 mm, threaded length 70 mm. Diameter M22.
  • Tray U.9-01A diameter 236 mm. central threading M22. Suitable for 90%+ automotive fleet thanks to may solutions offered and the 5 legs.
  • 1 set of 5 legs U.9-02, length 169 mm. Diameter for wheel axles up to 16 mm.
Full product description
Reference comparison

Warranty

This product is: Please refer to the warranty for each item included in this set

Click here to learn more about our warranties.

Description
  • Complete set comprising:.
  • One hydraulic screw U.3 power 10 t, stroke 14 mm, threading M22X200.
  • Slide hammer U.2A of 9.8 kg ideal for SUVs, 4X4, Light utility vehicles. Rod length 750 mm, threaded length 70 mm. Diameter M22.
  • Tray U.9-01A diameter 236 mm. central threading M22. Suitable for 90%+ automotive fleet thanks to may solutions offered and the 5 legs.
  • 1 set of 5 legs U.9-02, length 169 mm. Diameter for wheel axles up to 16 mm.

Specifications
  • Poids net26.5 Kg

Documents

Universal Hydraulic Joint Pusher and Hub Puller

References available

  • [U.11VHA] Universal Hydraulic Joint Pusher and Hub Puller

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

Please refer to the warranty for each item included in this set
