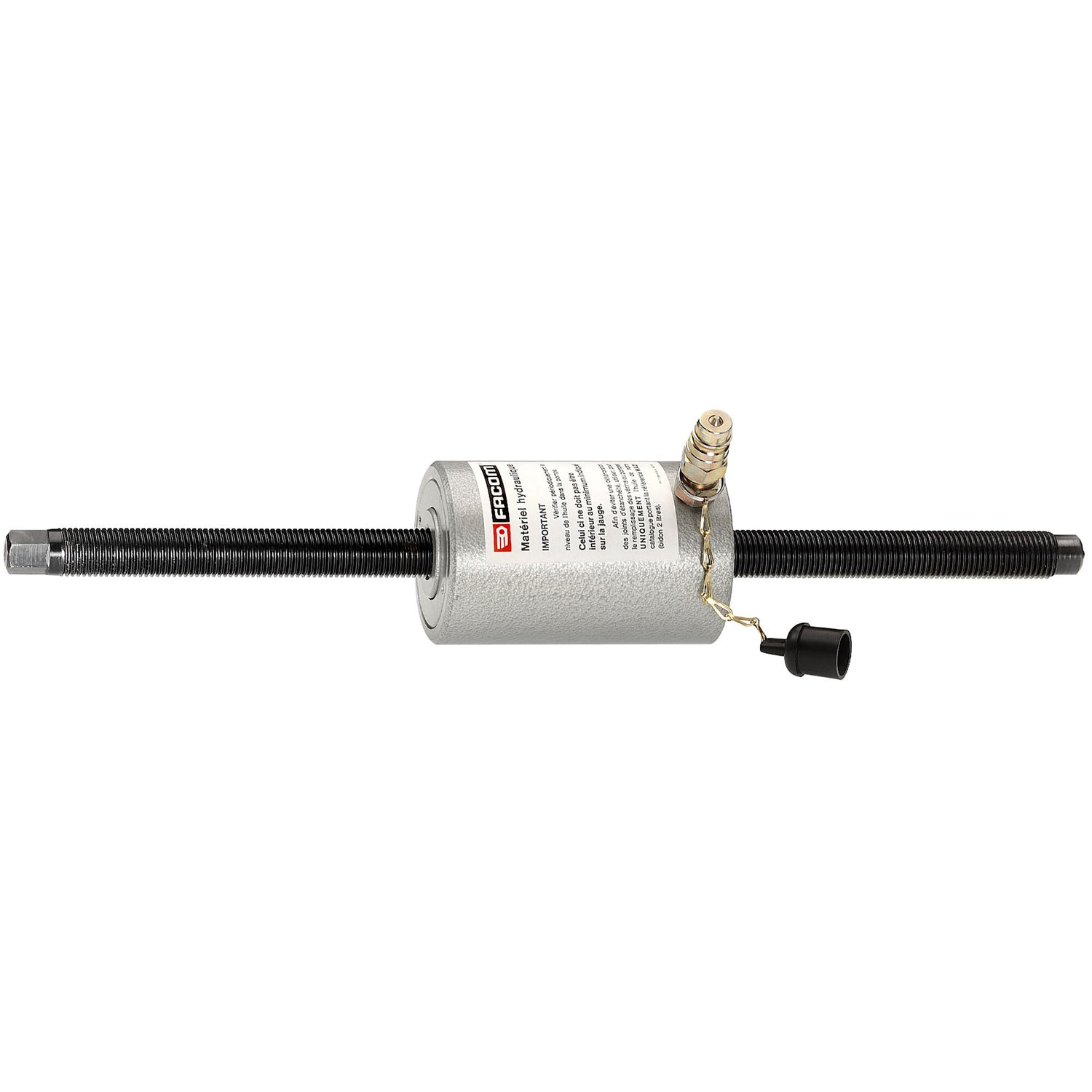

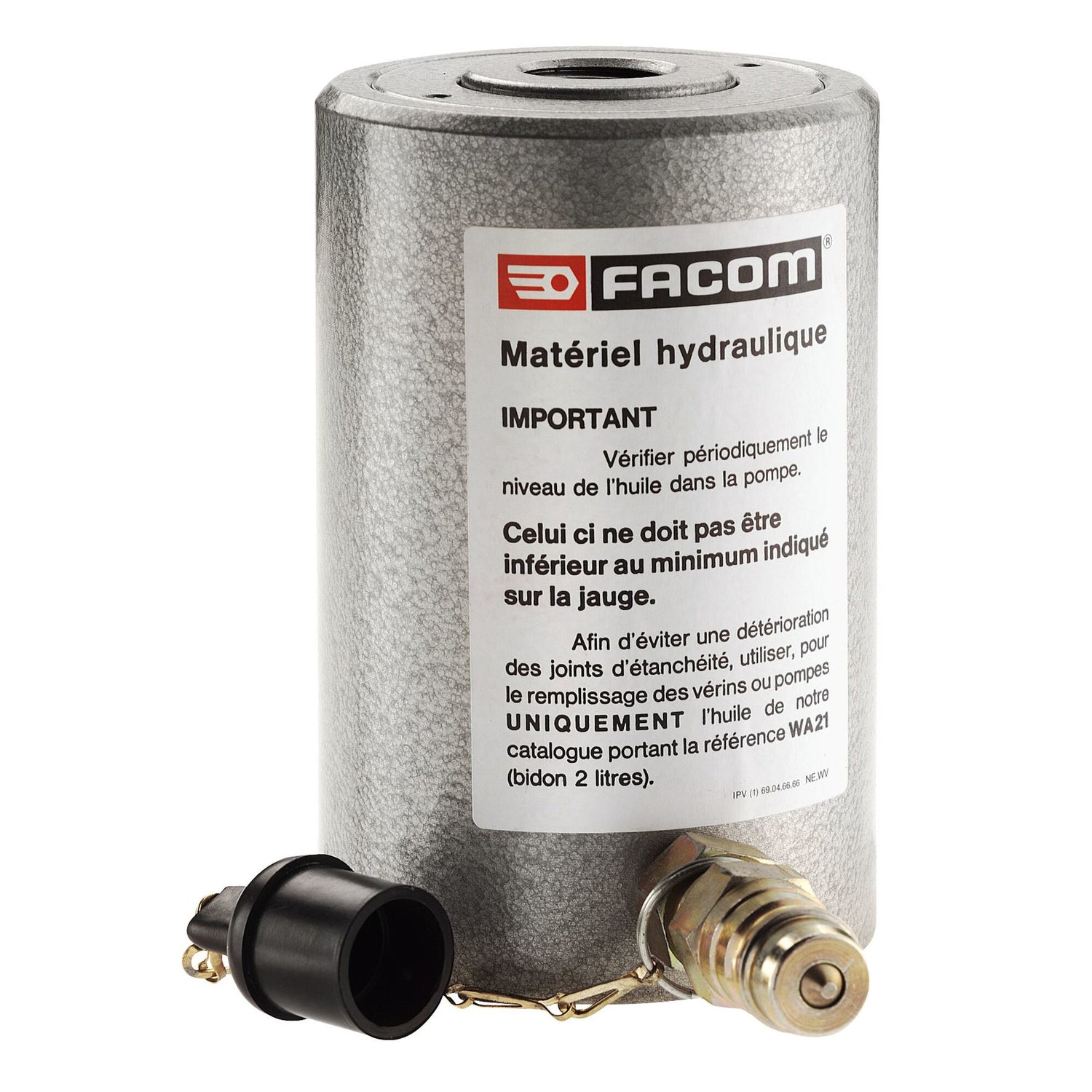

UWG - 20T and 30T hollow jacks for U.320H, U.330H

SKU: UWG.320  -  Barcode: 3148510763880
  • These jacks are intended for hydraulic pullers U.320H and U.330H in replacement or option on manual pullers U.320 and U.330 using special screws UWG.320H01 and UWG.330H01.
  • They are fitted with through taps receiving a central screw to work in pushing or traction.
  • Jacks activated with 700-bar pump UWP.10MA.
  • The use in jack function is possible.
  • Capacity 20 t.
  • Minimum height 160 mm.
Full product description
Reference comparison

Warranty

This product is: This product is covered by a 3-year warranty

Click here to learn more about our warranties.

Description
  • These jacks are intended for hydraulic pullers U.320H and U.330H in replacement or option on manual pullers U.320 and U.330 using special screws UWG.320H01 and UWG.330H01.
  • They are fitted with through taps receiving a central screw to work in pushing or traction.
  • Jacks activated with 700-bar pump UWP.10MA.
  • The use in jack function is possible.
  • Capacity 20 t.
  • Minimum height 160 mm.

Specifications
  • Diamètre impérial100 in
  • Hauteur du produit160 mm
  • Largeur du produit100 mm
  • Marquage CEOui
  • Nombre de pièces1
  • Poids net8 Kg
  • Taille clé hexagonale21 mm

Technical drawing and dimensions

D1 (mm)H (mm)
UWG.320 [UWG.320] 20t Hollow Jacks for U.320h, U.330H 23.80160.00
UWG.330 [UWG.330] 20 t and 30 t hollow jacks for U.320H, U.330H, 30 t 29.00

Documents
User Guide

UWG - 20T and 30T hollow jacks for U.320H, U.330H

References available

  • [UWG.320] 20t Hollow Jacks for U.320h, U.330H
  • [UWG.330] 20 t and 30 t hollow jacks for U.320H, U.330H, 30 t

Lieu de fabrication

N/A

Normes & certifications

N/A

Période de garantie

This product is covered by a 3-year warranty
