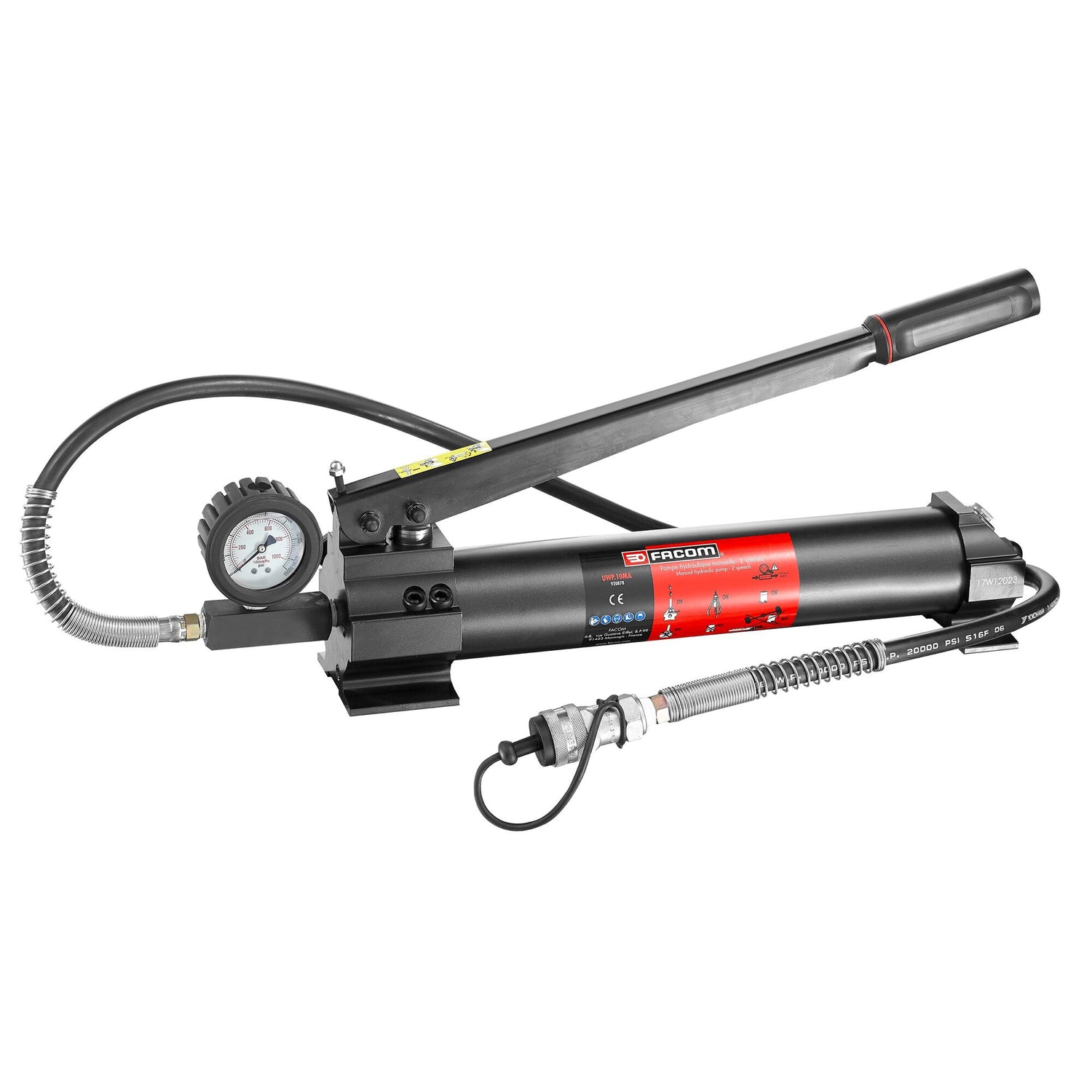

2-Speed Hydraulic Hand Pump

SKU: UWP.10MA - Barcode: 3148519208788

Manual pump with pressure gauge and relief valve, giving 2 flow rates: - 1st stage: high flow, max pressure: 50 bar. - 2nd stage: low flow, max pressure: 700 bar.
Use with pullers U.320H, U.330H and hollow cylinders UWG.320, UWG.330.
Oil capacity: 1500 to 2500 cm3.
Supplied with a 1.80 m hose with a female quick coupler WA.1166F.
Size: 450 x 170 x 160 mm.

Full product description

Warranty

This product is: This product is covered by the statutory warranty

Click here to learn more about our warranties.

Description

Manual pump with pressure gauge and relief valve, giving 2 flow rates: - 1st stage: high flow, max pressure: 50 bar. - 2nd stage: low flow, max pressure: 700 bar.
Use with pullers U.320H, U.330H and hollow cylinders UWG.320, UWG.330.
Oil capacity: 1500 to 2500 cm3.
Supplied with a 1.80 m hose with a female quick coupler WA.1166F.
Size: 450 x 170 x 160 mm.

Specifications

Spare parts

CAP - 5170073-28
MANOMETER - UWP.10MA01
HOSE - UWP.10MA02
CONNECTOR - UWP.10MA03
KNOB - UWP.10MA04
JOINT - UWP.10MA06

Documents

User manual
