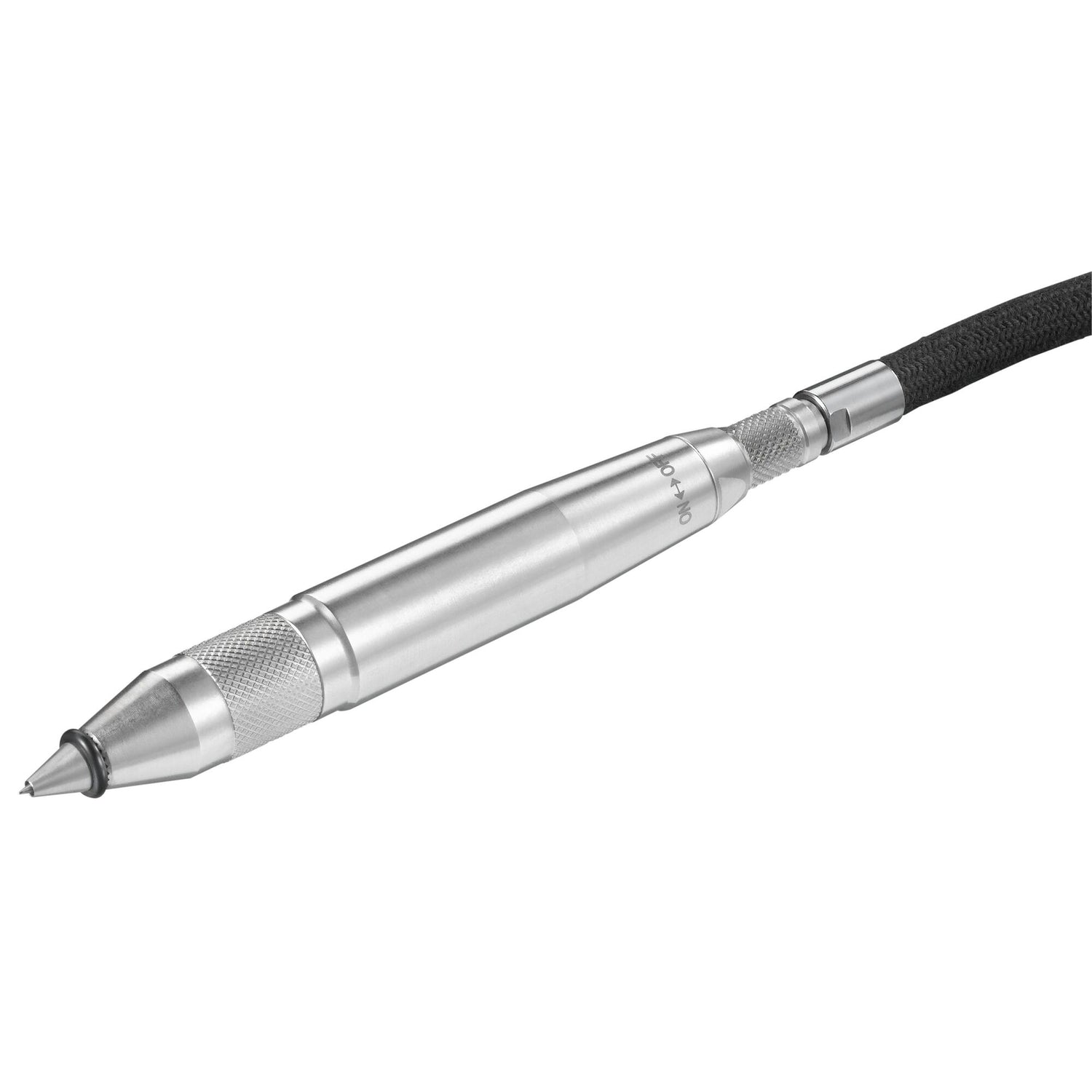

Scriber

• Pen shaped engraver makes the tool easy to handle.
• Tungsten point allows fast engraving on the hardest of materials: steel, stone, glass, ceramics at 600 impacts per second.
• Ring shaped regulator allows the operator to set the speed to suit his applications.
• Less than 80 dB(A) of sound increases operator comfort.
• Robust aluminium casted housing for high durability.
• Blows per minute 600 cpm.
• Working pressure 6,2 bar.
• Average air consumption 30 l/min.
• Average air consumption 1,1 l/min.
• Air inlet 1/4".
• Minimum hose diameter 10 mm - 3/8”.
• Vibration 3,80 m/s²/a.
• Vibration 0,88 m/s²/K.
• Sound pressure 69,60 dB(A).
• Sound power 80,60 dB(A).
• Delivered with: - Supply hose 1.5 m. - A standard tip.
• Available as accessories: - Standard tip: V.820A1. - Fine tip: V.820A2.

CAP - 1004735-88
TIP - V.820F1
TIP - V.820F2
SERVICE KIT - V.820FKEC
VALVE SEAT - V.820FKR1
CASING - V.820FSAV01
CASING - V.820FSAV02
REGULATOR - V.820FSAV03
CAP - V.820FSAV04
GUIDE SUPPORT - V.820FSAV06
HOSE - V.820FSAV11
