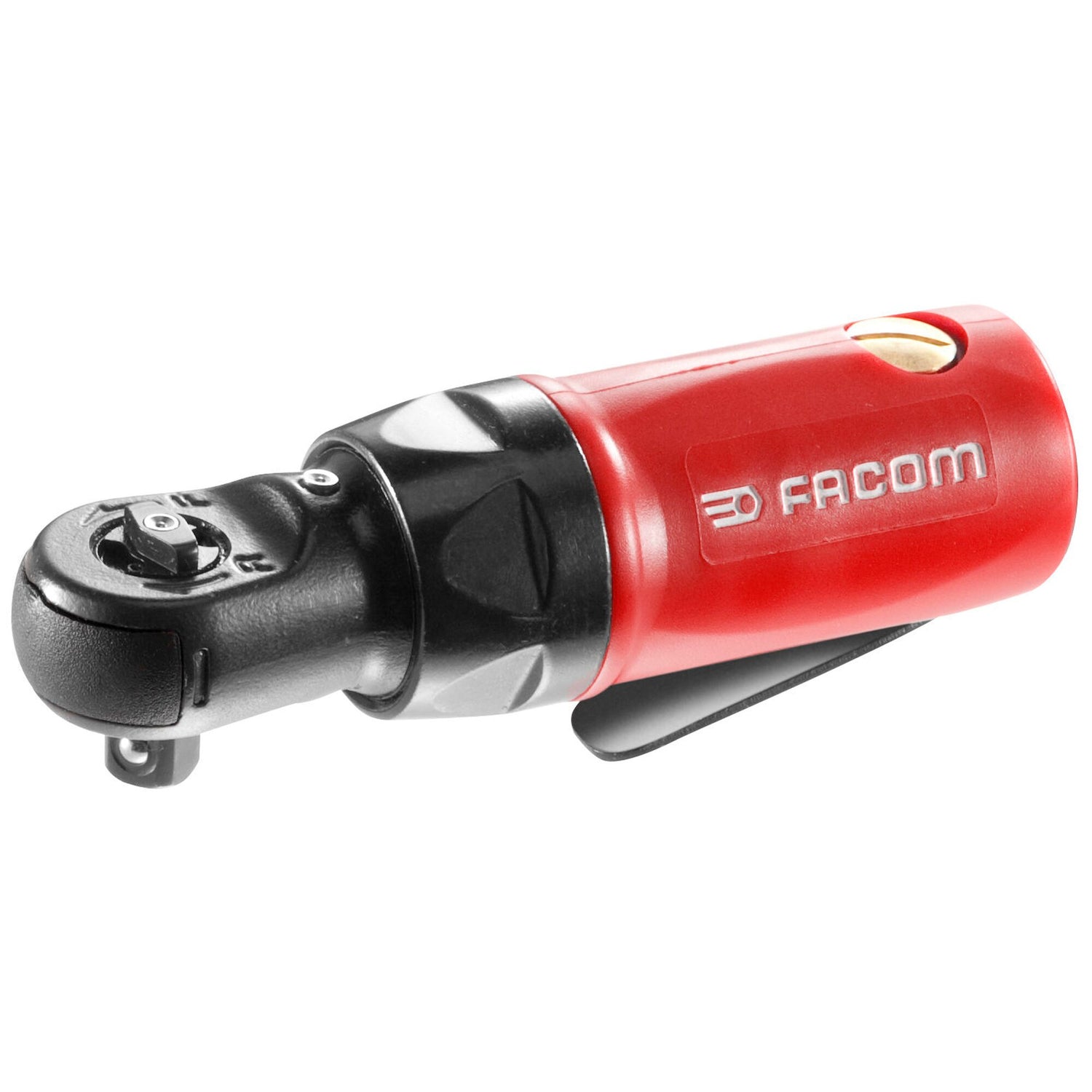

3/8 in. Palm Control Ratchet

SKU: VR.J154 - Barcode: 3148519221954

Durable ratchet head mechanism with closed head design: prevents dust and particles to damage the head.
Easily accessible forward reverse switch, even usable with greasy hands.
Accessible nipple for convenient greasing of the head and gears.
Insulating rubber sleeve covering a lightweight aluminium housing.
Speed easily regulated with a screwdriver.
Rear exhaust drives the air away from the workplace.
Feather teasing trigger for optimal speed regulation.
Socket ball retainer for safety.
29 mm slim profile head.

Full product description

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Durable ratchet head mechanism with closed head design: prevents dust and particles to damage the head.
Easily accessible forward reverse switch, even usable with greasy hands.
Accessible nipple for convenient greasing of the head and gears.
Insulating rubber sleeve covering a lightweight aluminium housing.
Speed easily regulated with a screwdriver.
Rear exhaust drives the air away from the workplace.
Feather teasing trigger for optimal speed regulation.
Socket ball retainer for safety.
29 mm slim profile head.

Specifications

Diamètre56 mm
Hauteur du produit36 mm
Longueur du produit136 mm
Largeur du produit56 mm
Marquage CEOui
Nombre de pièces1
Poids net0.5 Kg
Source d’alimentationPneumatique

Technical drawing and dimensions

H (mm)

56.00
L1 (mm)

36.00
L (mm)

136.00

Spare parts

GEAR - 31G200022
HOUSING MOTOR - 31H200022
GRIP - 31K100144
INLET - 31K100146
SERVICE KIT - 31K100147
BEARING SET - 31K100159
ANVIL - 31K100162
VALVE KIT - 31K100163
PLATE KIT - 31K100164
CRANKSHAFT - 31K100165
PAWL - 31K100166
TRIGGER - 31K100167
GEAR SA - 31K100168
HOUSING - 31K100169
DEFLECTOR - 31K100170
CYLINDER - 31M200053
ROTOR - 31M200054
ROTOR BLADE - 31M200055
BEARING - 31R200266

Documents

User manual
