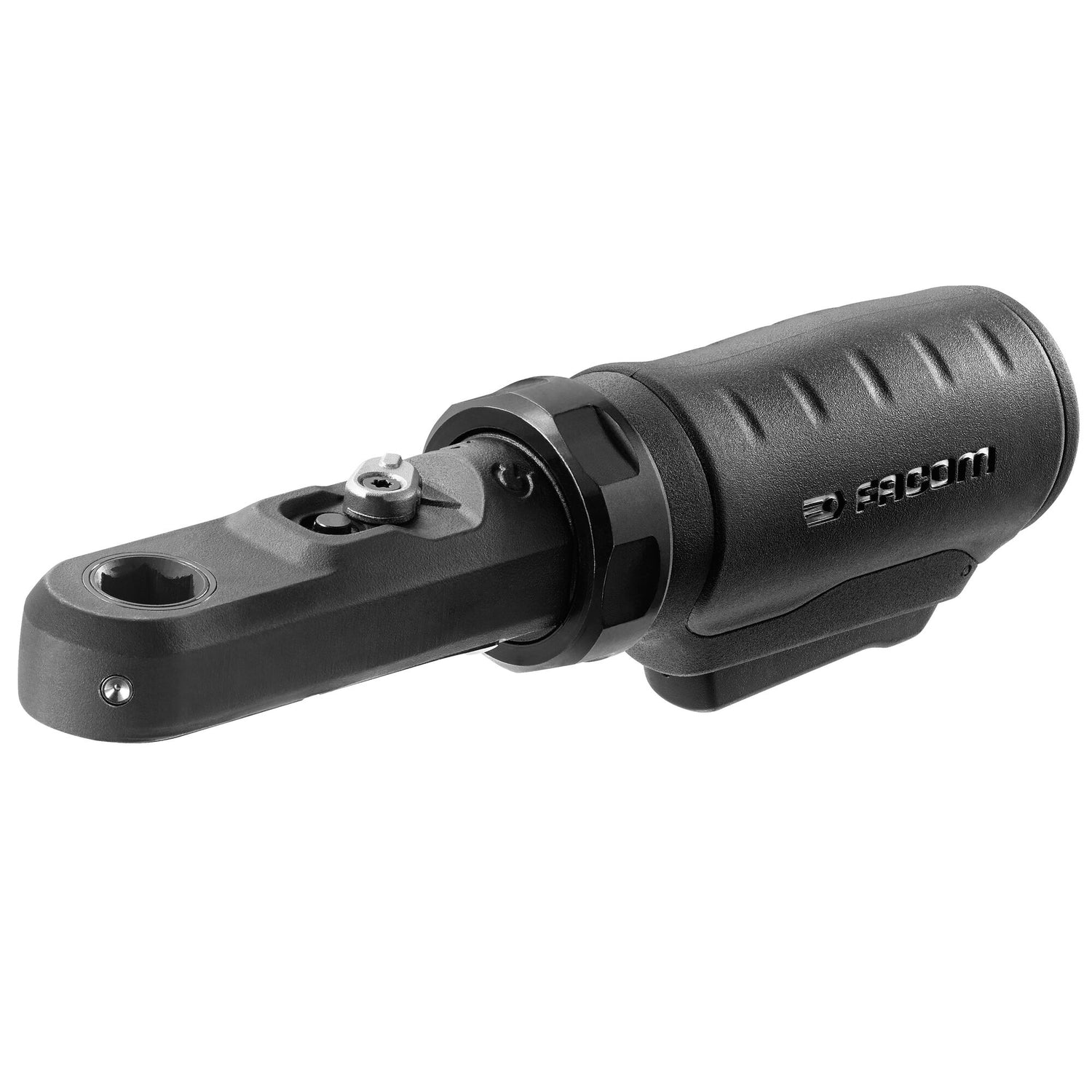

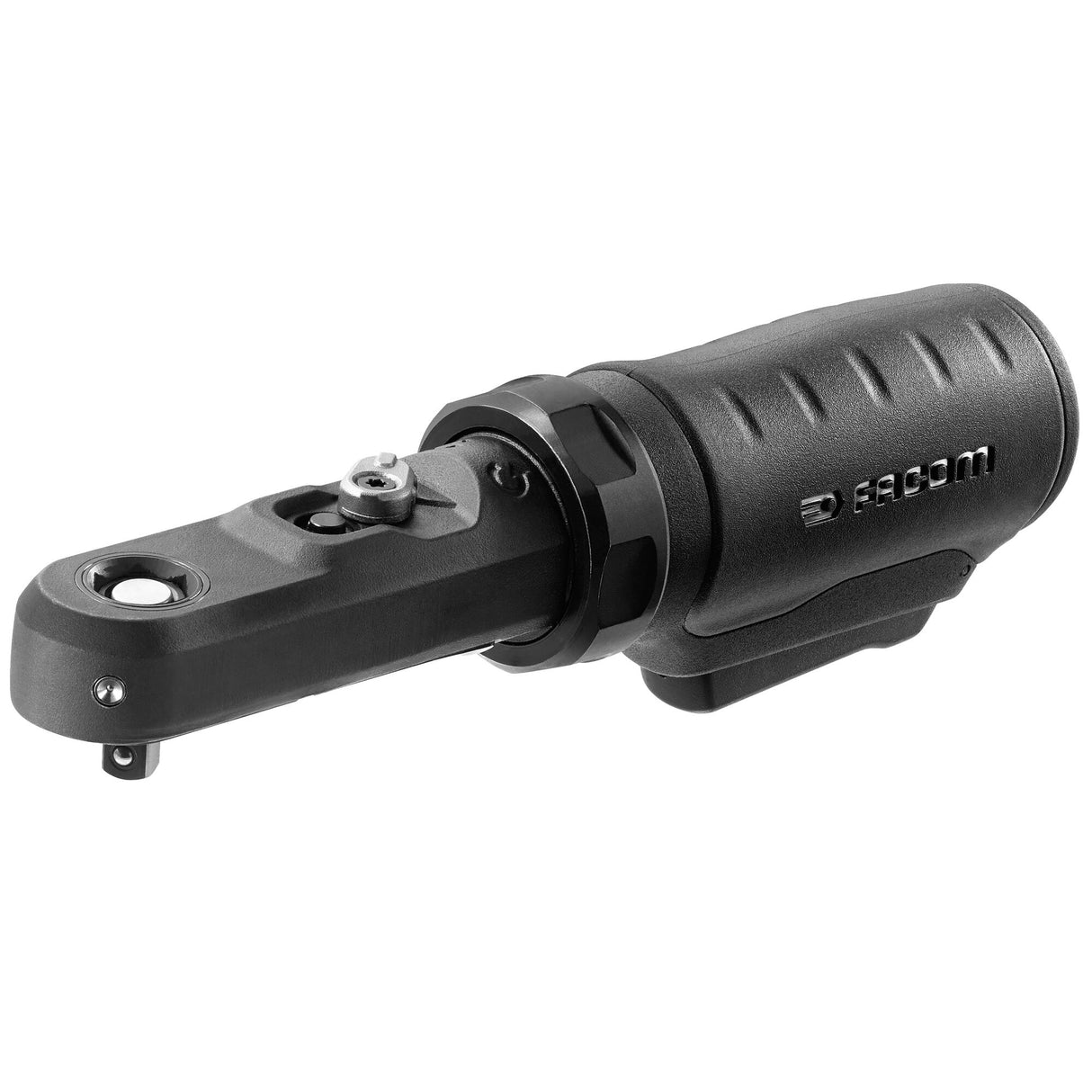

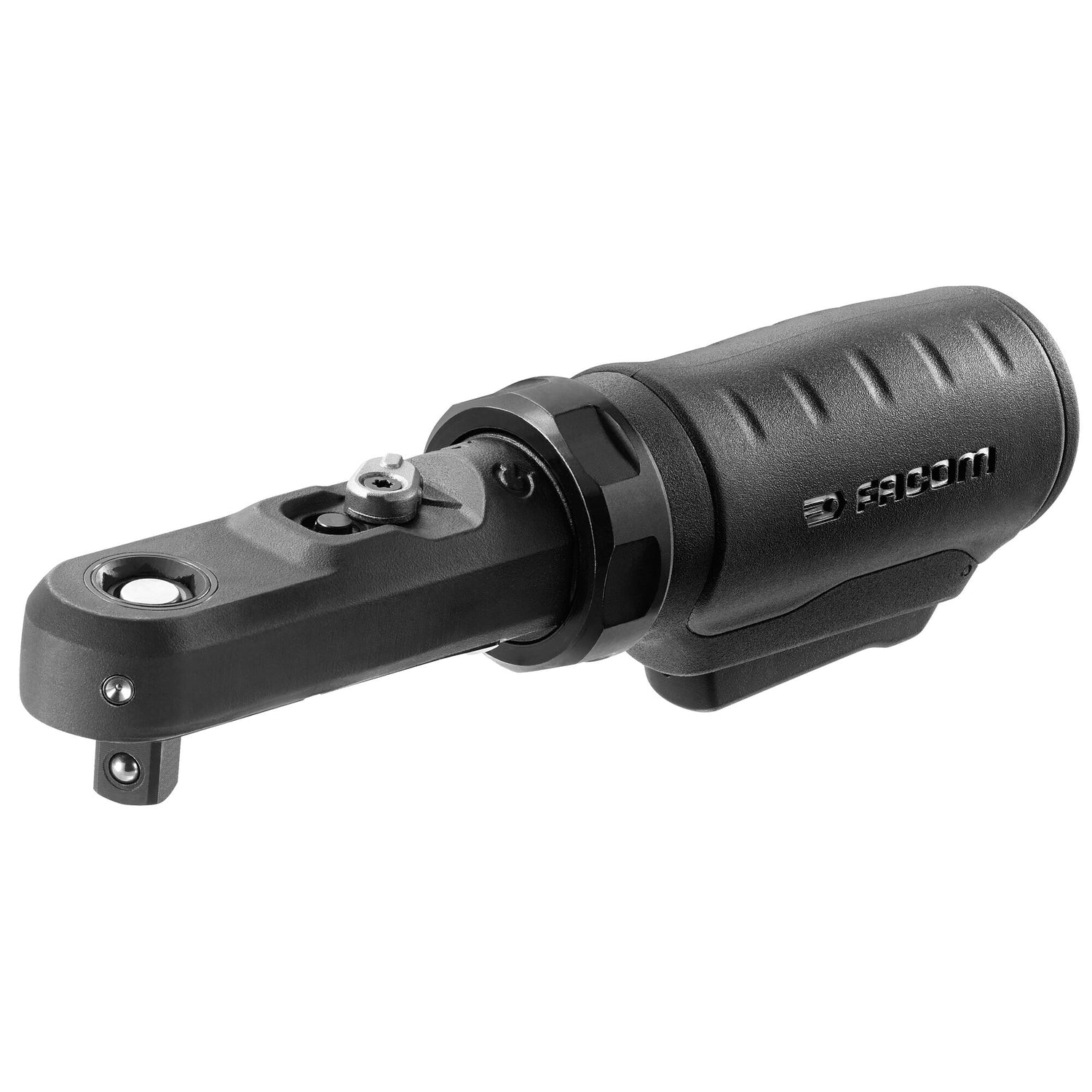

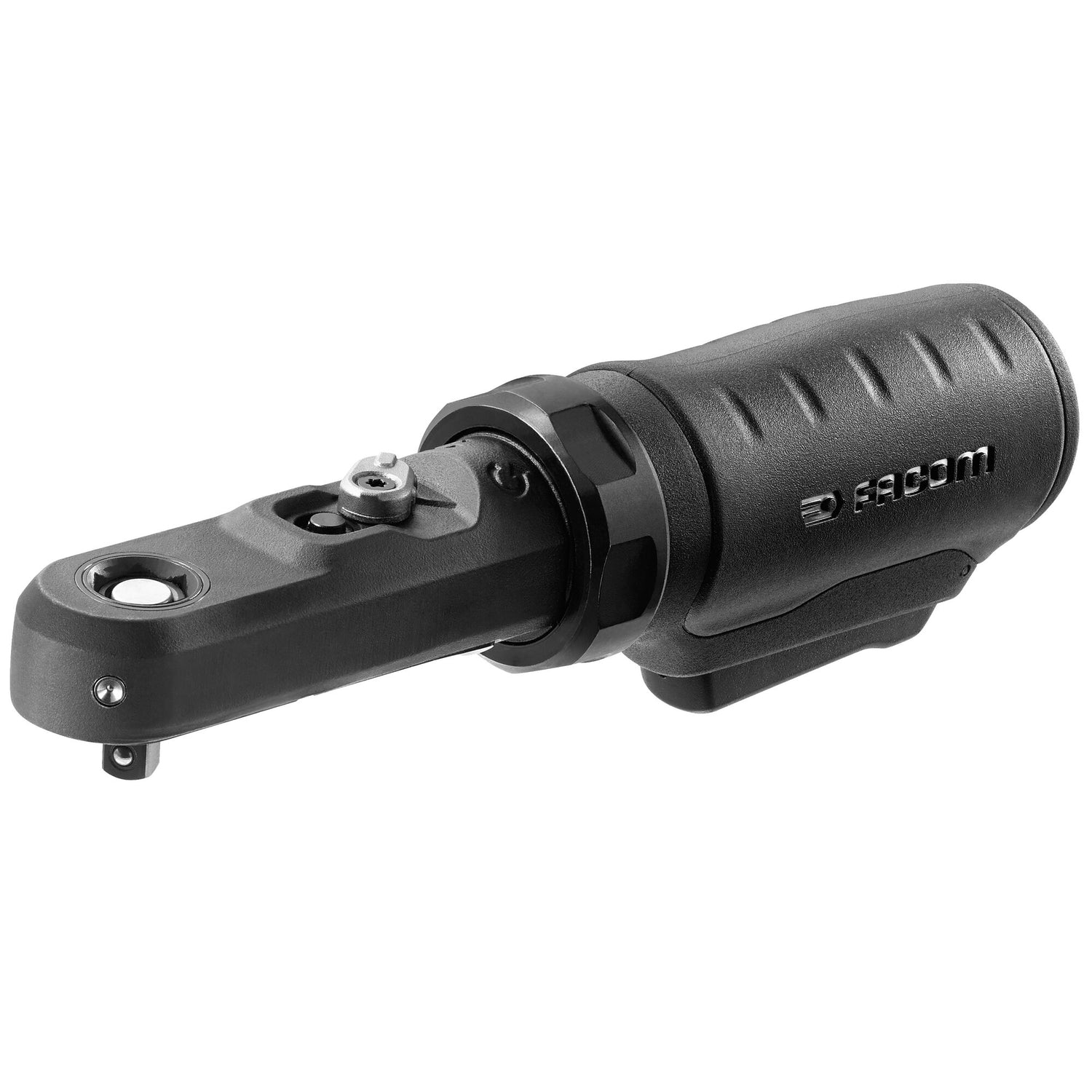

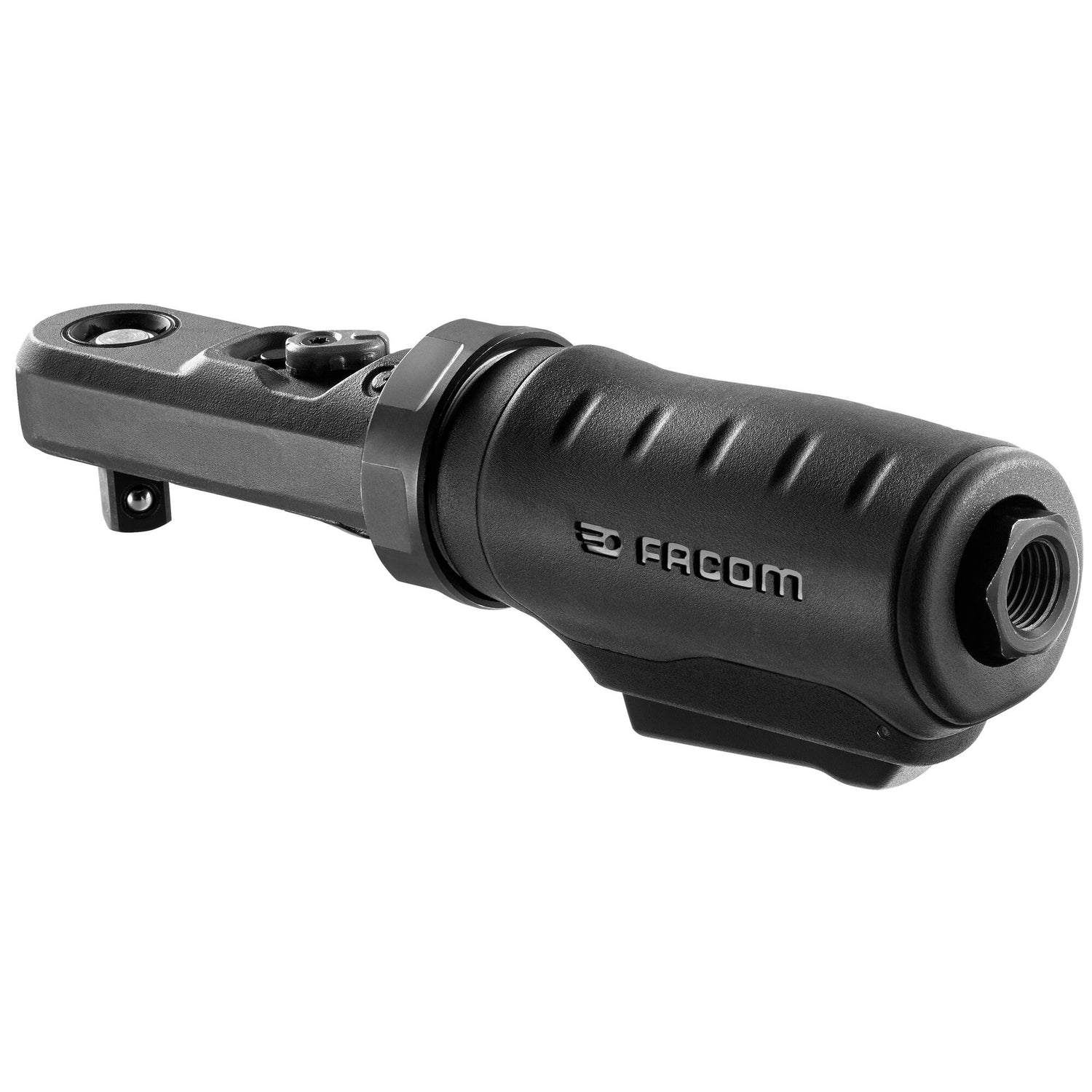

1/4 in. to 3/8 in. Compact Air Ratchet

SKU: VR.RJ2500PB - Barcode: 3662424156861

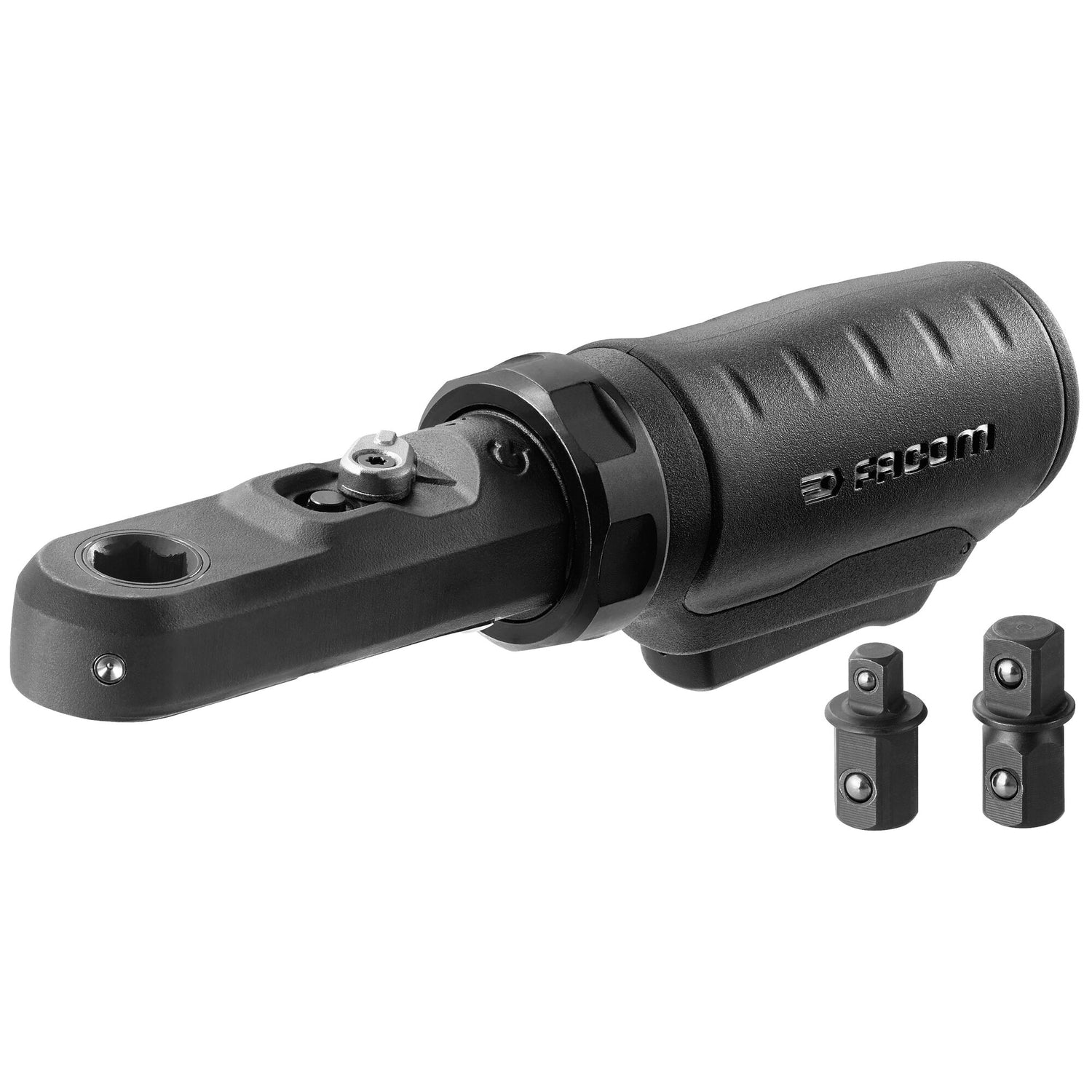

Interchangeable Anvils - Swap between ¼” and ⅜” anvils.

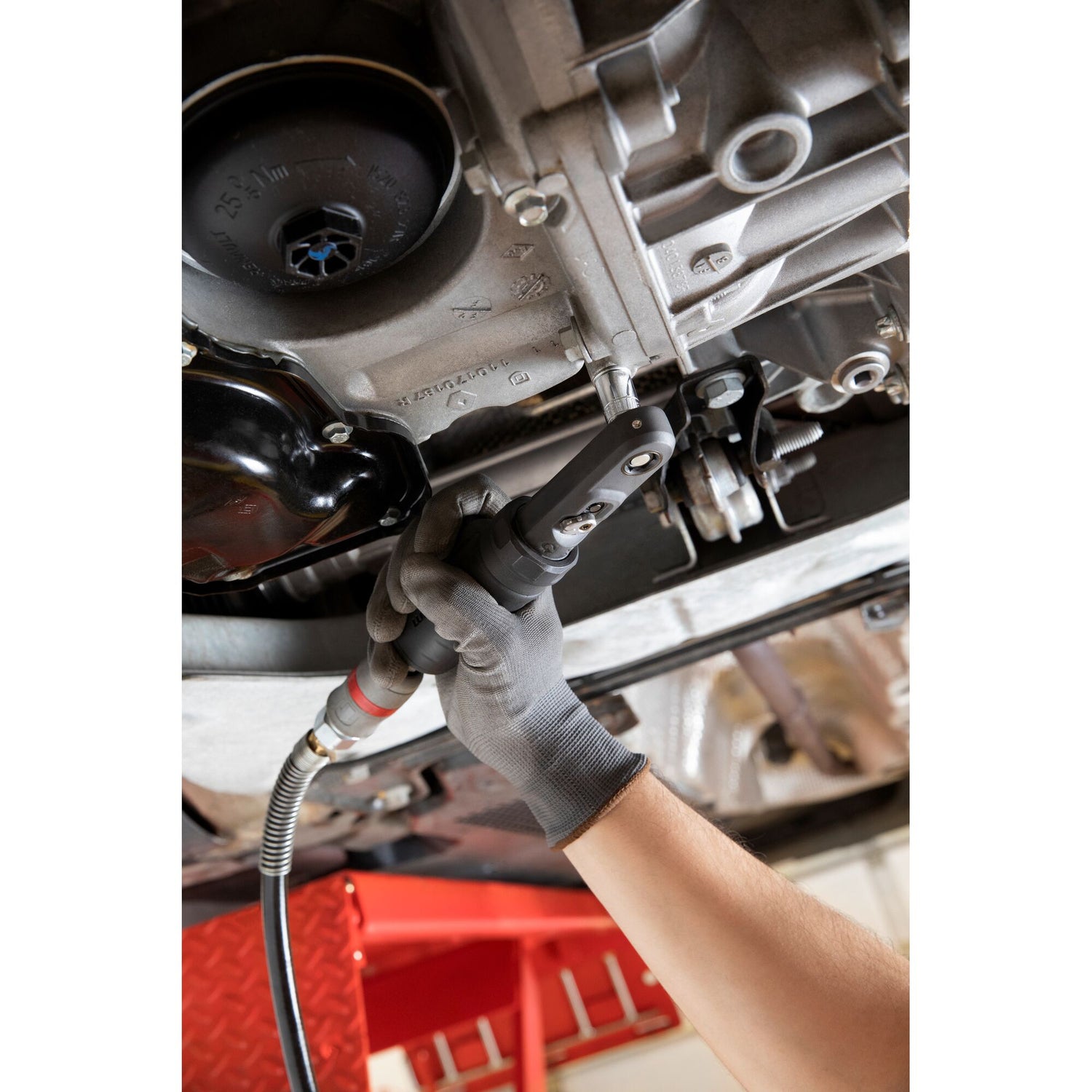

Improved Length - 185mm in length, easier to reach into confined or hard to reach spaces.
Sealed Head Design - Ratchet mechanism enclosed, significantly increases tool life.
Closed Trigger Design - Improvement over lever, prevents tool getting snagged on hoses.
Variable Trigger - Improves user control of application, makes it easier to protect tool, accessory, fastener and material.
Direction Switch - Conveniently placed near handle, easy direction reversal.
Ergonomic Hand Grip - Improves user comfort, easier to hold during applications.
Maximum torque 54 Nm (40 Ft. lbs).
Free speed 300 rpm.
Square drive 1/4"" or 3/8"".
Working pressure 6,2 bar (90 PSI).
Minimum hose diameter 10 mm (3/8”).

Full product description

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Interchangeable Anvils - Swap between ¼” and ⅜” anvils.
Improved Length - 185mm in length, easier to reach into confined or hard to reach spaces.
Sealed Head Design - Ratchet mechanism enclosed, significantly increases tool life.
Closed Trigger Design - Improvement over lever, prevents tool getting snagged on hoses.
Variable Trigger - Improves user control of application, makes it easier to protect tool, accessory, fastener and material.
Direction Switch - Conveniently placed near handle, easy direction reversal.
Ergonomic Hand Grip - Improves user comfort, easier to hold during applications.
Maximum torque 54 Nm (40 Ft. lbs).
Free speed 300 rpm.
Square drive 1/4"" or 3/8"".
Working pressure 6,2 bar (90 PSI).
Minimum hose diameter 10 mm (3/8”).

Specifications

Couple maximal54 Nm
Hauteur du produit40 mm
Longueur du produit185 mm
Largeur du produit40 mm
Marquage CEOui
Nombre de pièces3
Poids net0.7 Kg
Source d’alimentationPneumatique
Vitesse à vide (tr/mn)300

Spare parts

BLADE SET - 1004758-35
SCREW - N526362
SPRING - N526363
LEVER - N526364
CLIP - N526366
PIVOT BLOCK - N526367
CAM - N526368
COVERPLATE - N526370
GEAR - N526560
BUSHING - N526855
SPRING - N526859
PIN - N526863
GEAR - N528385
WASHER - N531825
DRIVE - N535074
DRIVE - N535075
GEAR - N537968
SPRING - N545422
LINK - N572675
NUT - N588215
WASHER SPRING - N588811
CARRIER - N589932
PAWL - N591668
PAWL - N591669
PLATE - N597902
NUT - N604393
O RING - N615372
RATING LABEL - N615955
HEAD SA - N632922
O RING - N638259
VALVE - N639389
HOUSING SA - N648935
GASKET - N658303
SCREW - N692671
MUFFLER - N892471

Documents

User manual
