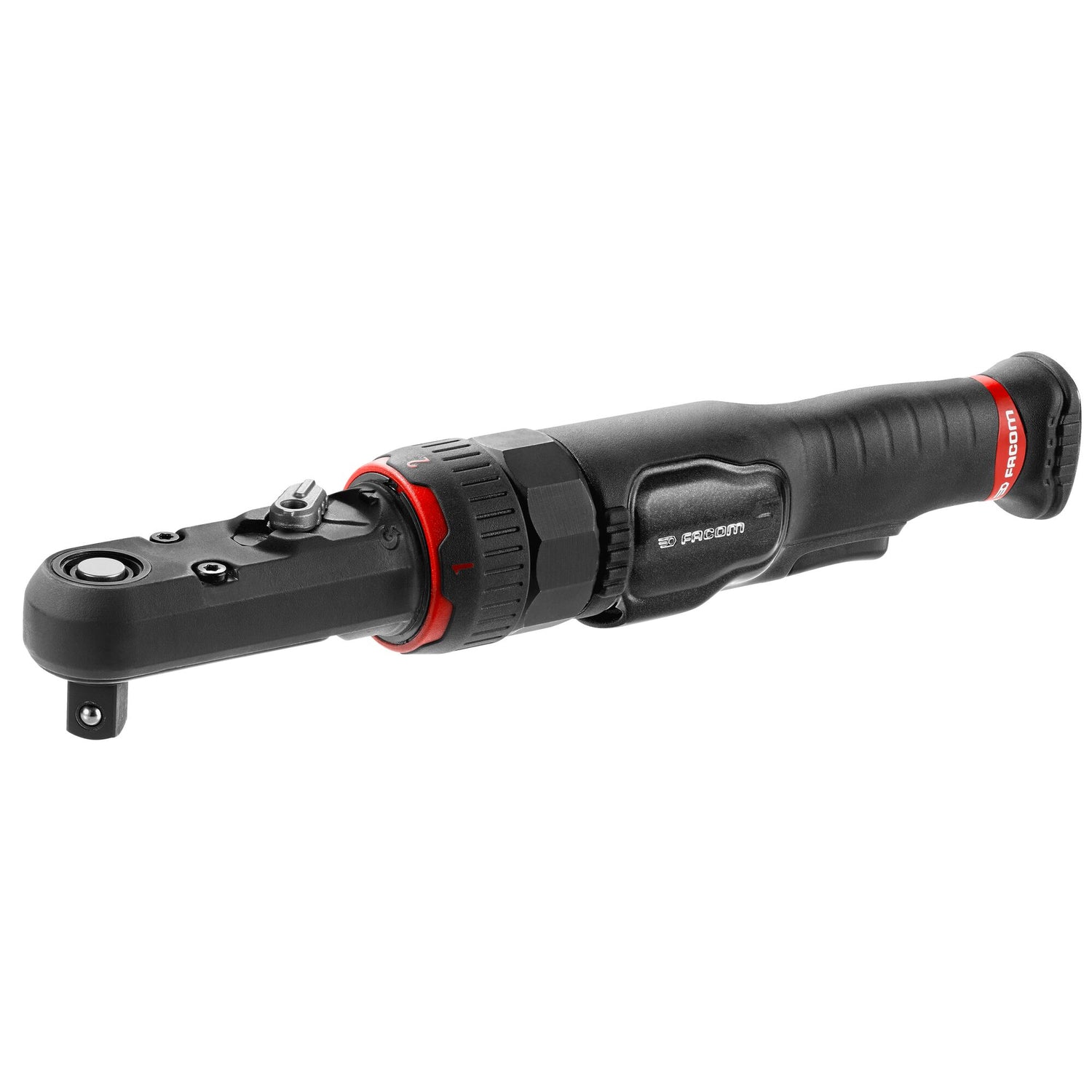

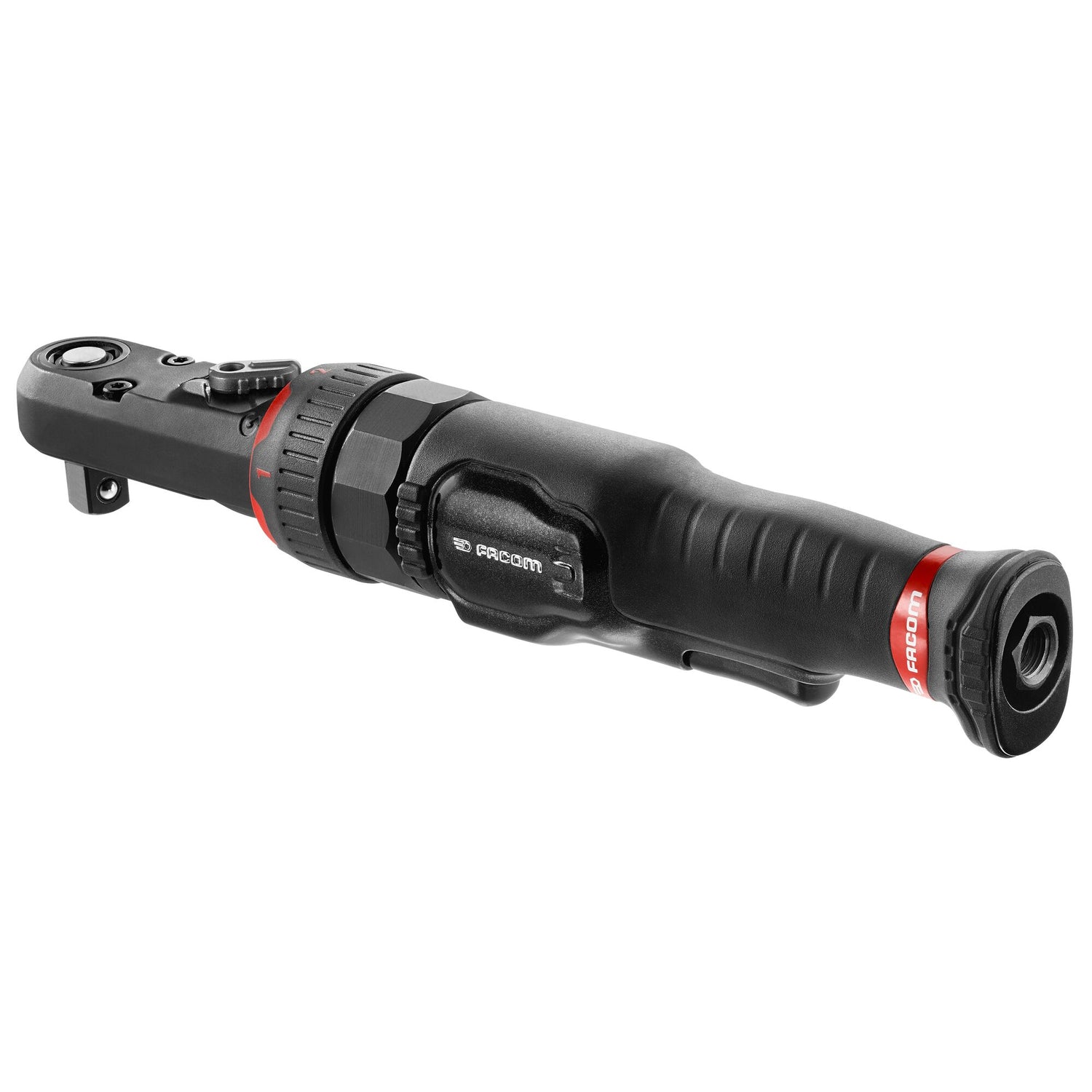

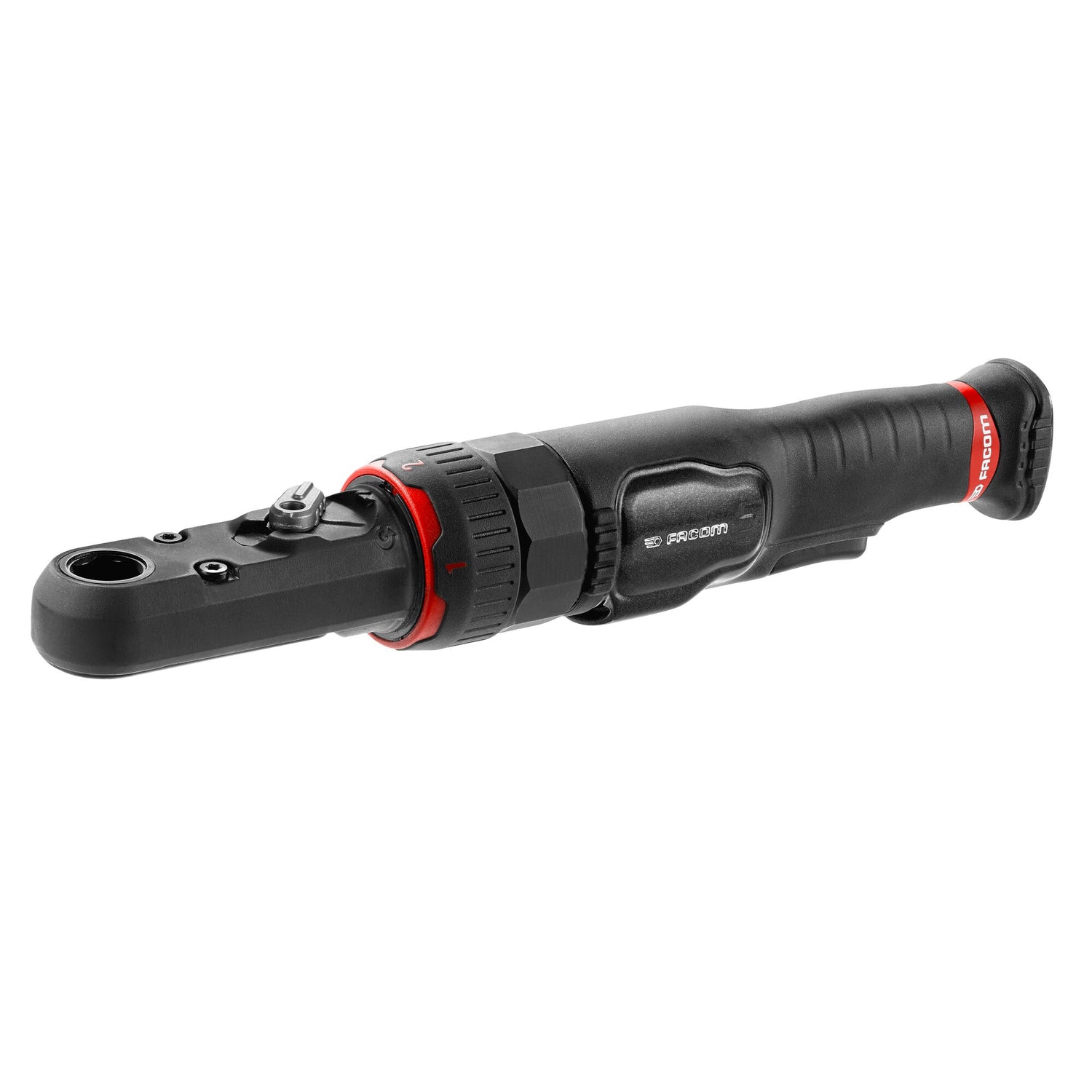

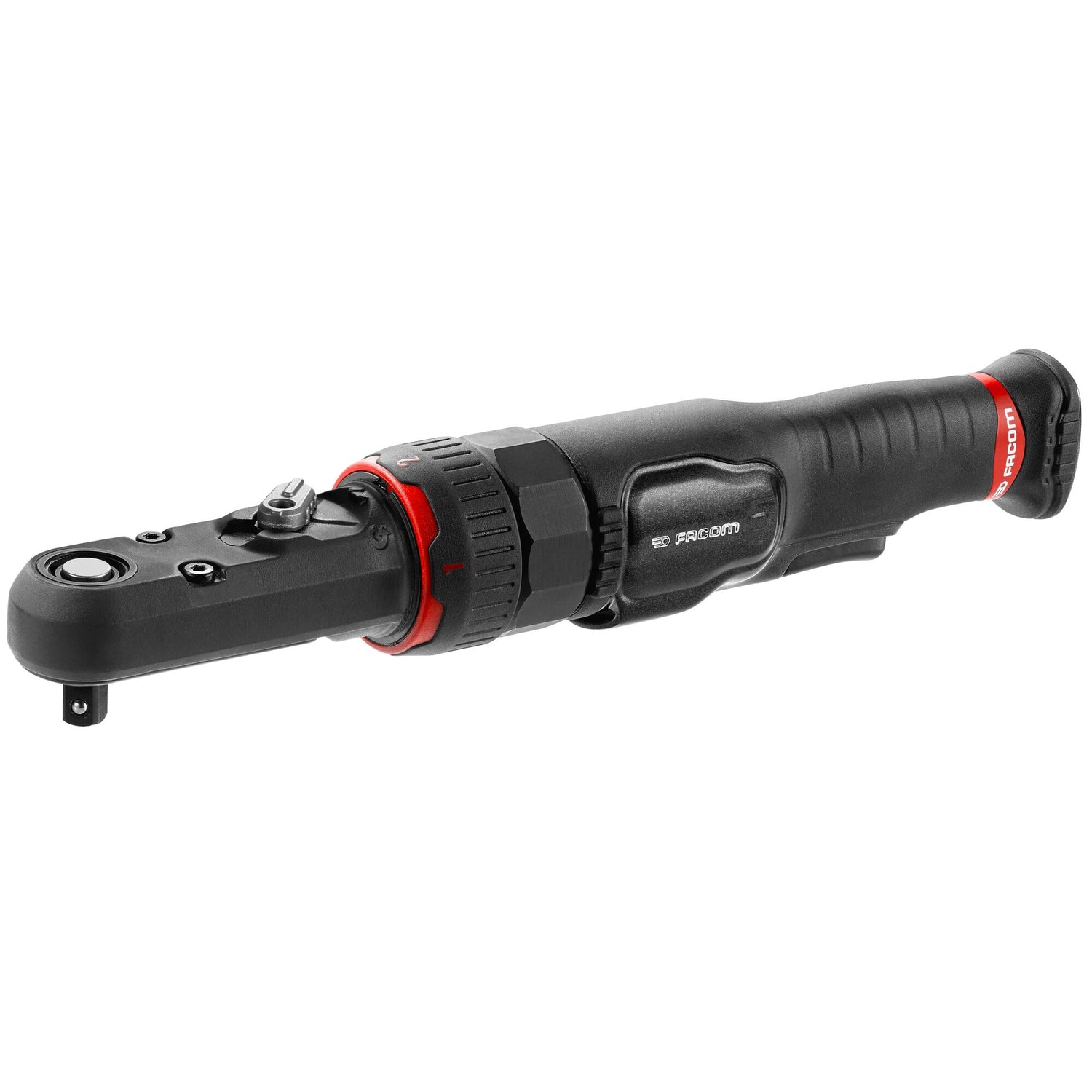

3/8 in. to 1/2 in. High Torque Air Ratchet

SKU: VR.SJ3500PB - Barcode: 3662424156854

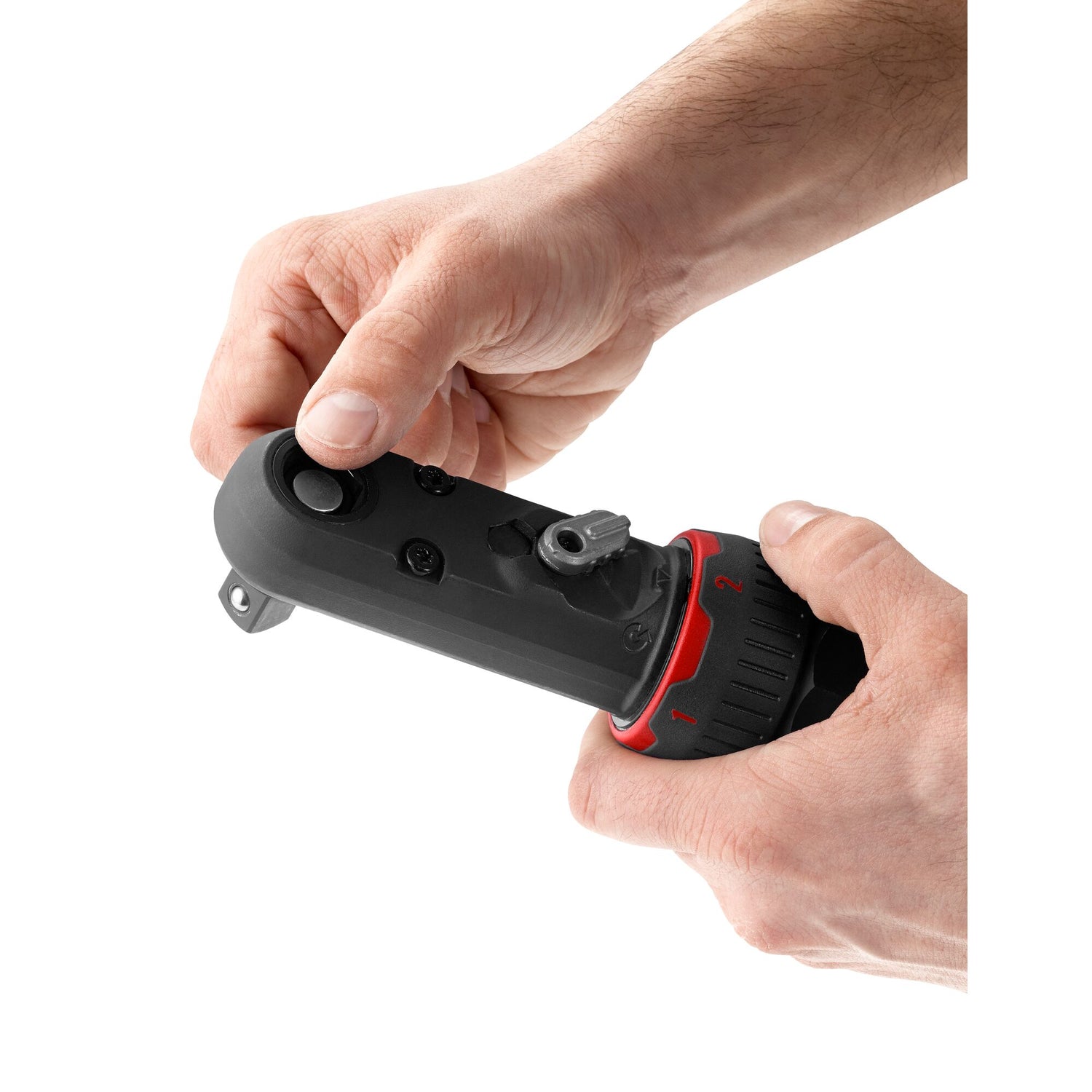

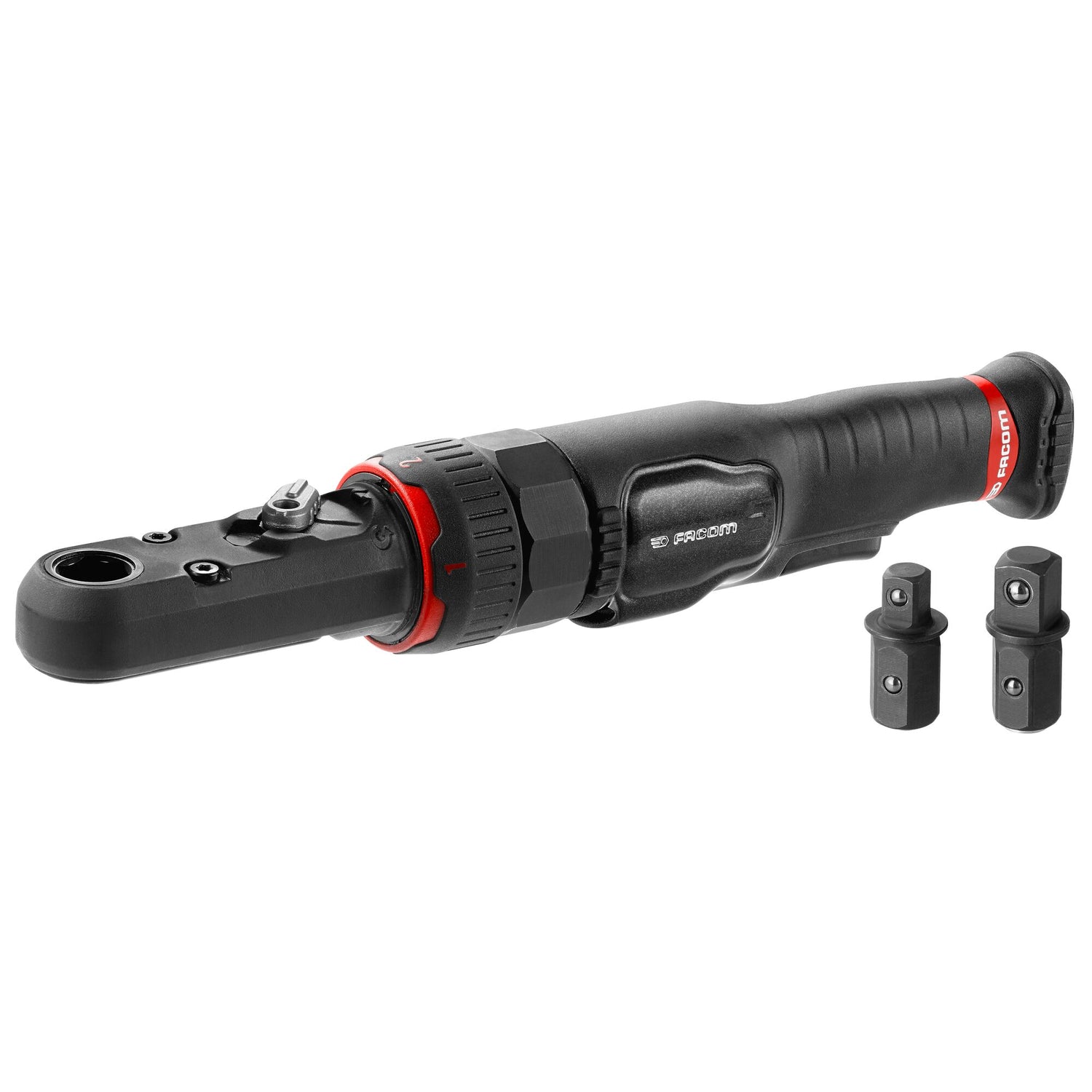

Interchangeable Anvils - Swap between ⅜” and ½” anvils.
Knuckle Saver Clutch - Worlds first ‘knuckle saver’, prevents user from hitting knuckles when fastening.
Sealed Head Design - Ratchet mechanism enclosed, significantly increases tool life.
Closed Trigger Design - Improvement over lever, prevents tool getting snagged on hoses.
Variable Trigger - Improves user control of application, makes it easier to protect tool, accessory, fastener and material.
Forward Exhaust - Air outlet aimed up directs airflow away from user.
Direction Switch - Conveniently placed near handle, easy direction reversal.
Ergonomic Hand Grip - Improves user comfort, easier to hold during applications.
Maximum torque 108 Nm (80 Ft. lbs).
Free speed 300 rpm.
Square drive 3/8"" or 1/2"".
Working pressure 6,2 bar (90 PSI).
Minimum hose diameter 10 mm (3/8”).

Full product description

Warranty

This product is: This product is covered by a 2-year warranty

Click here to learn more about our warranties.

Description

Interchangeable Anvils - Swap between ⅜” and ½” anvils.
Knuckle Saver Clutch - Worlds first ‘knuckle saver’, prevents user from hitting knuckles when fastening.
Sealed Head Design - Ratchet mechanism enclosed, significantly increases tool life.
Closed Trigger Design - Improvement over lever, prevents tool getting snagged on hoses.
Variable Trigger - Improves user control of application, makes it easier to protect tool, accessory, fastener and material.
Forward Exhaust - Air outlet aimed up directs airflow away from user.
Direction Switch - Conveniently placed near handle, easy direction reversal.
Ergonomic Hand Grip - Improves user comfort, easier to hold during applications.
Maximum torque 108 Nm (80 Ft. lbs).
Free speed 300 rpm.
Square drive 3/8"" or 1/2"".
Working pressure 6,2 bar (90 PSI).
Minimum hose diameter 10 mm (3/8”).

Specifications

Hauteur du produit60 mm
Longueur du produit318 mm
Largeur du produit60 mm
Marquage CEOui
Nombre de pièces3
Poids net1.6 Kg
Source d’alimentationPneumatique

Spare parts

COVERPLATE - 1004758-37
BLADE SET - 1004758-38
O RING - 86459
VALVE - N463044
INLET - N495010
PAWL - N509040
BUSHING - N509041
PAWL - N509042
PAWL - N509044
SCREW - N509045
SPRING - N509047
COVERPLATE - N509050
SCREW - N509057
CAM - N509059
LEVER - N509377
CARRIER - N525679
PIN - N525683
GEAR - N525721
PLATE - N530583
SPRING - N530607
WASHER - N530615
NUT - N532122
CAGE - N532952
SPRING - N533432
DRIVE - N535072
DRIVE - N535073
WASHER - N537426
SPRING - N537428
SPRING - N537484
COVERPLATE - N538287
STACKING RING - N538539
LINK - N547806
COLLAR - N561915
GEAR - N579075
GEAR - N580064
RATING LABEL - N615958
PIVOT BLOCK - N628713
HOUSING SA - N632923
O RING - N638268
O RING - N638609
GASKET - N648876
HANDLE SA - N648926
CAGE - N650014

Documents

User manual
